Kluson Tuner Tray question

Post by Frank James Pracher »

Does anyone have the dimensions of the route needed for the tray and tuners? Depth? (6 and/or 8 string)

Contemplating a project for next year..
"Don't be mad honey, but I bought another one"
Top
Robert Allen
Posts: 586
Joined: 16 Oct 2008 9:03 am
Location: Tennessee, USA

Post by Robert Allen »

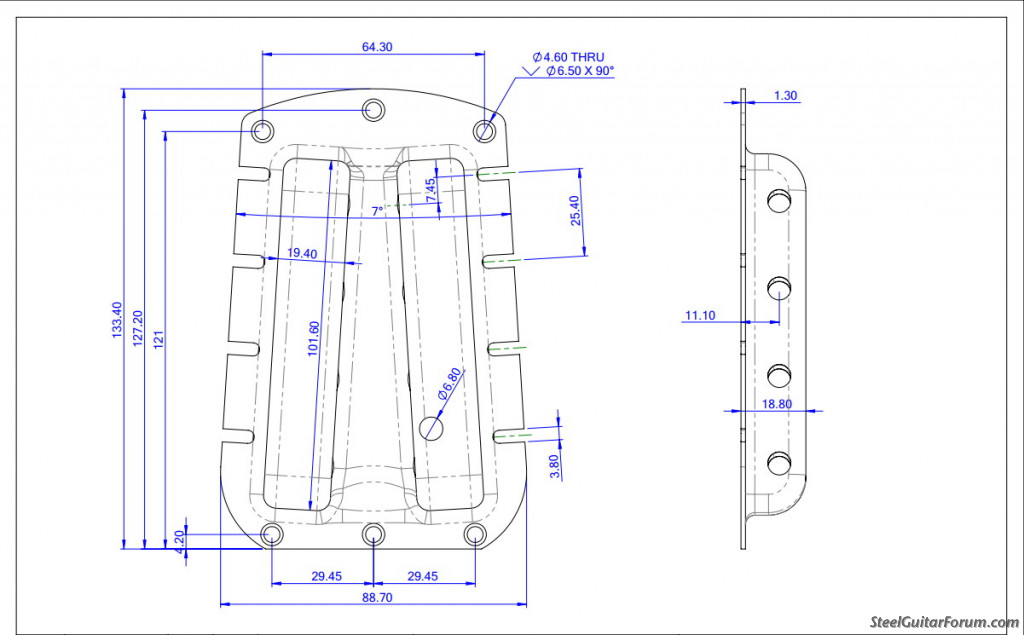

I don't have a drawing of the router template but this may help.

Top
User avatar
Bill Groner
Posts: 1394
Joined: 30 Dec 2016 8:42 am
Location: QUAKERTOWN, PA

Post by Bill Groner »

Robert Allen wrote:I don't have a drawing of the router template but this may help.

Dimensions are in Millimeters.
Currently own, 6 Groner-tone lap steels, 1953 Alamo Lap steel, (a gift from the late Stu Schulman) Recording King Phil Leadbetter Dobro, Roland Cube, Roland Mobile Cube, Fender Champion 40
