Dunlop hot pot wiring diagram

[Jimmy Gibson]

I am about to replace my old pot in my Goodrich volume pedal with a Dunlop Hot Pot And would be very grateful for a diagram of the connections.

Cheers.

[Jerry Overstreet]

http://www.gregcutshaw.com/Goodrich%201 ... 20Pot.html
There's this diagram w/the Dunlop pot further down the page.

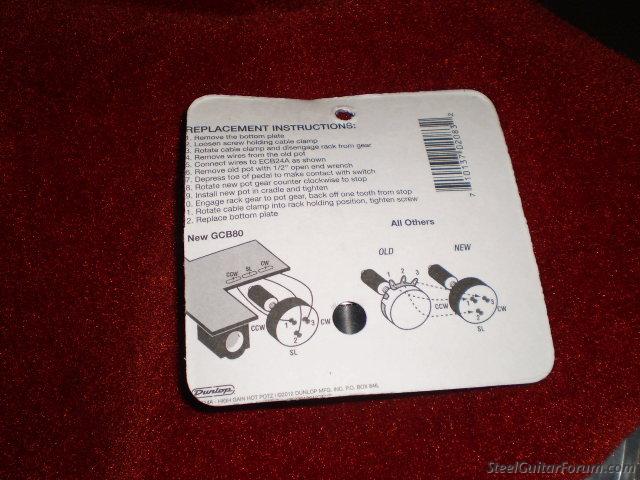

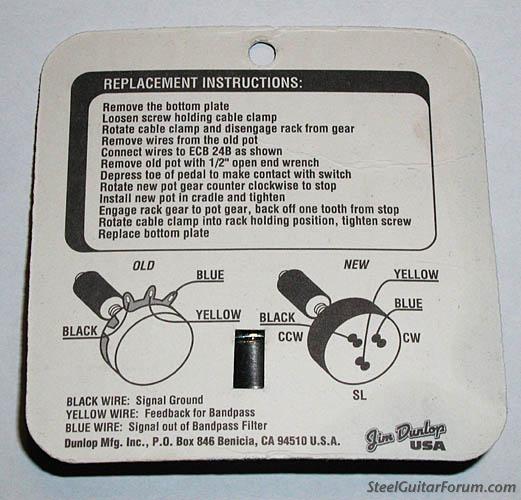

Here are a couple of diagrams from the Dunlop pkgs. HTH.
I know the wire colors are different but you should be able to match your wiring to the tabs.

[Jim Palenscar]

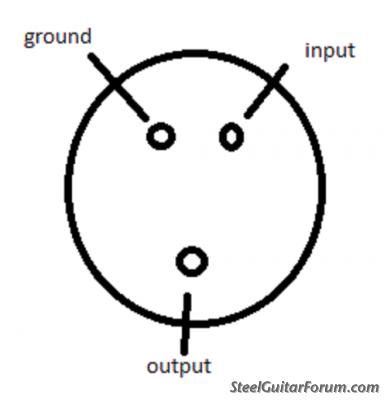

Here is what I'm used to thinking

[Jimmy Gibson]

Thank you so much,I am very grateful...



Cheers.Jimmy.
