Modding S10 E9 to have a 6th tuning?
Moderator: Dave Mudgett
- Adam Tracksler
- Posts: 574
- Joined: 30 Dec 2013 11:11 am
- Location: Maine, USA
- Contact:
Modding S10 E9 to have a 6th tuning?
I have a wonderful S10, it’s got 4 pedals. I didn’t know if I could repurpose the 4th pedal to put me into a 6th tuning. I know I could just restring it to be a C6, but wondering if anyone has done a 4th pedal to do this.
Thanks. Ad
Thanks. Ad
Last edited by Adam Tracksler on 6 Jul 2018 12:31 pm, edited 1 time in total.
-
- Posts: 6556
- Joined: 2 Oct 1998 12:01 am
- Location: Portland, OR USA
You already have alot of 6th tuning options on an standard S10.
You can hold the AB pedals down and you are in A6th, and C6th is in the 3rd fret.
If you lower your E's to Eb, you have C6th on fret 1, starting on string 10, just skip string 9.
Release the E to Eb lever and play string 9 to go to the 4-chord (4-seventh) which simulates the 6th tuning Pedal-6.
It might be cool to put the 6th tuning Pedal-7 function on your extra pedal.
You can hold the AB pedals down and you are in A6th, and C6th is in the 3rd fret.
If you lower your E's to Eb, you have C6th on fret 1, starting on string 10, just skip string 9.
Release the E to Eb lever and play string 9 to go to the 4-chord (4-seventh) which simulates the 6th tuning Pedal-6.
It might be cool to put the 6th tuning Pedal-7 function on your extra pedal.
-
- Posts: 1305
- Joined: 20 Aug 2003 12:01 am
- Location: Amarillo,Tx
-
- Posts: 273
- Joined: 2 Oct 2006 12:01 am
- Location: Alabama, USA
- Johnie King
- Posts: 9199
- Joined: 7 Apr 2014 11:09 am
- Location: Tennessee, USA
-
- Posts: 2990
- Joined: 17 May 2010 9:27 am
- Location: West Virginia, USA
Modding S10 E9 to have a C6th tuning?
If You go back to a post by Jack Wilson Sigler Pedal, dated 10 March 2013 here on the forum. Concerning Mike Sigler's 4th pedal (Sigler Pedal C6 voicing) he has on his guitar he flies to gigs with. You may want to contact Mr. Sigler and discuss this project with him. Mr. Sigler may have already figured it out for you. Good Luck and Happy Steelin.;
- b0b
- Posts: 29084
- Joined: 4 Aug 1998 11:00 pm
- Location: Cloverdale, CA, USA
- Contact:
I've gone the other way - modding a S-10 D6th tuning to get the E9th sounds. https://b0b.com/wp/?page_id=551#s10
-𝕓𝕆𝕓- (admin) - Robert P. Lee - Recordings - Breathe - D6th - Video
- Lee Warren
- Posts: 821
- Joined: 4 May 2003 12:01 am
- Location: Nashville, Tennessee, USA
-
- Posts: 273
- Joined: 2 Oct 2006 12:01 am
- Location: Alabama, USA
- Greg Cutshaw
- Posts: 6729
- Joined: 17 Nov 1998 1:01 am
- Location: Corry, PA, USA
- Contact:
As others have mentioned, a ton of 6th tuning positions are available by lowering the E strings and by engaging the A and B floor pedals. The idea to add the C6 7th pedal function is also excellent.
Even more really cool stuff is available if you engage pedal B with 1/2 pedal A! Split tuning pedal A helps a lot. Adding the E to Eb knee lever to this combo gives a full sounding diminished chord. Lowering string 9 a half tone gets you even closer to the pedal C6 tuning if your willing to learn some new grips.
All of these ideas are shown in chart form and through tab and sounds files here:
http://www.gregcutshaw.com/C6th%20On%20 ... 0E9th.html
Playing Night Life on the E9th tuning using the ideas presented above is shown here:
http://www.gregcutshaw.com/Night%20Life ... 0E9th.html
Here's a version of Sands played on the standard E9th tuning using only Pedals A, B, the E to Eb knee lever and a few bar slants:
http://www.gregcutshaw.com/Samples/Sand.mp3
Even more really cool stuff is available if you engage pedal B with 1/2 pedal A! Split tuning pedal A helps a lot. Adding the E to Eb knee lever to this combo gives a full sounding diminished chord. Lowering string 9 a half tone gets you even closer to the pedal C6 tuning if your willing to learn some new grips.
All of these ideas are shown in chart form and through tab and sounds files here:
http://www.gregcutshaw.com/C6th%20On%20 ... 0E9th.html
Playing Night Life on the E9th tuning using the ideas presented above is shown here:
http://www.gregcutshaw.com/Night%20Life ... 0E9th.html
Here's a version of Sands played on the standard E9th tuning using only Pedals A, B, the E to Eb knee lever and a few bar slants:
http://www.gregcutshaw.com/Samples/Sand.mp3
- Adam Tracksler
- Posts: 574
- Joined: 30 Dec 2013 11:11 am
- Location: Maine, USA
- Contact:
What would you use if you had 5 levers and 4 pedals? Which pedal and knee would you leave out?b0b wrote:I've gone the other way - modding a S-10 D6th tuning to get the E9th sounds. https://b0b.com/wp/?page_id=551#s10
I know I’m way out into uncharted (for me) territory.....
I also just consider selling the S10 Fessy and getting a Sierra 8 string......
-
- Posts: 171
- Joined: 23 Apr 2004 12:01 am
- Location: Los Gatos, California, USA
I can only say IMHO stay with 10 string E9th guitar. You can play anything that you can play on a 8 string plus lots more. It's really impossible for you, at this point, to know just what or how many changes you will need to play the music you want to play. You have to work that out over time. Jeff Newman always told the guys to "play what you got" and Lloyd Green said that when he added the E"s to F's change he had "all he needed to play music".
Henry
Henry
- b0b
- Posts: 29084
- Joined: 4 Aug 1998 11:00 pm
- Location: Cloverdale, CA, USA
- Contact:
b0b wrote:I've gone the other way - modding a S-10 D6th tuning to get the E9th sounds. https://b0b.com/wp/?page_id=551#s10
It's an interesting question. I'd probably do a S-10 4+5 hybrid D6th like this:Adam Tracksler wrote:What would you use if you had 5 levers and 4 pedals? Which pedal and knee would you leave out?
I know I’m way out into uncharted (for me) territory.....
I also just consider selling the S10 Fessy and getting a Sierra 8 string......
[tab]
LKL LKV LKR P1 P2 P3 P4 RKL RKR
E +F
F# +G
D +D# ++E ++E -C#
B ++C# +C/C#
A ++B -G#
F# --E +G
D +D# (-C#)
B +C
G ++A +G#
D ++E [/tab]
Imagine for a minute that your E9th string 2 was tuned to C#, and your half stop lever raised it to D and D# (like Weldon Myrick). Then imagine moving that string to be string 4 instead of string 2, so that your top 6 strings are F# G# E C# B G#. Then lower it all a full step to be based in D instead of E. That's how the hybrid D6th works. P1, P2 and all of the knee levers are standard E9th changes on the top 7 strings, but the strings they work on are tuned one step lower.
This tuning doesn't have the 7th and 10th strings of the E9th. It has the middle and low end intervals of the C6th instead. It's a hybrid, not a universal.
With just 4 pedals, you'd be missing the C6th P6, but you can get that essential change with P2+LKR and a tuneable split on the 6th string (which is what E9th players usually do anyway). It feels better on a pedal, but if you only have 4 pedals you can still have that functionality.
With only 4 pedals, it's totally missing C6th P8. The low P8 "boo-wah" changes could be added to LKL (the E9th "F Lever") if you really need them, but they would be better on another pedal.
The high half of the C6th P4 is there on RKR (string 4). I also have the 8th string full step raise with a half stop on my RKR, but it's pretty tricky getting strings 4 & 8 to half-stop in sync on most guitars.
On standard C6th there's a high C to B lowering lever. The equivalent E9th lever lowers both E strings to D#. So, on the hybrid D6th I lower both D's on RKL. I back out the nylon tuner if I'm playing a "mostly swing and jazz" gig.
I hope this explanation makes sense. In the hybrid approach, you don't have to hold a knee lever to switch from "E9th mode" to "C6th mode". You are always in a D tuning. You go to the leftmost pedals for E9th licks and the rightmost pedals for C6th licks. The knee levers are shared between the two approaches.
-𝕓𝕆𝕓- (admin) - Robert P. Lee - Recordings - Breathe - D6th - Video
- Adam Tracksler
- Posts: 574
- Joined: 30 Dec 2013 11:11 am
- Location: Maine, USA
- Contact:
- b0b
- Posts: 29084
- Joined: 4 Aug 1998 11:00 pm
- Location: Cloverdale, CA, USA
- Contact:
No, they're sort of in between E9th and C6th. My gauges are on the chart at https://b0b.com/wp/?page_id=551#s10. If you want a set, PM me. I've been going back and forth between GHS Cryogenics (nickel wound) and D'Addario NYXL. Both are available by the gauge. Can't make up my mind.
-𝕓𝕆𝕓- (admin) - Robert P. Lee - Recordings - Breathe - D6th - Video
- Larry Allen
- Posts: 1542
- Joined: 5 Apr 2004 12:01 am
- Location: Kapaa, Kauai,Hawaii
Set up

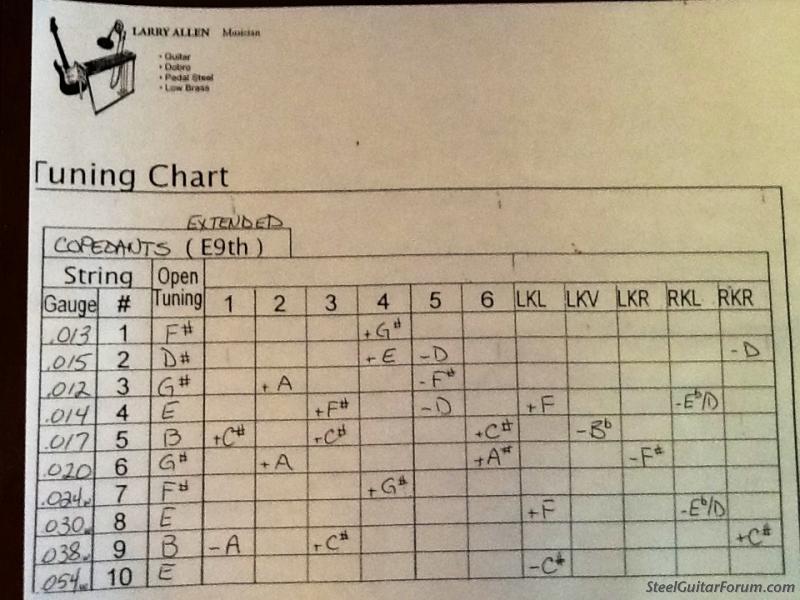

Hi Adam ..here’s one more 6/5..Ext 10 string E9..lots and lots of chords..
Larry



Excel steels & Peavey amps,Old Chevys & Motorcycles & Women on the Trashy Side
- Richard Alderson
- Posts: 623
- Joined: 12 Apr 2010 12:02 pm
- Location: Illinois, USA
10 String Extended
Dear Larry - I have always been intrigued by your 10 string extended tuning. Today I took a little closer look at your post. How long did it take you to get used to that copedant and play satisfactorily when you first adopted it? Not having the 9th string D, and having to substitute with the 8th string knee lever lower is a pretty big difference for me, I like just hitting that 9th string without any effort, and its always there. Is this still your primary tuning? I can understand most of it but I don't get what the 5th and 6th pedals are doing.
Thanks,
S. Richard Alderson
Thanks,
S. Richard Alderson
Derby SD-10 5x6; GFI S-10 5x5; GFI S-10 5x5; Zum D-10 8x7; Zum D-10 9x9; Fender 400; Fender Rumble 200; Nashville 400; Telonics TCA-500.
- Larry Allen
- Posts: 1542
- Joined: 5 Apr 2004 12:01 am
- Location: Kapaa, Kauai,Hawaii
Set up
Not trying to hijack your thread Adam...Richard, I played the standard E9 for a few years and was missing my ability to play all types of music away from the standard E9 approach so I made these changes..the RKL lowers the Es and getting the D is easy..the 5th pedal gives me an E7 with the low E on 10 and 8, the 6th pedal gives me a 6/9 with the Es lowered to Eb..(.C6 idea.) My A pedal lowers the 9th (B) down to A for a fuller 4 chord...my F lever lowers the 10th to C# so I get a nice fat D7 on the 1st fret or D with the A pedal added....yes this is my primary set up, Larry
