Post new topic Split tuning issue
Reply to topic
Author Topic:  Split tuning issue
Slim Heilpern


From:
Aptos California, USA
Post  Posted 22 Mar 2020 6:44 pm
Reply with quote

I've had a particular working split on my Williams 700 U12 E9/B6 for quite some time. Somewhere along the way something must have changed because today when I went for it, it was way out of tune and now it seems incapable of being tuned as currently configured. I'm aware of the tuning procedure for splits and have done it many times (but not needed very often as the axe just sits in my studio).

This is on the 6th string (G#) with the usual B pedal raise to A, and a lever lowering to F#. The split wants to produce a G.

Tuning the pedal (rod) and lever (split screw) work fine, but tuning the split (rod) down to the G is causing the open string to go sharp. IOW, shortening the lower rod is somehow forcing the open string sharp. New strings made no difference.

This is making my head spin a bit trying to imagine why this happens, especially when it didn't used to be this way and I've made no other changes to the instrument since last having tuned that split without issue.

Any ideas?

Thanks,

- Slim
_________________
Chromatic Harmonica, Guitar, and Pedal Steel (Williams U12 Series 700, Emmons lap)
http://slimandpenny.com
View user's profile Send private message Send e-mail Visit poster's website

Tom Dillon


From:
La Mesa, California, USA
Post  Posted 22 Mar 2020 7:16 pm
Reply with quote

Start here:
https://bb.steelguitarforum.com/viewtopic.php?t=326460&highlight=overtuning
View user's profile Send private message Send e-mail Visit poster's website

Slim Heilpern


From:
Aptos California, USA
Post  Posted 22 Mar 2020 7:45 pm
Reply with quote

Thank you Tom!
_________________
Chromatic Harmonica, Guitar, and Pedal Steel (Williams U12 Series 700, Emmons lap)
http://slimandpenny.com
View user's profile Send private message Send e-mail Visit poster's website

Mike Wilkerson


From:
Antioch California
Post  Posted 22 Mar 2020 9:31 pm
Reply with quote

Mickey Adams has an excellent YouTube video in detail of split tuning
_________________
ShoBud Pro III custom Rittenberry D-10 Nashville 400 with fox mods amp 1 volume pedal 1 Lil Izzy and 3 cords
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 22 Mar 2020 11:02 pm
Reply with quote

I haven't looked at Tom's YouTube link, but the way you tell it sounds like you've been trying to tune the full lever lower to F# before the split G instead of after.

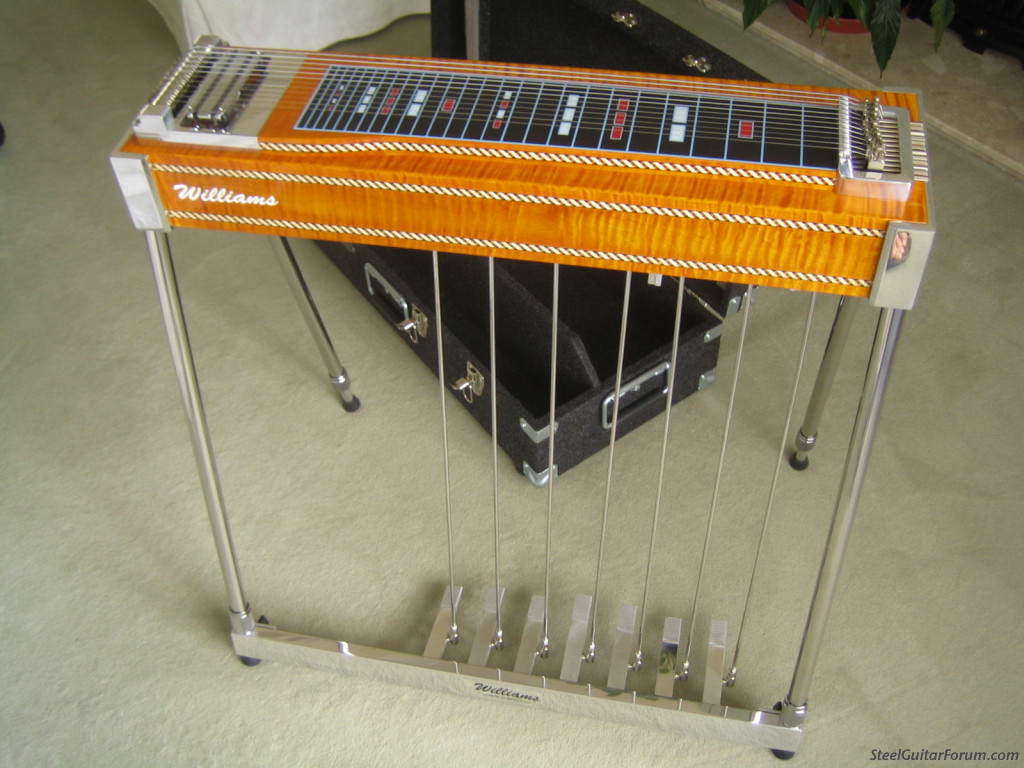

Great choice of guitar, btw!



_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Slim Heilpern


From:
Aptos California, USA
Post  Posted 23 Mar 2020 5:39 am
Reply with quote

Ian Rae wrote:
I haven't looked at Tom's YouTube link, but the way you tell it sounds like you've been trying to tune the full lever lower to F# before the split G instead of after.

Great choice of guitar, btw!



Thanks Ian, but that's not it in this case. I've actually tried it both ways -- same problem. I think Jon Light's post that Tom pointed to above on overtuning is probably the key, although I've no idea how this could have crept up on me without having changed anything. I'll be working on the axe today...

And yes, love the guitar -- yours looks mighty pretty too!

- Slim
_________________
Chromatic Harmonica, Guitar, and Pedal Steel (Williams U12 Series 700, Emmons lap)
http://slimandpenny.com
View user's profile Send private message Send e-mail Visit poster's website

Mike Perlowin


From:
Los Angeles CA
Post  Posted 23 Mar 2020 7:53 am
Reply with quote

I had a similar problem. To fix it, I loosened all the rods, retuned the string, and started retuning the rods from scratch. First the raise, then the split with the regular lowering rod, and finally yhe lower, with the split screw.

It works fine now.
_________________
MSA: Magnificent! Stupendous! Awesome!
-----------
Please visit my web site and Soundcloud page and listen to the music posted there.
http://www.mikeperlowin.com http://soundcloud.com/mike-perlowin
View user's profile Send private message Send e-mail Visit poster's website

Slim Heilpern


From:
Aptos California, USA
Post  Posted 23 Mar 2020 8:58 am
Reply with quote

Mike Perlowin wrote:
I had a similar problem. To fix it, I loosened all the rods, retuned the string, and started retuning the rods from scratch. First the raise, then the split with the regular lowering rod, and finally yhe lower, with the split screw.

It works fine now.


Thanks for the suggestion Mike. Actually that was the first thing I tried (and have tried several times since). But as soon as I tune the split with the lowering rod, the open string goes sharp. So, time to put it on the bench and try and give the rod some more play as described in Jon's 'overtuning' post...

- Slim
_________________
Chromatic Harmonica, Guitar, and Pedal Steel (Williams U12 Series 700, Emmons lap)
http://slimandpenny.com
View user's profile Send private message Send e-mail Visit poster's website

Slim Heilpern


From:
Aptos California, USA
Post  Posted 23 Mar 2020 10:09 am
Reply with quote

Solved! I was able to get closer by changing the pivot points to achieve more pull for the same lever travel. However, that didn't quite get me there and didn't explain why this used to work (until one day it didn't). I finally noticed that one of the 2 screws anchoring the base of the lever to the body had come loose, making the lever less effective. Tightening that screw fixed it.

Thanks for all the suggestions, learned a few things in the process Smile.

- Slim
_________________
Chromatic Harmonica, Guitar, and Pedal Steel (Williams U12 Series 700, Emmons lap)
http://slimandpenny.com
View user's profile Send private message Send e-mail Visit poster's website

Lee Baucum


From:
McAllen, Texas (Extreme South) The Final Frontier
Post  Posted 23 Mar 2020 10:40 am
Reply with quote

Hmm. Not one, but two screws loose.

You know, there's a joke in there somewhere!

Laughing

Glad you got it fixed.

Maybe Jon needs to add that to his most excellent post about overtuning.
_________________
Lee, from South Texas - Down On The Rio Grande

There are only two options as I see it.
Either I'm right, or there is a sinister conspiracy to conceal the fact that I'm right.


Williams Keyless S-10, BMI S-10, Evans FET-500LV, Fender Steel King, 2 Roland Cube 80XL's,
Sarno FreeLoader, Goodrich Passive Volume Pedals, Vintage ACE Pack-A-Seat
View user's profile Send private message Send e-mail

Doug Hall



From:
Alabama, USA
Post  Posted 23 Mar 2020 1:11 pm
Reply with quote

Love seeing these examples of problems solved, I'm learning a lot! Thanks for posting!
_________________
Mullen G2 SD10, Excel S10; Peavey 400s (LTD, Vegas, Session, and Renown); Nashville 112; etc...
View user's profile Send private message Send e-mail
