Post new topic cable lengths
Reply to topic
Author Topic:  cable lengths
Dan Yeago



From:
Virginia, USA
Post  Posted 2 Oct 2019 4:33 pm
Reply with quote

This one is for the pedal, console, and lap players: What lengths do you like to have the cables from the guitar to the volume pedal and from the pedal to the amp?

Thanks so much....dan
View user's profile Send private message Send e-mail

Jerry Van Hoose


Post  Posted 2 Oct 2019 6:25 pm
Reply with quote

I’ve always used a 3 ft. length of cable from guitar to volume pedal and 10 ft. length from volume pedal to amp.
_________________
Emmons, Fender, Strymon, BJS, Steelers Choice, Asterope
View user's profile Send private message Send e-mail

Donny Hinson



From:
Glen Burnie, Md. U.S.A.
Post  Posted 2 Oct 2019 6:26 pm
Reply with quote

Generally, you want them as short as possible. This is for two reasons: First, longer cables degrade the signal. A buffer will stop most of the frequency loss due to capacitance, but there is still signal loss due to resistance of the cable. So, it's best they're not too long. Second, long cables can propose a trip hazard,and they tend to get tangled sometimes. Therefore, the best advice, IMHO, is to keep them a reasonably short length.

That said, if there is a problem with too many highs, and you can't tame them any other way, a longer cable will have the affect of reducing treble response, somewhat.
View user's profile Send private message Send e-mail

Ron Hogan



From:
Nashville, TN, usa
Post  Posted 2 Oct 2019 7:28 pm
Reply with quote

Less is best

Last edited by Ron Hogan on 3 Oct 2019 5:18 am; edited 1 time in total
View user's profile Send private message

Stuart Tindall


From:
England, UK
Post  Posted 2 Oct 2019 9:53 pm
Reply with quote

You mean, 3 metres and 1 metre not 3 feet and 10 feet Laughing
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 3 Oct 2019 12:49 am
Reply with quote

I suspect that Americans are unaware of the twilight zone we live in here in the UK with two systems of measurement. Sheet timber is 8'x4' but battens are 2.4M which is an inch and a half short. Steel stock is metric, aluminium is imperial.

How long are my cables? No idea.
_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Jack Stoner


From:
Inverness, Fl
Post  Posted 3 Oct 2019 2:04 am
Reply with quote

We are talking audio cables, not RF cables that affect "standing waves" so specific lengths or multiples of length are not important.

But, I would keep them within reason, e.g. 3 ft (1 meter) or less from guitar to volume pedal and 10 to 15 ft to amp.
_________________
GFI Ultra D-10, Quilter Travis Toy 12 Amp, POD X3, MatchBro, Cakewalk Sonar and Studio One Pro V4.6 DAWs, MOTU 4pre
R.O.P.E. Member
View user's profile Send private message Send e-mail

Peter Harris



From:
South Australia, Australia
Post  Posted 3 Oct 2019 4:39 am
Reply with quote

Ian Rae wrote:
I suspect that Americans are unaware of the twilight zone we live in here in the UK with two systems of measurement. Sheet timber is 8'x4' but battens are 2.4M which is an inch and a half short. Steel stock is metric, aluminium is imperial.

How long are my cables? No idea.



Don't worry, after Brexit you'll be able to go back to feet and inches for everything again......

Laughing Laughing Laughing
_________________
If my wife is reading this, I don't have much stuff....really!
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 3 Oct 2019 5:41 am
Reply with quote

I voted to remain, but I hope we do!
_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Travis Wilson


From:
Johnson City, TX
Post  Posted 3 Oct 2019 3:52 pm
Reply with quote

Jack Stoner wrote:
We are talking audio cables, not RF cables that affect "standing waves" so specific lengths or multiples of length are not important.


As Donny Hinson mentioned, It does matter in electronics, the longer the length the bigger the gauge cable needed or you lose high end frequencies. On a guitar it probably doesn’t matter unless your cables are under 20AWG and over 10’ total length or something. I think 16AWG is standard? I would just buy the fattest cable you could find and not get one crazy long.

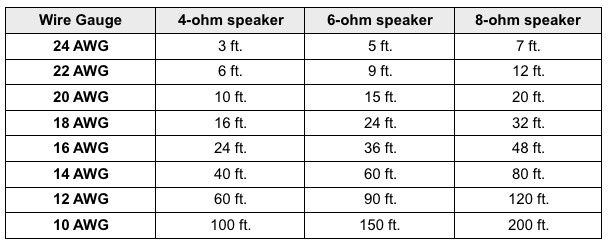

Here’s a rule of thumb chart.

View user's profile Send private message Send e-mail

Georg Sørtun


From:
Mandal, VA, Norway & Weeki Wachee, FL, USA
Post  Posted 3 Oct 2019 8:37 pm
Reply with quote

Travis, info about speaker cables are totally irrelevant in threads about instrument/line cables going into a load of 100K or more.

If buffers, active VPs and effect units are in-line those instrument/line cables' capacitance becomes pretty irrelevant too, as the low output impedance from such units means capacitance won't have an effect on audible signals after such units unless the cable is unrealistically long (>300ft or so).

Passive VPs vary the serial resistance, so cable capacitance and the amp's input impedance will have more of an effect on higher audible frequencies.

Typical cabling: 3ft / 1m from PU/instrument to reach first active unit or an active/passive VP on the floor, and 10 to 30ft / 3 to 10m to reach the amp's input. Should cover most cases.
View user's profile Send private message Send e-mail Visit poster's website

Ian Rae


From:
Redditch, England
Post  Posted 3 Oct 2019 11:32 pm
Reply with quote

There certainly doesn't appear to be a problem that needs solving.
As others have pointed out, when it comes to low impedances then length does start to matter. I use a rack system and the speaker cables are quite long but also quite fat. I haven't measured them but I trust the designers.
_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Dan Yeago



From:
Virginia, USA
Post  Posted 6 Oct 2019 10:52 am
Reply with quote

Thanks very much for posting. 3' and 10' were what I was guessing.
View user's profile Send private message Send e-mail

Godfrey Arthur


From:
3rd Rock
Post  Posted 11 Oct 2019 10:15 am
Reply with quote

Quote:
if there is a problem with too many highs, and you can't tame them any other way, a longer cable will have the affect of reducing treble response, somewhat.


Yes, Hendrix used 30 foot coiled cables to get his tone and it tamed his Strat coils to come out sounding like humbuckers in a Les Paul.




_________________
ShoBud The Pro 1
YES it's my REAL NAME!
View user's profile Send private message

Ken Byng


From:
Southampton, England
Post  Posted 11 Oct 2019 10:37 am
Reply with quote

Peter Harris wrote:
.........Don't worry, after Brexit you'll be able to go back to feet and inches for everything again......

Laughing Laughing Laughing


Yep that's right Peter. Also we can return to pounds and ounces, and pints and gallons. Not long to go thank goodness. Very Happy Very Happy

How long are my cables? I have one long one and one short one. Works for me. Laughing
_________________
Show Pro D10 - amber (8+6), MSA D10 Legend XL Signature - redburst (9+6), Infinity SD10 (4+5) Sho-Bud Pro 111 Custom (8+6), Emmons black Push-Pull D10 (8+5), Zum D10 (8x8), Hudson pedal resonator. Telonics TCA-500, Webb 614-E,
View user's profile Send private message Send e-mail

David Ball


From:
North Carolina High Country
Post  Posted 11 Oct 2019 1:30 pm
Reply with quote

Back in the days when I had my Morris Minor and my MGA, I had to have 3 sets of wrenches to work on them. SAE, Metric and Whitworth. Whitworths were hard to find here in the states. I was using 30 foot coiled cords in those days with a Fender Jazz Bass (to keep it on topic). Sounded pretty close to a 10m coiled cord to my ears.

Dave
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 11 Oct 2019 3:49 pm
Reply with quote

It's the same deal over here with wrenches, or spanners as we call them. I had a Ford in the 80s and the transmission bell housing had metric bolts round the top and Whitworth round the underneath.
To stay vaguely on topic, I have to have metric tools for my Excel and proper ones for my Williams. I keep them strictly separate!
There's something solid and elegant about a good old-fashioned #10-32 screw. The metric 5mm equivalent looks and feels cheap and nasty to me.
_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website
