Author Topic:  Deluxe Blend Pot
Leon Grizzard


From:
Austin, Texas, USA
Post  Posted 8 Jul 2019 2:59 pm
Reply with quote

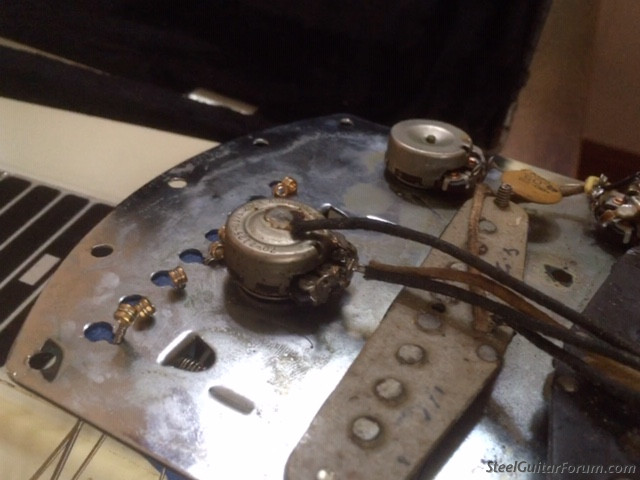

I bought a Deluxe 8 with a fairly rough appearance. I loaned it a young friend and he reported the bridge pickup cut out when he would anchor his hand on part that sticks out beyond the strings, and sure enough, it does. I took off the control plate to see if there could be some dodgy connection that could be affected by the pressing down. I don't see anything obvious, but all that is maybe the subject of future questions.

I sprayed out the tone and volume pots with electronics cleaner, but they just don't have much usable sweep, and so I thought I might replace them, kind of as a junior practical electronics project, and I am not going to devalue the guitar. (I have wired a few Teles and want to get more understanding of the circuitry and soldering experience.)

My question is about the blend pot. When I look at replacement pots, they all have two rows of lugs, but the pot in my instrument just looks like a three lug 250k audio pot. Can someone please explain?


View user's profile Send private message Send e-mail
Joe Major


From:
Florida, USA
Post  Posted 9 Jul 2019 7:09 am     Deluxe blend pot.
Reply with quote

Guess I'll chime in since no great minds have answered yet. Here's a link to the a wiring diagram:
Picture file
The "blend" pot on the Stringmaster isn't what's called a blend pot nowadays. Instead it's a regular pot wired to both pickups. Hope this helps.
Mr. Grizzard, I've appreciated your western swing guitar playing and your online lessons. I'm a little better player because of you. Thanks.
Joe
_________________
"Good judgement comes from experience, and experience comes from...poor judgement."

'54 Fender D-8 Dual Pro, Magnatone G-65-W6, Tweed 5F1 Champ
View user's profile Send private message Send e-mail
Leon Grizzard


From:
Austin, Texas, USA
Post  Posted 9 Jul 2019 8:22 am
Reply with quote

Joe - Thank you so much, on both counts. I really appreciate hearing my videos have helped someone, and that I correctly identified a 250k audio pot.
View user's profile Send private message Send e-mail
Jeff Highland


From:
New South Wales, Australia
Post  Posted 9 Jul 2019 8:53 am
Reply with quote

Yes that's right its a standard 250k audio pot.
This is because the pickups are wired in series rather than in parallel. A standard blend pot is used where blending pickups in parallel as is standard in most Guitars.
View user's profile Send private message Send e-mail
Nic Neufeld


From:
Kansas City, Missouri
Post  Posted 9 Jul 2019 1:21 pm
Reply with quote

Agreed and it is a one way blend, as well...from bridge on to bridge+neck (in series), most modern blends are as described, each pickup fully on by itself with the middle being both on in parallel.

The Stringmaster wiring is a lot like a single humbucker with a coil split...one coil (neck) sent straight to ground and bypassed, except instead of a on-off switch it is a potentiometer that applies the split gradually...

I seem to always keep mine on full on, both pickups in series! Smile
_________________
Waikīkī, at night when the shadows are falling
I hear the rolling surf calling
Calling and calling to me
View user's profile Send private message Send e-mail
Leon Grizzard


From:
Austin, Texas, USA
Post  Posted 20 Jul 2019 1:49 pm
Reply with quote

Thanks again, all y’all, for your help. I replaced all three pots, tone cap, and output jack. I’m pleased to report everything works, and the pickup that had been cutting out seems to be fine.

Everything I do like this, that seems like it ought to take half an hour, always takes me three hours, but it gets a little better each time.
View user's profile Send private message Send e-mail
Jim Sliff


From:
Lawndale California, USA
Post  Posted 31 Jul 2019 10:54 am
Reply with quote

Like Nic said, they really are not "blend" pots or systems.

I prefer calling them "insertion circuits" to avoid confusion with normal 6-lug blend pots..
_________________
No chops, but great tone
View user's profile Send private message Send e-mail Visit poster's website
