Post new topic Flynn Steel by Fred Layman
Reply to topic
Author Topic:  Flynn Steel by Fred Layman
George Geisser


From:
Branson, Missouri, USA
Post  Posted 13 Feb 2019 3:23 pm
Reply with quote

So I've found an incomplete D10 Flynn steel that was never completed. The blonde Birdseye necks and body are flawless. It has 20 grovers, only changer for one neck minus pull rod changer fingers. Missing everything underneath, missing legs but has pedal bar and pedals. In new case $150!!
What are your thoughts? I'm certain that I could mechanically finish but am wondering if there are any Flynn owners or parts available


Last edited by George Geisser on 16 Feb 2019 6:19 pm; edited 1 time in total
View user's profile Send private message Send e-mail
Johnie King


From:
Tennessee, USA
Post  Posted 13 Feb 2019 3:59 pm
Reply with quote

The case is worth $150 very good deal I wish I could find deal like that congratulations
View user's profile Send private message Send e-mail
Rick Trolinger


From:
Grove City, Ohio
Post  Posted 13 Feb 2019 6:13 pm
Reply with quote

I've got a Flynn guitar and I like mine. It's a bit heavy, but plays well and stays in tune. I've never had a problem with it.
View user's profile Send private message Send e-mail
John De Maille


From:
On a Mountain in Upstate Halcottsville, N.Y.
Post  Posted 13 Feb 2019 10:53 pm
Reply with quote

Harold Flynn used a lot of RusLer parts for his steels and I believe Fred did too.
You might want to contact Chuck Back, the builder of Desert Rose steels. He started using a lot of those parts in the beginning of his business. He could probably help you out. He's a great guy and a great builder.
View user's profile Send private message Send e-mail
George Geisser


From:
Branson, Missouri, USA
Post  Posted 16 Feb 2019 6:22 pm
Reply with quote

Rustler pedals for sure! Thanks
View user's profile Send private message Send e-mail
George Geisser


From:
Branson, Missouri, USA
Post  Posted 17 Feb 2019 7:46 am
Reply with quote

View user's profile Send private message Send e-mail
Jerry Overstreet


From:
Louisville Ky
Post  Posted 17 Feb 2019 8:33 am
Reply with quote

Have you tried contacting Fred? Far as I know, he's still somewhere around Springfield Mo. and is a member here although he hasn't posted here for a bit.

He may be able to help direct your search for parts etc.
View user's profile Send private message
George Geisser


From:
Branson, Missouri, USA
Post  Posted 17 Feb 2019 9:03 am
Reply with quote

Yes that's how I wound up with the steel. Unfortunately he passed away and the steel ended up in the Music store where I purchased it.
View user's profile Send private message Send e-mail
Jerry Overstreet


From:
Louisville Ky
Post  Posted 17 Feb 2019 9:10 am
Reply with quote

Fred passed away? I have not heard that. We had a scare here a couple years ago that someone had erroneously posted but I have not heard anything recently.
View user's profile Send private message
George Geisser


From:
Branson, Missouri, USA
Post  Posted 17 Feb 2019 10:24 am
Reply with quote

The obit says he died March the 9th 2018 at 86 yrs of age. He had moved and remarried after his first wife died. I didn't know him but believe my buddies Jerry Menoun and Mike McGee did.
View user's profile Send private message Send e-mail
Alan Rudd


From:
Ardmore, Oklahoma
Post  Posted 19 Feb 2019 5:24 am
Reply with quote

Jump! I owned one of these years ago, and it was a very fine instrument. It was a 12 string or I would have kept it. I beieve Russler would be the way to find parts as Mr. Flynn built Russlers at one time, if I am not mistaken.
View user's profile Send private message Send e-mail Visit poster's website
George Geisser


From:
Branson, Missouri, USA
Post  Posted 20 Feb 2019 3:52 am
Reply with quote

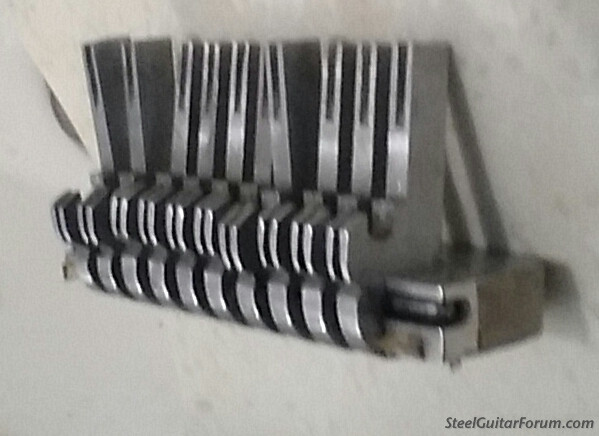

Unfortunately this is all of the changer and I could use some help in the way of pictures to understand and complete the pull pull fingers. How they are attached and grounding points. Thanks guys
View user's profile Send private message Send e-mail
Bob Carlucci


From:
Candor, New York, USA
Post  Posted 20 Feb 2019 5:23 am
Reply with quote

Personally if I had that guitar which is a beauty, I would call a few modern builders and have a couple of current all pull changers installed either by the builders or someone like Jim Palenscar that understands the way the changer needs to be supported in the body, height from the deck of the guitar etc.. I would not hamstring myself with a pull release changer if I had to do a complete outfitting anyway.. get good modern stuff under there... bob
_________________
I'm over the hill and hittin'rocks on the way down!

no gear list for me.. you don't have the time......
View user's profile Send private message Send e-mail
Doug Earnest


From:
Branson, MO USA
Post  Posted 20 Feb 2019 12:23 pm
Reply with quote

Sell it to Johnnie King and quit while your are ahead.
View user's profile Send private message Send e-mail
Paul Redmond


From:
Illinois, USA
Post  Posted 23 Feb 2019 7:33 pm
Reply with quote

FWIW Harold's guitar changer and pulling system were patented and there were some good drawings which will show how the changer was designed. Fred Layman worked with Harold and a Kentucky patent lawyer to try to get a patent. They only came up with 4 claims. And, they rejected the application. The Flynn changer was basically built upside-down (the patent drawings will bear this out). From the right end, the changers looked no different than any other. Harold about cried because he knew his changer was definitely different than all others. Yes, he did buy RusLer, and in 1989 would buy out BosSan and all Harold Spain's machinery, tools, and materials. I was living in NC at the time his application was rejected. He called me up one day and wanted to know if I could go over his rejected patent and find out what to do to make it fly. He mailed me a copy overnight and I spent the next 3 days and evenings re-working everything. The patent lawyer really had a lot of stuff screwed up on it. In one view, he would have one ID number on a part, and in another view, he'd give that part a different number. That's a no-no. When the KY lawyer rec'd what I had written and corrected, he sent it to a Washington DC-based fellow lawyer who said that if the "new" application was submitted, it would be considered a new submission because so much had been changed from the original. So they cut a whole bunch of stuff out of my "new" application and inserted that stuff into the original application, then re-submitted the application before the deadline. I had provided 8 claims instead of the original 4. I have a feeling that's what made it fly. He received a patent. There weren't many Flynn's out there, so you have a rare piece. When Harold died, Fred Layman took over everything including a half-finished BosSan D-10. Fred dragged it around from pillar to post for years before emailing me to see if I wanted it and would actually finish it. It took 11 months, but I did finish it. It can be seen on the Forum under "The Last BosSan" thread. It was a lot of work, but the results were great. It's a heavy guitar and I don't take it out very often. I also don't want people getting too near the gorgeous lacquer!!!
The price was right. IMO it would be well worth the hours spent completing it. You may want to seek out other Flynn owners to get info like leg lengths and that sort of thing. That BosSan came to me with no legs or any of that stuff. The endplates were covered in masking tape. That allowed little "worms" to form on the shiny metal, so all those areas had to be touched up on the buffer. Harold Flynn's late wife died of Alzheimer's about 4 months after Harold died. At the time Harold died, when they told her about it, she didn't know anybody named Harold!!! She had a daughter living in the same neighborhood, but I never met her and don't know her name. BTW all the notes and drawings and records for the BosSan evaporated when Harold died. I would suspect the prints of the Flynn met the same demise. By trade, Harold was an architectural engineer, so prints and drawings were second nature to him.
Good luck on the project. You might get a bit frustrated at times, but never give up!!!
PRR
View user's profile Send private message Send e-mail
Ian Worley


From:
Sacramento, CA
Post  Posted 24 Feb 2019 12:26 am
Reply with quote

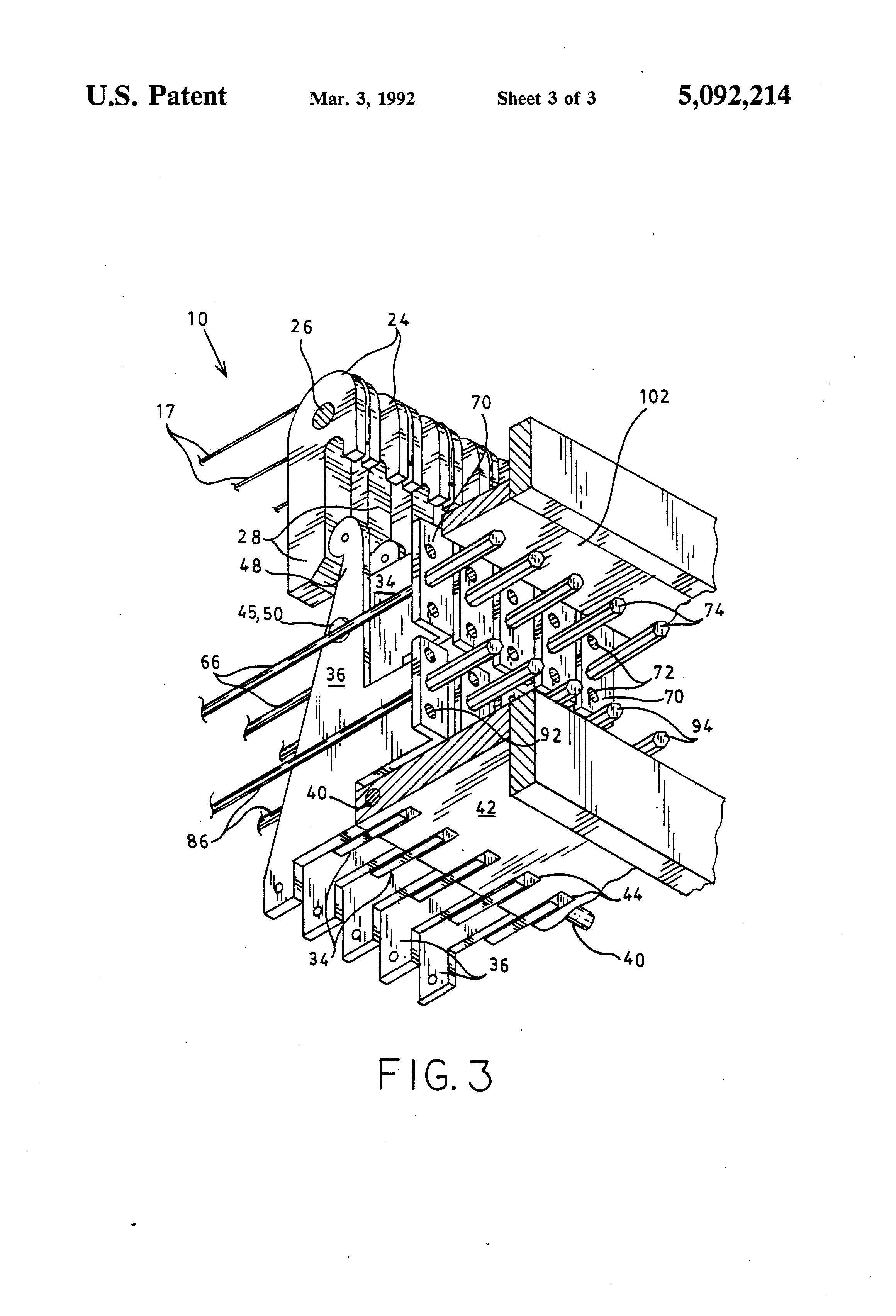

Thanks for sharing that story Paul, great stuff. Is this the patent you're talking about, from '92? https://patentimages.storage.googleapis.com/15/c4/85/184af2204a9ef8/US5092214.pdf

I see what you mean about the changer mechanism being sort of upside down, with the pivot for the raise scissor on the bottom. The fingers in the patent image don't have the guide slots on the bottom edge like George's guitar. Was that just an evolutionary change?



View user's profile Send private message Send e-mail
Paul Redmond


From:
Illinois, USA
Post  Posted 24 Feb 2019 9:14 pm
Reply with quote

That's the one for sure.
PRR
View user's profile Send private message Send e-mail
Paul Redmond


From:
Illinois, USA
Post  Posted 24 Feb 2019 9:17 pm
Reply with quote

As I recall, the slots were added to the changer fingers to hold the blades in better alignment....it prevented the rounded end of the blade from "skating" or deflecting when activated.
PRR
View user's profile Send private message Send e-mail
George Geisser


From:
Branson, Missouri, USA
Post  Posted 27 Feb 2019 6:24 pm
Reply with quote

Thanks Paul and Ian for the info. I have been reading up on the Flynn and recently discovered the BosSan and just yesterday read your "Last BosSan" lol
View user's profile Send private message Send e-mail
