Post new topic A knee-lever idea...
Reply to topic
Author Topic:  A knee-lever idea...
Roger Rettig


From:
Naples, FL
Post  Posted 24 Sep 2018 7:42 am
Reply with quote

It came to me as I woke up today. Not a flash of inspiration but more of an idle curiosity.

How would it be if I lowered (on standard 10-string E9, this is) my 9th to a B and my 10th to a G# on my LKV?

I keep thinking of that lovely piece by Gary Carter ('And So it Goes', I believe) where he detunes his 10th to the G#. It give the bottom end of his guitar such warmth!

Am I overlooking something that's right in front of my face? Would it take too much of a pull on the LKV on my Emmons?
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Earnest Bovine


From:
Los Angeles CA USA
Post  Posted 24 Sep 2018 9:21 am     Re: A knee-lever idea...
Reply with quote

Roger Rettig wrote:
(on standard 10-string E9, this is)


It sounds like your guitar is missing the 2 low strings.
View user's profile Send private message
Roger Rettig


From:
Naples, FL
Post  Posted 24 Sep 2018 9:45 am
Reply with quote

I agree, Doug, but I think it's too late to switch to an extended E9 - not sure I could assimilate those new grips at this late stage.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Donny Hinson



From:
Glen Burnie, Md. U.S.A.
Post  Posted 24 Sep 2018 1:05 pm
Reply with quote

Roger, presently, I lower the 10th to "A" for a little more fullness. So, it might not be a bad idea...if all you had was the 10-string E9th. But for players like you and me, who play double-neck steels, we already have a C6th tuning that provides nice warm sounds with a fat bottom end. Now, while I certainly don't have the chops to do it, I'm guessing a player skilled on C6th could pretty well cop that song and arrangement.

Would someone here up to the challenge? Mr. Green
View user's profile Send private message Send e-mail
Jon Light


From:
Saugerties, NY
Post  Posted 24 Sep 2018 1:31 pm
Reply with quote

I play 12 string so I don't need this but it sounds like a neat idea.
Except that I cannot imagine it being comfortable on a vertical lever.
1) It could be a fairly long throw and
2) you likely would not be using it with A&B down to push against.
Vertical lever alone as a passing tone is one thing. Holding it for any extended time without pushing against pedals is not fun.
View user's profile Send private message Send e-mail Visit poster's website
Roger Rettig


From:
Naples, FL
Post  Posted 24 Sep 2018 1:34 pm
Reply with quote

I get that, Donny and there's an undeniable warmth and range to C6 that goes some way towards my goal. In fact, I've found quite a lot of it on my back neck but it lacks something because of the string intervals.

Anyway, it's not just that song specifically, - it was just that Gary's detuned 10th put the thought in my head - but the endless possibilities of widening the range of a ten-string E9.

Both necks have their own tonality and, while some replication of one neck is possible on its opposite number, not everything can be transferred with complete success.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 24 Sep 2018 1:36 pm
Reply with quote

That's a point, Jon. Maybe a good 'pedal 9' move instead?
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Norman Evans


From:
Tennessee
Post  Posted 24 Sep 2018 2:06 pm
Reply with quote

Roger, I moved my 10th string to 9 and have a G# on 10. I pull the G# to A on my B pedal. I lower the 8th string to D on the lever I lower 2 on. This tuning works very good for me. YMMV Regards, Norm
View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 24 Sep 2018 2:09 pm
Reply with quote

I really want that D note without having to engage it, Norman. Having that open D as the root note of the chord is, in my opinion, one of E9's great attributes. I'd miss it badly.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Norman Evans


From:
Tennessee
Post  Posted 24 Sep 2018 2:14 pm
Reply with quote

I missed it too when i first changed the setup, but after I got used to it, I like it better. I've found a lot of uses for it I can't do the other way. It's a matter of which I like better.
View user's profile Send private message Send e-mail
Al Evans


From:
Austin, Texas, USA
Post  Posted 24 Sep 2018 3:37 pm     Re: A knee-lever idea...
Reply with quote

Earnest Bovine wrote:
Roger Rettig wrote:
(on standard 10-string E9, this is)


It sounds like your guitar is missing the 2 low strings.


Gary Carter seems to play it on a 10=string?

https://www.youtube.com/watch?v=BIWuQgzbCBs

--Al Evans
_________________
2018 ZumSteel Encore, 2015 Mullen G2, 1976 MSA D10 Classic, G&L S-500, G&L ASAT, G&L LB-100, Godin A4 Fretless, Kinscherff High Noon
View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 24 Sep 2018 6:04 pm
Reply with quote

That's my point, Al. I'm pretty sure he doesn't fret the 10th string but detunes it and plays it open while barring the higher strings.

In any case, I don't want to slavishly copy anyone but that low bass note does so much for the tuning that I'd like to have it while not losing the 10-string set up.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Charlie McDonald


From:
out of the blue
Post  Posted 25 Sep 2018 6:34 am
Reply with quote

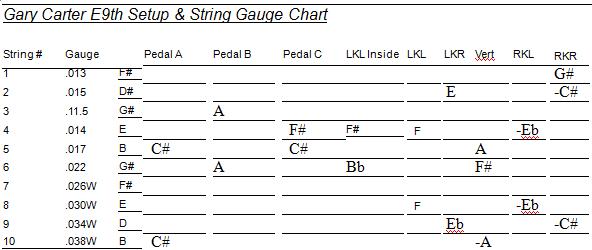

Roger, here is Gary's copedent as of a few years ago, at the time when he'd recorded And So It Goes. He sent it to me, so it's out of the horse's mouth.
Not intended to sway your thinking (because it sounds like a good idea for ten-string). It's a lovely piece, isn't it?

View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 25 Sep 2018 7:04 am
Reply with quote

That's interesting, Charlie - many thanks.

I believe, though, that he had to have detuned the 10th just for that piece. It's in B and I hear the 6th note in the bass.

I'll be studying his set up. And yes, it's hauntingly beautiful - it can bring a tear to my eye.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Jeff Harbour


From:
Western Ohio, USA
Post  Posted 25 Sep 2018 8:39 am
Reply with quote

Roger,

I love lowering the low B down to G#. It puts a warm 3 tone on bottom of the open chord, which I find very pleasing.

In my case I use Pedal 5. That pedal came from the factory with a C6 raise on the first string. When I switched to a D on top, I had to move the pull. After much experimentation, this is the best thing I found to do with it.

Also, due to the other three pulls on the pedal I end up with a 'feel stop' that is very close to the A.
View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 25 Sep 2018 8:50 am
Reply with quote

That's a good thought, Jeff. Right now I have the Isaacs pulls on p4 (raising 5 and 6) but I might consider losing that for my new idea.

Maybe my Isaacs could go on LKV - after all, I wouldn't want to raise 9 and 10 as I've described and use my A pedal, would I?

I have a Day set up but p4 could still work.

Thanks for all responses - much food for thought. I'm becoming obsessed with the beauty of playing off string 9 lowered along with raising my B and C pedal, then releasing the 9th lower. Buddy's 'Shenandoah' is my current inspiration.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Henry Brooks



From:
Los Gatos, California, USA
Post  Posted 25 Sep 2018 1:38 pm
Reply with quote

I asked Tom Bradshaw to rebuild my guitar and change the setup. He told me he couldn't get the 9th string to go down to a B. The guitar is a 1985 MCI perhaps a newer guitar can manage it. Also I lower the 10th string, 0.036W B to A
Henry
View user's profile Send private message Send e-mail
Charley Bond


From:
Inola, OK, USA
Post  Posted 1 Oct 2018 10:15 am     Getting a guitar to do what you want it to
Reply with quote

If you "PIGGY BACK" some bell cranks, you can make the strings do more than the guitar was designed to do.
_________________
Steel Guitar players are members of a Special Family
View user's profile Send private message Send e-mail
John McClung


From:
Olympia WA, USA
Post  Posted 2 Oct 2018 9:41 am
Reply with quote

Roger, Earnest Bovine was implying that with a 12-string E9, like he and I both play, you'd have what you're looking for. The low E is also quite lovely and handy for many things.

I asked Gary Carter about that tune a while back, he does manually tune down the B to G#.
_________________
E9 INSTRUCTION
Mullen pre-RP D-12 9+10 / Zumsteel S12 7+6 / Rittenberry SD-12 8+5 / Li'l Izzy / Webb amp / Stereo Steel combo amp-preamp / JBL, BW & Telonics speakers in Telonics cabinets / Hilton and Telonics volume pedals / BJS bars / George L strings & cables / StealSeat.com pack-a-seat / Macintosh computers / This Space for Hire / Burma Shave
View user's profile Send private message Send e-mail Visit poster's website
Larry Allen


From:
Anchorage,Alaska & Kapaa,Hawaii
Post  Posted 5 Oct 2018 12:23 pm
Reply with quote

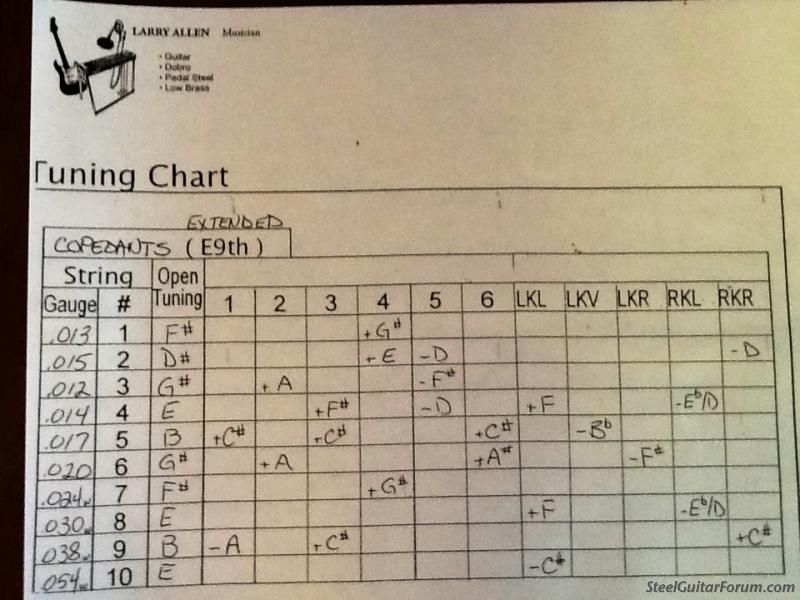

Hi Roger, solving the same lack of lows on E9 I did this set-up..fat and full chords...Larry

_________________
Excel steels & Peavey amps
View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 5 Oct 2018 1:39 pm
Reply with quote

Thanks, guys, but I'm too old to 1, go to a 12-string and 2, to lose my D string.

Larry - thanks for confirming that low-G# retune; it had to be what he was doing.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
Micky Byrne


Post  Posted 6 Oct 2018 12:24 am     Re: A knee-lever idea...
Reply with quote

Roger...anything is possible (within reason) ..take me for example..nearly 20 years (march 2019) .. with a transplanted heart Very Happy

Micky "scars" Byrne U.K.
View user's profile Send private message Send e-mail
Richard Sinkler


From:
aka: Rusty Strings -- Missoula, Montana
Post  Posted 6 Oct 2018 8:34 am
Reply with quote

Roger Rettig wrote:
I agree, Doug, but I think it's too late to switch to an extended E9 - not sure I could assimilate those new grips at this late stage.


I just switched (a year ago) from a D10 to an Sd12 ext E9. I am having trouble working in those 2 bottom strings. But I do believe it's never too late (I'm 64).
_________________
2020 - 50 years of Steel Guitar playing
View user's profile Send private message Send e-mail
Roger Rettig


From:
Naples, FL
Post  Posted 30 Jun 2019 6:18 am
Reply with quote

I awoke at 3.00 am wondering if my RKL (currently lowering my 5th to Bb and my 10th to A) would tolerate another half-step downwards without any 'under-guitar surgery'.

It turns out that it will! I have the 'B down to G#' on my LKV but, as Jon Light so perceptively commented, holding that pull for any length of time is too difficult. Having it on RKL, though, is a doddle!

Now I'm wondering about changing that LKV pull (not useful, anyway); what about putting the B - C# raise on the 10th and winding off that pull on my A pedal??? I've always loved getting a 'five' in the bass (10th) with a 'four' chord on the higher strings.

Or maybe I should go back to bed and see what comes to me in a dream!!!!

But these thoughts prompted me to do a 'search' and I found this old thread. Thanks again to everyone for some thought provoking notions.
_________________
RR
(Real men play 'Day'!)


-------------------------
View user's profile Send private message Send e-mail
