Post new topic Home built pedal steel guitars
Reply to topic
Author Topic:  Home built pedal steel guitars
Russell Adkins



From:
Louisiana, USA
Post  Posted 1 Jun 2017 7:06 pm
Reply with quote

Was wondering if any of you guys on the forum have built your own pedal steels , if you have could you post some pic s of your guitars
View user's profile Send private message Send e-mail

Will Cowell



From:
Cambridgeshire, UK
Post  Posted 2 Jun 2017 5:22 am
Reply with quote

http://steelguitarbuilder.com/forum/viewforum.php?f=4
_________________
Williams 700 series keyless U12,
Sierra keyless U14, Eezzee-Slide & BJS bars
Moth-eaten old Marshall 150 combo
Roland Cube 80XL, Peterson Strobo+HD,
EarthQuaker Despatch Master for reverb / delay
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 3 Jun 2017 1:05 pm
Reply with quote

Will, after following your link it's not clear where to go next.

In the meantime, thanks Russell for reminding me that I don't have up-to-date photos of my home-build, as I've modded it a bit. I shall remedy that soon. Here's a couple of old ones to be going on with. It's a 7x5 uni 12, the main features of which are a Kline-style changer and my own keyless tuner. All other such tuners, at least from what pictures I've seen, seem unnecessarily complicated.




MANUFACTURER'S GUARANTEE: This guitar sounds better than it looks.
_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Dan Robinson


From:
Colorado, USA
Post  Posted 3 Jun 2017 3:15 pm
Reply with quote

Ian, your keyless tuner is ingenious. If I'm interpreting it right, the tuning screw pushes on a finger that rotates on the axle. I've seen nothing like that before. I bet it's a smooth and precise mechanism.
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 3 Jun 2017 3:42 pm
Reply with quote

It is, because it's basically a miniature pull-release changer without the pulls. It's all I could build with the tools that I have, and it works very well. The screws are #10-32 x 1" set screws. Changing strings is easy, too.

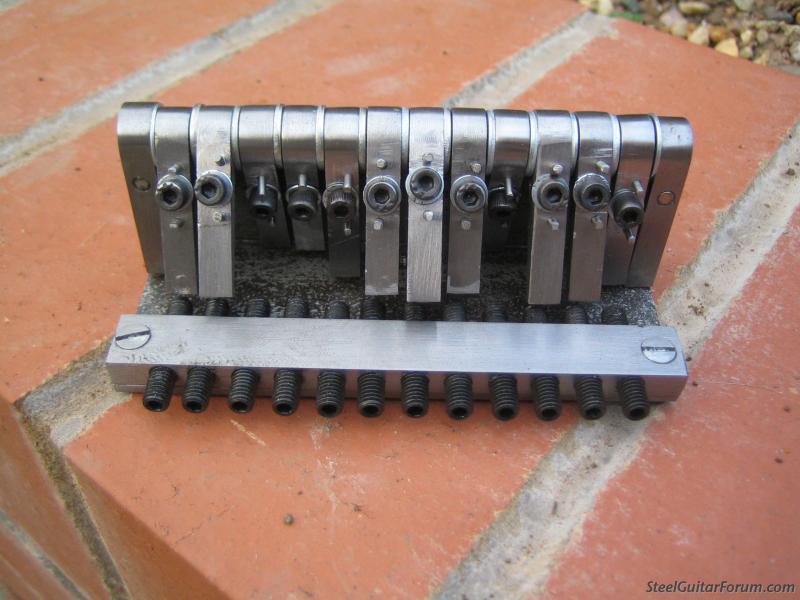

Here's a pic from the construction stage



_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Dan Robinson


From:
Colorado, USA
Post  Posted 3 Jun 2017 4:02 pm
Reply with quote

Pedal steel made by Alex Robson from Australia, courtesy of Doug Beaumier. Beautiful build. LOTS of pictures.

http://bb.steelguitarforum.com/viewtopic.php?t=228558&highlight=
View user's profile Send private message Send e-mail

Will Cowell



From:
Cambridgeshire, UK
Post  Posted 3 Jun 2017 9:59 pm
Reply with quote

Ian Rae, I paid him the compliment of assuming he would know how to navigate a web forum. My post alerted him to its existence. It's difficult to imagine anyone interested in steel not knowing about Bent Romnes, for example.

Anyone intelligent enough to play PSG can poke around a web forum without me needing to lead him by the hand... He doesn't need to be spoon-fed.
_________________
Williams 700 series keyless U12,
Sierra keyless U14, Eezzee-Slide & BJS bars
Moth-eaten old Marshall 150 combo
Roland Cube 80XL, Peterson Strobo+HD,
EarthQuaker Despatch Master for reverb / delay
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 3 Jun 2017 11:47 pm
Reply with quote

Wow, sorry. Anyway, here are some updated pics. The part of the instrument that I was finding least playable was the pedals (!) so I made a new chunkier design. The footplates are secured with a single screw which means I can tinker with them independently - I've already tried a longer C pedal (as someone suggested a while back) and I shall experiment with rounding some of the corners.



The changer has holes tapped for splits on all strings - you can see which I use. The plated tuning screw is a reminder that it's a borrowed change for string 9



The tuner is kind to strings as it doesn't pinch them. To change a string you loosen the tuning screw until the finger pops up to the horizontal.

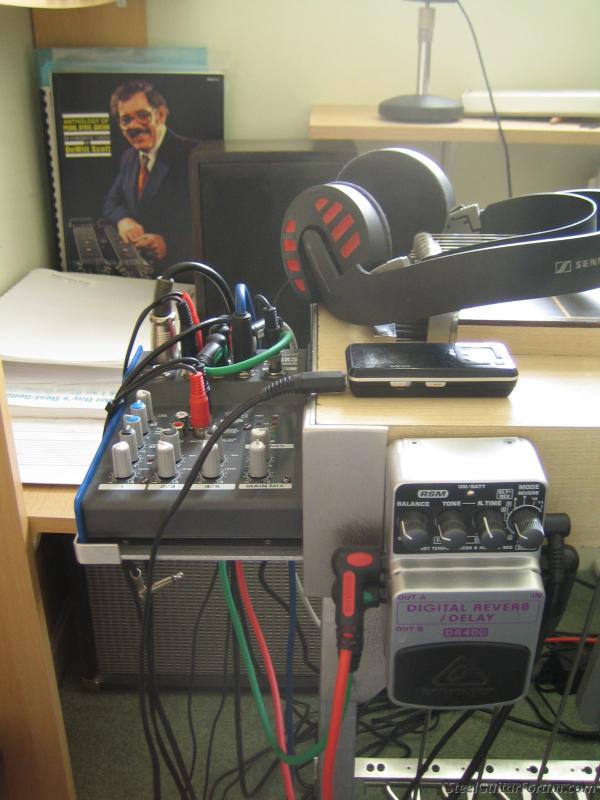

The mixer is for practice and recording only and the little shelf is removable.


_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website

Stuart Tindall


From:
England, UK
Post  Posted 6 Jun 2017 3:10 pm
Reply with quote

Hi Folks,

I built my own Pedal Steel Guitar about 15 years back and enjoyed doing it.
I will hopefully build another one day having learned all of the pitfalls building my first.
Here are a few pics









Got to know some great people along the way including,
Bent Romnes, Mac Knowles, Dave Wheelhouse and Karlis Abolins to mention but a few very talented people.

Stuart
View user's profile Send private message Send e-mail

Jim Williams



From:
Meridian, Mississippi, USA - Home of Peavey!
Post  Posted 7 Jun 2017 8:19 am
Reply with quote

My hat is off to anyone with the mechanical ability to build one of these things!
_________________
GFI SM10 3/4, 1937 Gibson EH-150, 2 - Rondo SX Lap Steels and a Guyatone 6 String C6. Peavey 400 and a Roland 40 Amps. Behringer Reverb Pedal.
View user's profile Send private message Send e-mail

Ross Shafer


From:
Petaluma, California
Post  Posted 7 Jun 2017 9:08 am
Reply with quote

Jim Williams wrote:
My hat is off to anyone with the mechanical ability to build one of these things!


Since my shop is about 60 feet from my front door, I'm wondering if the steels found here: http://bb.steelguitarforum.com/viewtopic.php?t=316783 would be considered "home built".

Especially big kudos to anyone building one of these without easy access to a machine shop.

Jim, my hat is off to you folks who can really make these suckers sing. At this point I find making these babies easier than playing them! Go figure!


Last edited by Ross Shafer on 8 Jun 2017 8:57 am; edited 1 time in total
View user's profile Send private message Send e-mail

David Weisenthal



From:
Arizona, USA
Post  Posted 7 Jun 2017 12:25 pm
Reply with quote

Great to see the handiwork of Ian and Stuart! Very professional looking machines.
_________________
Derby SD10, Peavey Session 400
View user's profile Send private message Send e-mail

Ian Rae


From:
Redditch, England
Post  Posted 8 Jun 2017 9:16 am
Reply with quote

I wish mine was as pretty as Stuart's, but I don't have the skill or the patience so I have to settle for functionality.

My father and grandfather were both great at woodcraft and would be downright ashamed of me Sad
_________________
Make sleeping dogs tell the truth!
Homebuilt keyless U12 7x5, Excel keyless U12 8x8, Williams keyless U12 7x8, Telonics rack and 15" cabs
View user's profile Send private message Send e-mail Visit poster's website
