Post new topic making a pine cab
Reply to topic
Author Topic:  making a pine cab
Steven Welborn


From:
Ojai,CA USA
Post Posted 11 Sep 2015 1:39 pm     Reply with quote

Lookin for tips on the best design/dimensions for 12' or 15". I assume clear pine? I suppose the sides, top and bottom would be from one piece wide boards.What about the baffle? Pine too? What about board thickness. Anyone remember or still use those Marrs cabs-- very lightweight with relatively thin boards resulting in a very resonant cab in a good way as I recollect. I've got a couple, havent used them yet but getting ready to soon. What about planing pine down to a similar thickness?
View user's profile Send private message Send e-mail
Tommy Mc


From:
Middlesex VT
Post Posted 12 Sep 2015 8:50 am     Reply with quote

I can't say if it's the "best" design, but I recently made one for a 15" BW. I used a 1x12 pine board. Since the speaker came out of my Session 400 cabinet, I used that as a template and just trimmed it down a little.

The box measures 19" square, and the angle of the front is roughly the same as the Session. So the bottom is 10.5" deep and the top is 9.5" giving it a 1" tilt. The baffle is 3/4" plywood glued in place as well as well as screwed to some cleats inside. The grill is just a light frame made with 3/4" pine strips and held in place with velcro tabs.

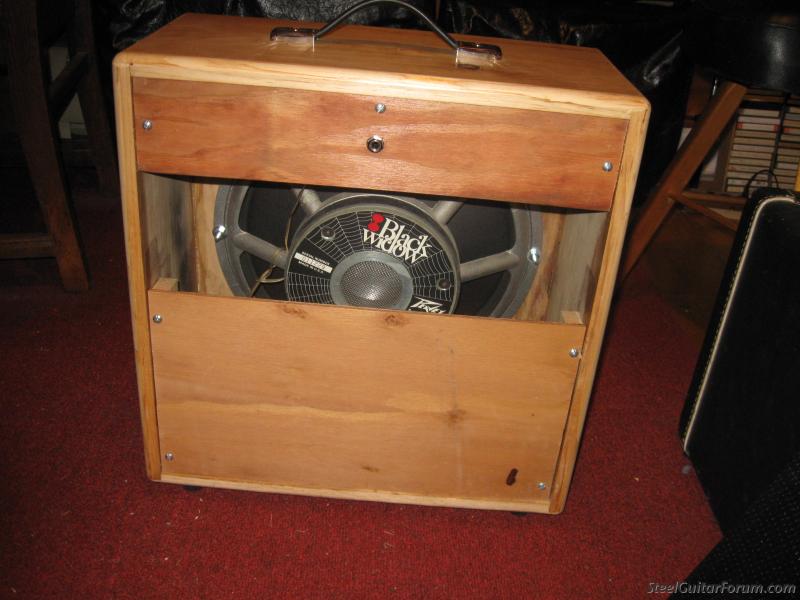

I left the box open-backed because that's how the Session is. The back is made of 5/16" plywood I had kicking around, and I lined the back with some foam padding. I bought a handle, corner protectors and feet. The corners aren't installed yet because I'm still thinking of covering it with black Tolex. The original idea was to make it match the Session as closely as I could, but I kind of like the plain wood look.

Including the speaker, it weighs 26 lbs.







View user's profile Send private message Send e-mail
Jack Stoner


From:
Inverness, Fl
Post Posted 12 Sep 2015 1:54 pm     Reply with quote

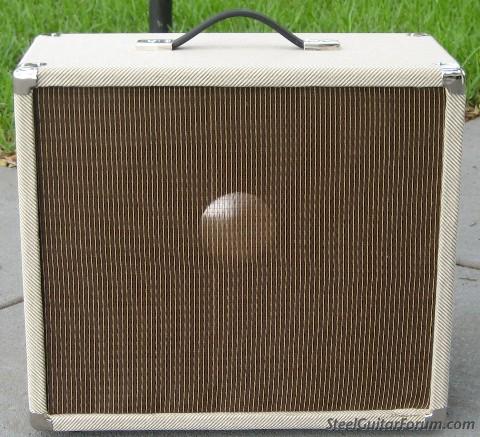

The cabinet I built for my Eminence EPS-15C is the same dimensions as a Nashville 112 except 1" taller. I made it those dimensions so the Danny Bentley Nashville 112 hard amp cover would work for this speaker.

Its made from 1X12" pine boards (good grade, not the cheap stuff) and covered with Tweed Tolex. The speaker baffle is 1/2" plywood and same with the back pieces.



_________________
Franklin D-10, Hilton VP, POD X3, MatchBro, Steelaire Rack, EPS-15C, Cakewalk (Sonar) by BandLab and Studio One 3 Pro DAWs, MOTU 896mk3 Hybrid
R.O.P.E. Member
View user's profile Send private message Send e-mail
Dyke Corson


From:
Fairmount, IL USA
Post Posted 12 Sep 2015 6:48 pm     Reply with quote

I used the Marrs cabs for years and really like the sound. I had Rick Johnson build me a pine cab and put a neo 12" in it. The end result is a GREAT sounding cab that's still pretty light weight. It looks amazing! Fine quality cab at a great price.
View user's profile Send private message Send e-mail Visit poster's website
Tommy Mc


From:
Middlesex VT
Post Posted 13 Sep 2015 9:10 am     Reply with quote

Nice work Jack, especially the tweed tolex. Looks like similar dimensions to the one I made. Is it open backed?
View user's profile Send private message Send e-mail
Steven Welborn


From:
Ojai,CA USA
Post Posted 13 Sep 2015 10:34 am     Reply with quote

At the moment I'm thinking of experimenting (when I get around to it Rolling Eyes ) a cab combining the Marrs idea using thinner boards but with pine, maybe 1/2" or just under. Most Pine cabs seem to be 3/4". Also curious to try a closed back with a bass port along the bottom front. Thats nothing new but has anyone tried that for a steel guitar cab?
View user's profile Send private message Send e-mail
Jack Stoner


From:
Inverness, Fl
Post Posted 13 Sep 2015 12:14 pm     Reply with quote

Tommy, it is partial open back. It has about the same amount of open back as a Nashville 112.

Weight is 23lbs, cabinet and Eminence EPS-15C speaker.

Here is a picture of the speaker with the Carvin BX500 amp on top. This was taken at the recent Heartland Steel Guitar Association Steel Show in Harrisonville, Mo (Zum territory LOL)



_________________
Franklin D-10, Hilton VP, POD X3, MatchBro, Steelaire Rack, EPS-15C, Cakewalk (Sonar) by BandLab and Studio One 3 Pro DAWs, MOTU 896mk3 Hybrid
R.O.P.E. Member
View user's profile Send private message Send e-mail
