Post new topic Vintage Accutronics spring reverb tank from Fender Deluxe Re
Reply to topic
Author Topic:  Vintage Accutronics spring reverb tank from Fender Deluxe Re
Pat Moore


From:
Virginia USA
Post  Posted 2 May 2012 2:23 pm
Reply with quote

In good working order. Has "064063" and "50 77 263" stamped in ink. Includes the vinyl bag and two cords with RCA jacks. Item shown in photos is item up for bid.
$65 plus $11 shipping.
Thanks for looking. Very Happy


_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Pat Moore


From:
Virginia USA
Post  Posted 3 May 2012 3:07 pm     Update
Reply with quote

Well I guess I'm getting dyslexic. Embarassed
The price is $56. I bought this off eBay 2 weeks ago, but it won't work for what I wanted. GREAT unit & sound. REAL Fender !!!
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Pat Moore


From:
Virginia USA
Post  Posted 5 Jun 2012 8:57 pm
Reply with quote

Try one more time.
TTT
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Dave Grafe


From:
Portland, Oregon, USA
Post  Posted 7 Jun 2012 9:22 am
Reply with quote

There should be some other numbers and letters stamped on there somewhere, Patrick. The part number (eg. 9FB3A1B) tells the impedances and mounting configuration, information that will be necessary to install it in another amp...
View user's profile Send private message Send e-mail Visit poster's website
Pat Moore


From:
Virginia USA
Post  Posted 7 Jun 2012 11:37 am
Reply with quote

Thanks Dave,
There are other numbers in the photos. It came out of a Fender amp, and I know it won't work in a Peavey.
Thanks for looking.
Pat
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Cartwright Thompson


Post  Posted 7 Jun 2012 12:14 pm
Reply with quote

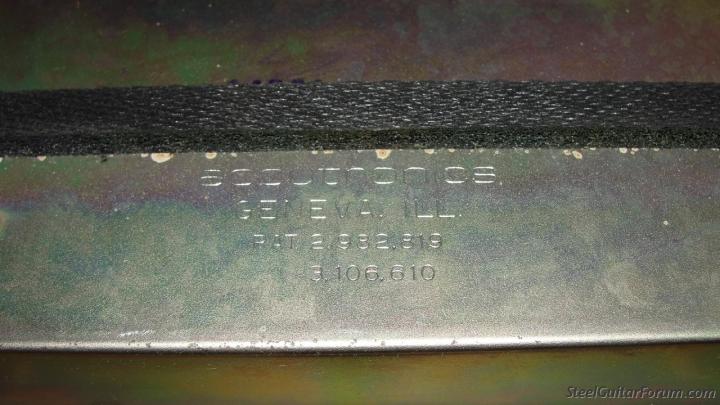

Those numbers in the photo are patent numbers. Like Dave said, there should be a 7 digit combination of letters and numbers stamped on the top. Without this information it's useless. There are many variations of Accutronics tanks.
View user's profile Send private message Send e-mail
Philip Mitrakos


From:
The Beach South Florida
Post  Posted 7 Jun 2012 2:47 pm
Reply with quote

Accutronics Reverb Tanks

--------------------------------------------------------------------------------

Almost all the reverb tanks that one sees for sale are the Accutronics brand. They are made by:

Sound Enhancements, Inc.
185 Detroit St.
Cary, IL 60013

Although they make many models, the three types that are readily available are a limited number of their types 4, 8, and 9. The type 4 is 17" long and uses 2 long springs, each of which consists of two springs joined in the middle. Thus, Accutronics considers this model a 4-spring unit. This type was the original style selected by Leo Fender. The type 8 is 9" long and uses 3 springs. This type is most famous for its use by Marshall. The type 9 is 17" long and uses 3 long springs, each of which consists of two springs joined in the middle. Analogously, Accutronics considers this unit a 6-spring device. All Accutronics' part numbers consist of 7 characters as described below.
1st character: type 4, 8, or 9

2nd character: Input impedance @ 1kHz
Type A B C D E F
4 8 ohms 150 ohms 200 ohms 250 ohms 600 ohms 1475 ohms
8 and 9 10 ohms 190 ohms 240 ohms 310 ohms 800 ohms 1925 ohms

3rd character: Output impedance @ 1 kHz
Type A B C
4 500 ohms 2250 ohms 10000 ohms
8 and 9 600 ohms 2575 ohms 12000 ohms

4th character: Decay time
1 = short (1.2 to 2 sec)
2 = medium (1.75 to 3.0 sec)
3 = long (2.75 to 4 sec)

5th character: Connector arrangement
A = input grounded, output grounded
B = input grounded, output insulated
C = input insulated, output grounded
D = input insulated, output insulated


6th character: Locking device 1 = no lock

7th character: Mounting plane
A = horizontal,open side up
B = horizontal, open side down
C = vertical wall,long axis horizontal, connectors up
D = vertical wall, long axis horizontal, connectors down
E = vertical wall, long axis vertical, input up
F = vertical wall, long axis vertical, output up

The following table summarizes the above data for the most commonly available units:

PART NUMBER PRIMARY USER LENGTH NUMBER OF SPRINGS INPUT IMPEDANCE@ 1KhZ/DC OUTPUT IMPEDANCE @ 1KhZ/dc

4AB3C1B Fender 17" 4 8ohms/.81ohms 2,250ohms/200ohms
4BB2C1B Acoustic/SLM/Ampeg 17" 4 150ohms/26ohms 2,250ohms/200ohms
4EB2C1B Peavey 17" 4 600ohms/58ohms 2,250ohms/200ohms
4FB3D1B Music Man General 17" 4 1475ohms/200ohms 2,250ohms/200ohms
9AB2C1B Fender/ Boogie 17" 6 10ohms/.81ohms 2575ohms/200ohms
9EB2C1B Peavey/General 17" 6 800/58ohms 2575ohms/200ohms
9FB2A1C General 17" 6 1,925/200ohms 2575ohms/200ohms
8AB2A1B Boogie 9" 3 10ohms/.81ohms 2575ohms/200ohms
8BB2A1B SLM 9" 3 190ohms/26ohms 2575ohms/200ohms
8DB2C1B Marshall 9" 3 310ohms/36ohms 2575ohms/200ohms
8EB2C1B Fender 9" 3 800ohms/58ohms 2575ohms/200ohms
View user's profile Send private message Send e-mail
Pat Moore


From:
Virginia USA
Post  Posted 7 Jun 2012 5:56 pm
Reply with quote

I found a better photo, but can't upload it now. Looks like

4 ABBC1 B.

I'll keep trying to upload the photo when I get a better internet signal.

Original internal Fender Deluxe Reverb unit.

Hope it helps for whoever might need this.
Thanks,
Pat
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Pat Moore


From:
Virginia USA
Post  Posted 7 Jun 2012 6:00 pm
Reply with quote

Thanks fellas for all the help an input.

4AB3C1B is the number best I can tell.

Pat
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Pat Moore


From:
Virginia USA
Post  Posted 8 Jun 2012 11:05 am
Reply with quote


I hope this helps. Pat Very Happy
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Curtis Scarrow


From:
Saskatoon, Saskatchewan, Canada
Post  Posted 2 Feb 2019 7:45 am     still available?
Reply with quote

Pm sent on old ad. Thx
View user's profile Send private message Send e-mail Visit poster's website
Pat Moore


From:
Virginia USA
Post  Posted 2 Feb 2019 7:46 am
Reply with quote

Yeah, still have that
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster
View user's profile Send private message Send e-mail
Pat Moore


From:
Virginia USA
Post  Posted 2 Feb 2019 10:22 am
Reply with quote

👍
_________________
Emmons D10 SKH, Emmons D10 PP, Emmons STR10 lacquer PP
Quilter Steelaire, Peavey Amps, Dodd Princeton Amp
Fender Telecaster


Last edited by Pat Moore on 2 Feb 2019 6:59 pm; edited 1 time in total
View user's profile Send private message Send e-mail
Curtis Scarrow


From:
Saskatoon, Saskatchewan, Canada
Post  Posted 2 Feb 2019 1:57 pm
Reply with quote

Cool. I would like to buy it. I am in canada I will pm you my address to quote shipping & discuss payment if that's agreeable to you.
View user's profile Send private message Send e-mail Visit poster's website
