Author Topic:  The Candy Cane Bell Crank
Chris Templeton


From:
The Green Mountain State
Post  Posted 13 Sep 2021 3:23 pm
Reply with quote

I spoke with Ross Shafer at Sierra Steel Guitars about my design called "The Candy cane bell crank", because I designed it from a Sierra bell crank.

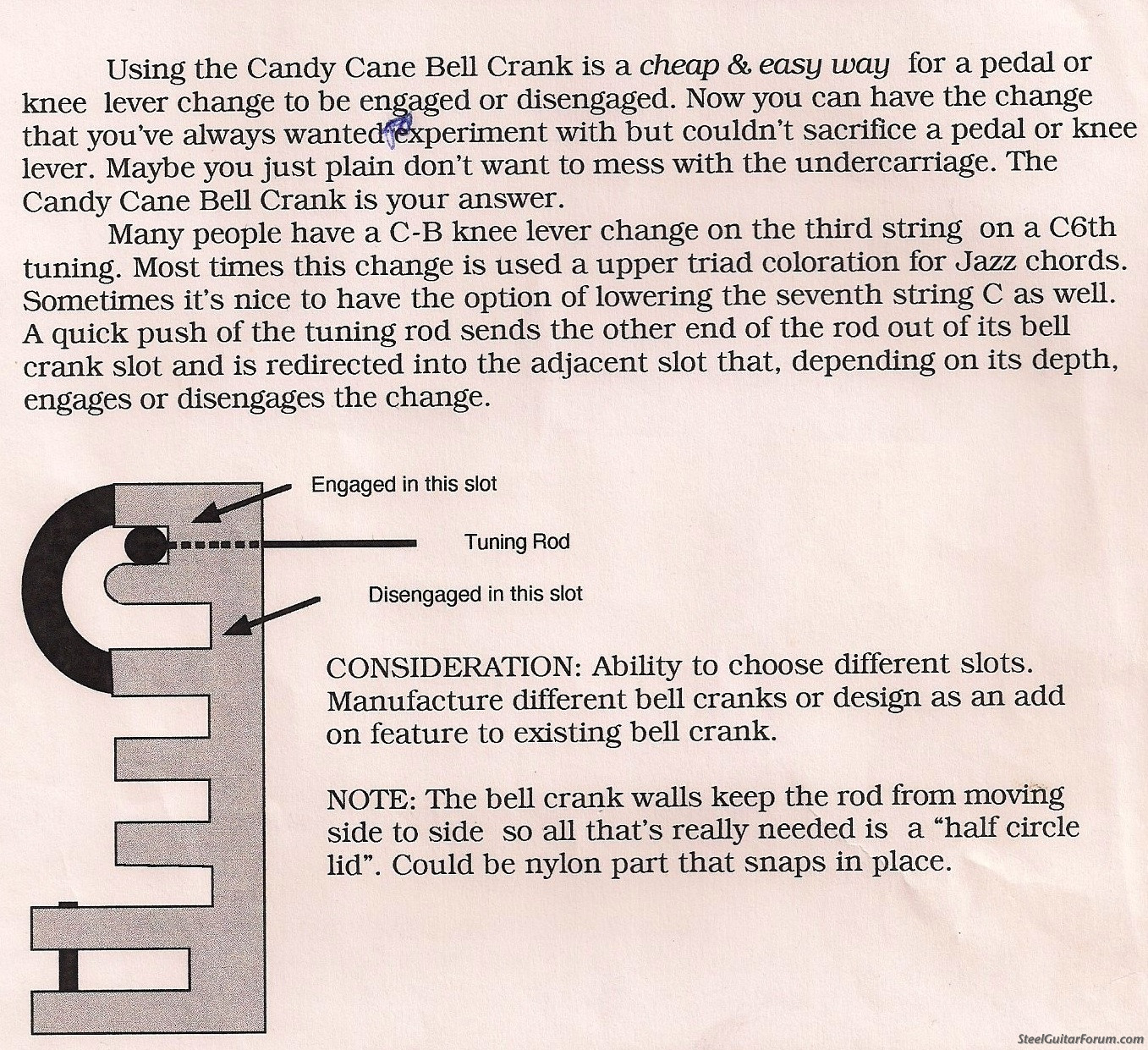

Here's a drawing I made 20 or so years ago and an explanation.
Please PM me if you would like to use this idea, maybe adapted to a different bell crank:

_________________
Excel 3/4 Pedal With An 8 String Hawaiian Neck, Tapper (10 string with a raised fretboard to fret with fingers), Single neck Fessenden 3/5
View user's profile Send private message

John Hyland



From:
South Australia
Post  Posted 16 Sep 2021 4:51 pm
Reply with quote

Interesting idea but to return the rod to the upper position might not be so easy. Maybe?
View user's profile Send private message Send e-mail

Chris Templeton


From:
The Green Mountain State
Post  Posted 16 Sep 2021 5:26 pm
Reply with quote

It's all in the lubrication. No screeching of aluminum.
_________________
Excel 3/4 Pedal With An 8 String Hawaiian Neck, Tapper (10 string with a raised fretboard to fret with fingers), Single neck Fessenden 3/5
View user's profile Send private message

John Hyland



From:
South Australia
Post  Posted 16 Sep 2021 5:46 pm
Reply with quote

I can see a push forward and the rod drops under gravity. But getting it back requires finding the right rod and pushing up along with the bellcrack at the same time
View user's profile Send private message Send e-mail

b0b


From:
Cloverdale, CA, USA
Post  Posted 16 Sep 2021 9:48 pm     Re: The Candy Cane Bell Crank
Reply with quote

Chris Templeton wrote:
I spoke with Ross Shafer at Sierra Steel Guitars about my design called "The Candy cane bell crank", because I designed it from a Sierra bell crank.

It's an interesting idea but Ross Shafer's Sierra bell cranks don't have slots! Mr. Green I just back out the tuning nut with a few quick turns. Not as fast as your invention, but it works. Smile
_________________
-𝕓𝕆𝕓- (admin) ♪ Robert P. LeeRecordingsBreatheD6thVideo
View user's profile Send private message Send e-mail Visit poster's website
