Post new topic Current edit (maybe final) D13th S12
Goto page Previous  1, 2, 3
Reply to topic
Author Topic:  Current edit (maybe final) D13th S12
Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 12 Sep 2021 12:43 pm
Reply with quote

Chris Templeton wrote:
Studying the tuning now.
The F#- G# change on the top string, E9, has been somewhat popular in the last 30 years, if not more.
I think Paul Franklin was the first to use it.
I don't see it on your copedent.
Any thoughts on it. String breakage? The C pedal gives a nice unison with the F#, but F#-G# has quality of sound that I like.

It's there, on my guitar it's LKLI. Paul made it prominent but not the first to do it.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

Chris Templeton


From:
The Green Mountain State
Post  Posted 12 Sep 2021 1:35 pm
Reply with quote

Thanks guys.
Johnny, could you tell me the weight of the triple neck pedal you had? I'm guessing 120 pounds in the case.
_________________
Excel 3/4 Pedal With An 8 String Hawaiian Neck, Tapper (10 string with a raised fretboard to fret with fingers), Single neck Fessenden 3/5
View user's profile Send private message

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 12 Sep 2021 5:37 pm
Reply with quote

Chris Templeton wrote:
Thanks guys.
Johnny, could you tell me the weight of the triple neck pedal you had? I'm guessing 120 pounds in the case.

I honestly don't remember number but it was in split cases. It seems that the guitar in its case was about the same as a D10 in a single case.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

Chris Templeton


From:
The Green Mountain State
Post  Posted 12 Sep 2021 5:52 pm
Reply with quote

Got it. Thanks.
_________________
Excel 3/4 Pedal With An 8 String Hawaiian Neck, Tapper (10 string with a raised fretboard to fret with fingers), Single neck Fessenden 3/5
View user's profile Send private message

Chris Scruggs



From:
Nashville, Tennessee, USA
Post  Posted 13 Sep 2021 7:46 am
Reply with quote

Johnny, what gauges are you using for D13?
View user's profile Send private message Send e-mail

Dustin Rhodes


From:
Owasso OK
Post  Posted 13 Sep 2021 8:47 am
Reply with quote

Chris Scruggs wrote:
Johnny, what gauges are you using for D13?


Hey Chris this might help.

https://bb.steelguitarforum.com/viewtopic.php?t=373060
View user's profile Send private message Send e-mail

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 13 Sep 2021 2:50 pm
Reply with quote

Dustin Rhodes wrote:
Chris Scruggs wrote:
Johnny, what gauges are you using for D13?


Hey Chris this might help.

https://bb.steelguitarforum.com/viewtopic.php?t=373060

These are the gauges b0b and I came up with
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 14 Sep 2021 1:05 pm
Reply with quote

So doing some thinking about the 1st string raise. As on E9th I raise my 1st (E or 2 to 3 of chord) a whole tone. And on my C6th I lowered my 2nd string (E or 3 to 2 of chord) a whole tone. I got that from Maurice Anderson and use it a lot. On my D13th I'm thinking of lowering the 3rd string a whole tone to accomplish both.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

b0b


From:
Cloverdale, CA, USA
Post  Posted 14 Sep 2021 9:40 pm
Reply with quote

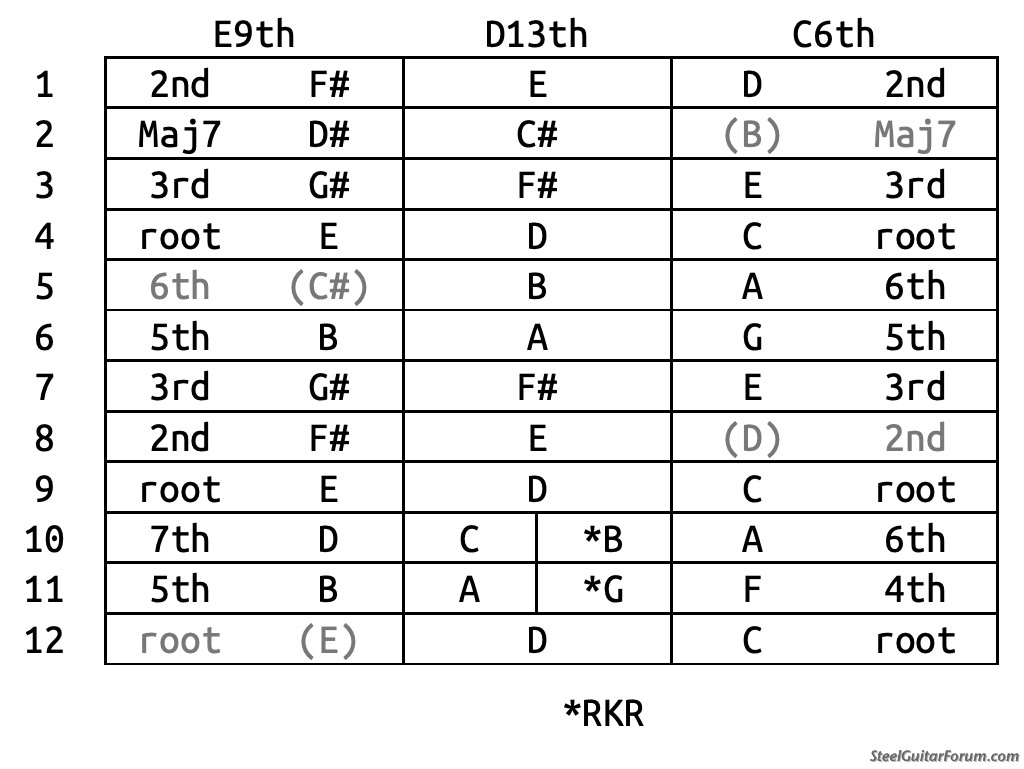

Johnny came up with the idea of a chart showing how the intervals line up with the standard E9th and C6th tunings. The RKR changes strings 10 and 11 to match the C6th low A and F intervals. Here's my graphic interpretation of his idea:


_________________
-𝕓𝕆𝕓- (admin) ♪ Robert P. LeeRecordingsBreatheD6th
View user's profile Send private message Send e-mail Visit poster's website

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 14 Sep 2021 10:03 pm
Reply with quote

b0b wrote:
Johnny came up with the idea of a chart showing how the intervals line up with the standard E9th and C6th tunings. The RKR changes strings 10 and 11 to match the C6th low A and F intervals. Here's my graphic interpretation of his idea:

Thanks b0b, it just made sense to look at it in intervals as opposed to tunings. My tuning puts all those intervals in the same spot for both 12 string E9th and C6th. There are lots of players with such better musical minds than me, I still don't understand why this hasn't been done before.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

b0b


From:
Cloverdale, CA, USA
Post  Posted 14 Sep 2021 10:17 pm
Reply with quote

Johnny Cox wrote:
So doing some thinking about the 1st string raise. As on E9th I raise my 1st (E or 2 to 3 of chord) a whole tone. And on my C6th I lowered my 2nd string (E or 3 to 2 of chord) a whole tone. I got that from Maurice Anderson and use it a lot. On my D13th I'm thinking of lowering the 3rd string a whole tone to accomplish both.

I'd stick with the 1st string raise. The 3rd string's tuning is very stable because it only raises. There's bound to be a bit of hysteresis if you lower it a full step.

Chris Scruggs wrote:
Johnny, what gauges are you using for D13?

E .014
C# .017
F# .013
D .015
B .018
A .020p
F# .026w
E .030
D .034
C .040
A .046
D .060
_________________
-𝕓𝕆𝕓- (admin) ♪ Robert P. LeeRecordingsBreatheD6th
View user's profile Send private message Send e-mail Visit poster's website

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 15 Sep 2021 1:07 pm
Reply with quote

I thought I would put these variations of D13th setups here for comparison.

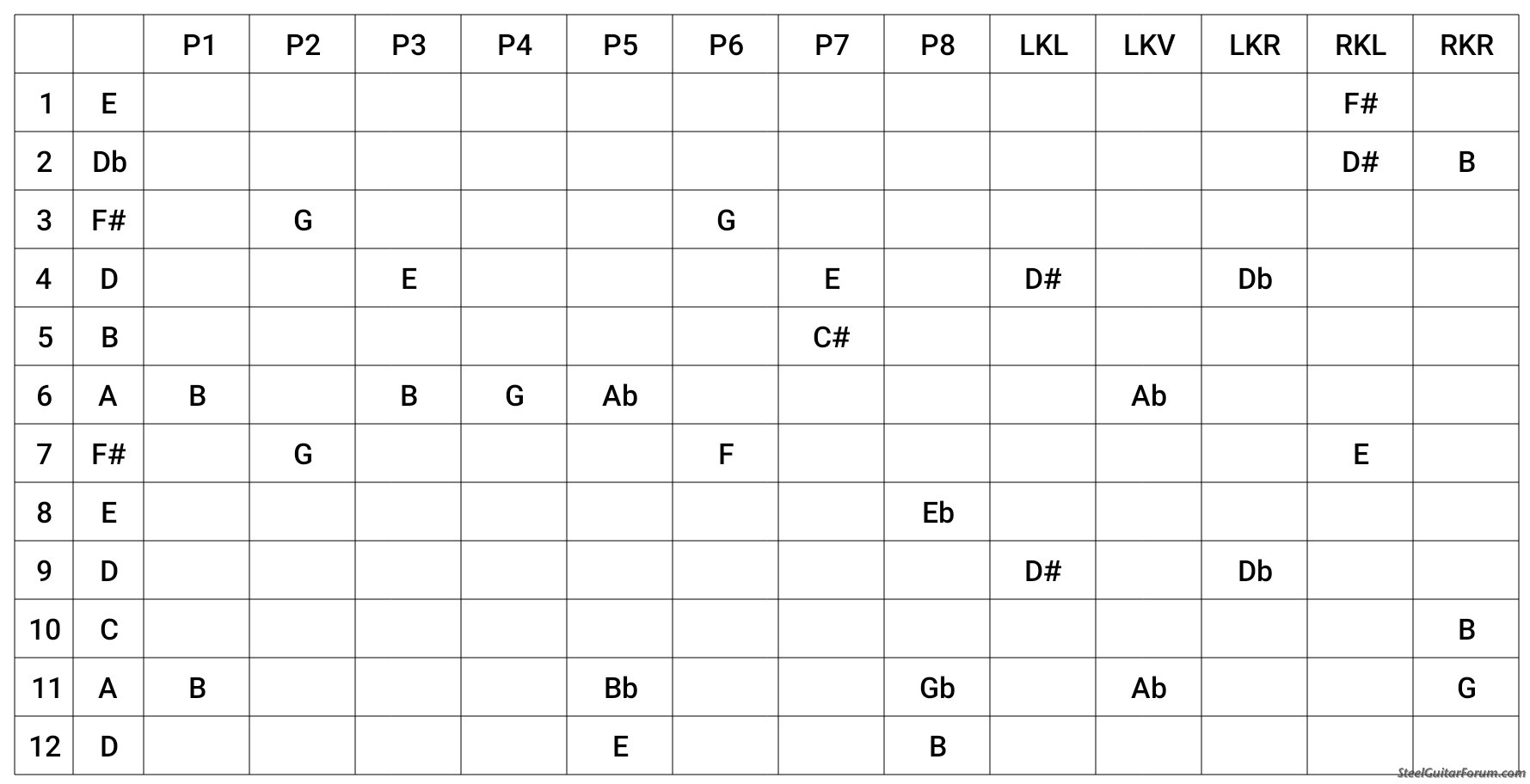

First is a standard Emmons 8x5 pedal setup. One additional note, Buddy Emmons did not raise his first string only the second.



Next is what I currently have on my MSA 8X6



The following are the two possibilities for my new guitar, either 7x6 or 6x6







As you can see this tuning is very adaptable to different pedal configurations.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.


Last edited by Johnny Cox on 15 Sep 2021 5:45 pm; edited 1 time in total
View user's profile Send private message Visit poster's website

Darren Mortillaro


From:
Nevada, USA
Post  Posted 15 Sep 2021 4:38 pm
Reply with quote

Hi Johnny,

I'm having a new MSA S12 put together. Of these options what would you recommend for a beginner?

I should also say that I really don't want to change copedants after deciding on one, as I don't want to be constantly re-learning how to play the instrument. Regularly changing and experimenting with different tunings or setups will only confuse me further, and slow down my progress. Which would you say is the best setup for a beginner to learn and to stick with permanently?


Last edited by Darren Mortillaro on 15 Sep 2021 5:13 pm; edited 2 times in total
View user's profile Send private message Send e-mail

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 15 Sep 2021 4:54 pm
Reply with quote

Darren Mortillaro wrote:
Hi Johnny,

I'm having a new MSA S12 put together. Of these options what would you recommend for a beginner?

Johnny Cox wrote:
I thought I would put these variations of D13th setups here for comparison.
First is a standard Emmons 8x5 pedal setup



Next is what I currently have on my MSA 8X6



The following are the two possibilities for my new guitar, either 7x6 or 6x6







As you can see this tuning is very adaptable to different pedal configurations.

Have you played very long and what setup do you currently have?
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

Darren Mortillaro


From:
Nevada, USA
Post  Posted 15 Sep 2021 4:58 pm
Reply with quote

Hi Johnny,

I have a S-10 E9, 3 pedal 3 lever BMI. Been playing (or messing around with PSG) for about 10-15 years, but am still a beginner.

As mentioned above, I really don't want to change copedants after deciding on a new "universal" one, as I don't want to be constantly re-learning how to play the instrument. Regularly changing and experimenting with different tunings or setups will only confuse me further, and slow down my progress. Which would you say is the best setup for a beginner to learn and to stick with permanently?

I have a solid background in music theory, and am more a jazz guitar guy than anything. Pedal steel is something I am not as familiar with.
View user's profile Send private message Send e-mail

Johnny Cox


From:
Williamsom WVA Lives in Hallettsville Texas
Post  Posted 15 Sep 2021 5:42 pm
Reply with quote

Darren Mortillaro wrote:
Hi Johnny,

I have a S-10 E9, 3 pedal 3 lever BMI. Been playing (or messing around with PSG) for about 10-15 years, but am still a beginner.

As mentioned above, I really don't want to change copedants after deciding on a new "universal" one, as I don't want to be constantly re-learning how to play the instrument. Regularly changing and experimenting with different tunings or setups will only confuse me further, and slow down my progress. Which would you say is the best setup for a beginner to learn and to stick with permanently?

I have a solid background in music theory, and am more a jazz guitar guy than anything. Pedal steel is something I am not as familiar with.

Then I suggest the standard Emmons setup.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud, Jackson and MSA pedal steels. Telonics,Quilter and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Visit poster's website

b0b


From:
Cloverdale, CA, USA
Post  Posted 15 Sep 2021 6:13 pm
Reply with quote

Johnny, I think there are two errors on your "Emmons" chart, both on the right knee, 2nd string. Shouldn't they be half-step, not full-step changes (D and C, respectively)?


_________________
-𝕓𝕆𝕓- (admin) ♪ Robert P. LeeRecordingsBreatheD6th
View user's profile Send private message Send e-mail Visit poster's website

Mike Spaeth



From:
Springdale
Post  Posted 15 Sep 2021 6:28 pm     D13
Reply with quote

I am curious about the open B on the 5th string while pulling string 6 to a B again.
How is this used in an actual playing environment?
View user's profile Send private message Send e-mail

Darren Mortillaro


From:
Nevada, USA
Post  Posted 15 Sep 2021 6:35 pm
Reply with quote

Hi Johnny,

Many thanks. I'll think of the Emmons 8x5 D13 as the most standard or generic version then.

However, you feel the "Day" CBA setup to be more ergonomic? If I'm starting over from scratch anyway, do you still feel the Emmon's version is best?

Love your playing. Any plans to make more videos or lessons on this setup?


Johnny Cox wrote:
Darren Mortillaro wrote:
Hi Johnny,

I have a S-10 E9, 3 pedal 3 lever BMI. Been playing (or messing around with PSG) for about 10-15 years, but am still a beginner.

As mentioned above, I really don't want to change copedants after deciding on a new "universal" one, as I don't want to be constantly re-learning how to play the instrument. Regularly changing and experimenting with different tunings or setups will only confuse me further, and slow down my progress. Which would you say is the best setup for a beginner to learn and to stick with permanently?

I have a solid background in music theory, and am more a jazz guitar guy than anything. Pedal steel is something I am not as familiar with.

Then I suggest the standard Emmons setup.
View user's profile Send private message Send e-mail
