Author Topic:  Rosalee - Late 70s Push Pull Restro Project
Barry Blackwood


Post  Posted 7 Oct 2019 8:58 am
Reply with quote

Quote:
When you get this old it's all you can do to remember how you used to play


You said a mouthful, Mike. Very profound!
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post  Posted 7 Oct 2019 12:06 pm
Reply with quote

Tony Glassman wrote:
I agree with polishing all metal.....I even buff the beveled ends of the cross-shafts where they pass through the apron mounting pedal brackets and also the inner hooks on the pedal rods.

On my 78 keeper D-10 rebuild, I also did the “ball-bearing” mod. The mod consists of taking off about 1/32” off each cross-shaft end and inserting a ball bearing between each end of the. cross-shaft end and the apron. It contributed to smooth smoother & lighter pedal action.

Lastly, at the suggestion of fellow forumite Larry Behm, I removed the pedal return springs on A&B. All in all, this p/p pedals as nicely as my LG II.


Ha! I do all those same mods and they do matter as you know. The return spring thing is ok to do as well but I end up just relieving the spring tension so I can leave them on the guitar. You can just about set a PP up with no springs on the rods too but you better know how to balance one out and adjust it or things get weird.

Cheers
_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Andy DePaule


From:
Saigon, Viet Nam & Harrisburg, Oregon
Post  Posted 7 Oct 2019 2:25 pm     Guess it's a No Deal
Reply with quote

Johnie King wrote:
Andy u could trade your project steel in on Roselee

I'm for it but guess it's a No Deal...
Seriously, I never owned a PP until I got the Promat a couple of years ago.
I'm still not really used to it yet.
Once all repaired and set up right it's an amazing steel, but compared to what Mike did for that Emmons steel, it just can't compare. What he decided to do and how he has carried out the work is really a thing to behold.
Really wish I owned such a thing of beauty. Very Happy
_________________
Inlaid Star Guitar 2006 by Mark Giles. SD-10 4+5 in E9th; http://luthiersupply.com/instrument-gallery.html
2017 Mullen SD-10, G2 5&5 Polished Aluminum covering.
Promat #11 2007, D-10 Blond & Mahogany with Gold Tuners.
Clinesmith Triple 8 Console, Birdseye Maple.
Clinesmith Joaquin Murphy style Aluminum 8 String Lap Steel Short A6th.
Clinesmith Joaquin Murphy style Aluminum 8 String Lap Steel Long E6/9th.
1950's? Blankenship D-8 6&3 PSG Restored.
1956 Dewey Kendrick D-8 4&3 PSG, Restoration Project.
View user's profile Send private message Send e-mail Visit poster's website Yahoo Messenger
Kevin Fix


From:
Michigan, USA
Post  Posted 7 Oct 2019 2:57 pm
Reply with quote

Beautiful job there Mike!!!! Man after my own heart!!!! My Super Pro has been on the kitchen table a few times!!!!
View user's profile Send private message Send e-mail
Dennis Brion


From:
Atwater, Ohio USA
Post  Posted 7 Oct 2019 4:00 pm
Reply with quote

That is one fabulous looking steel!
_________________
1969 Custom built d10, Fender 25R practice amp,Dunlop pedal, Peavy Special 130 w/15" Blackwidow, Gretsch resonator, 41 Gibson 7 string lap steel, Epiphone flat top, 67 Epiphone Olympic
View user's profile Send private message Send e-mail
Johnie King


From:
Tennessee, USA
Post  Posted 7 Oct 2019 4:13 pm
Reply with quote

Yes Andy Mikes attention too detail is unreal he’s a old school craftsman a dying breed her in the U S.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post  Posted 7 Oct 2019 4:18 pm
Reply with quote

Thank you guys, I appreciate your feedback very much...
_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Tony Glassman


From:
The Great Northwest
Post  Posted 7 Oct 2019 5:34 pm
Reply with quote

Mike Scaggs wrote:
Tony Glassman wrote:
I agree with polishing all metal.....I even buff the beveled ends of the cross-shafts where they pass through the apron mounting pedal brackets and also the inner hooks on the pedal rods.

On my 78 keeper D-10 rebuild, I also did the “ball-bearing” mod. The mod consists of taking off about 1/32” off each cross-shaft end and inserting a ball bearing between each end of the. cross-shaft end and the apron. It contributed to smooth smoother & lighter pedal action.

Lastly, at the suggestion of fellow forumite Larry Behm, I removed the pedal return springs on A&B. All in all, this p/p pedals as nicely as my LG II.


Ha! I do all those same mods and they do matter as you know. The return spring thing is ok to do as well but I end up just relieving the spring tension so I can leave them on the guitar. You can just about set a PP up with no springs on the rods too but you better know how to balance one out and adjust it or things get weird.

Cheers


I know a lot of guys swear by removing all pull/ push rod compression springs because they add resistance but I like to use them sparingly in the shortest length possible for smoother balancing and tuning forgiveness.

BTW, all your rebuilds are beautifully done. I’d like to get the chance to play one of th in the future.
View user's profile Send private message
Mike Scaggs


From:
Nashville, TN
Post  Posted 7 Oct 2019 8:06 pm
Reply with quote

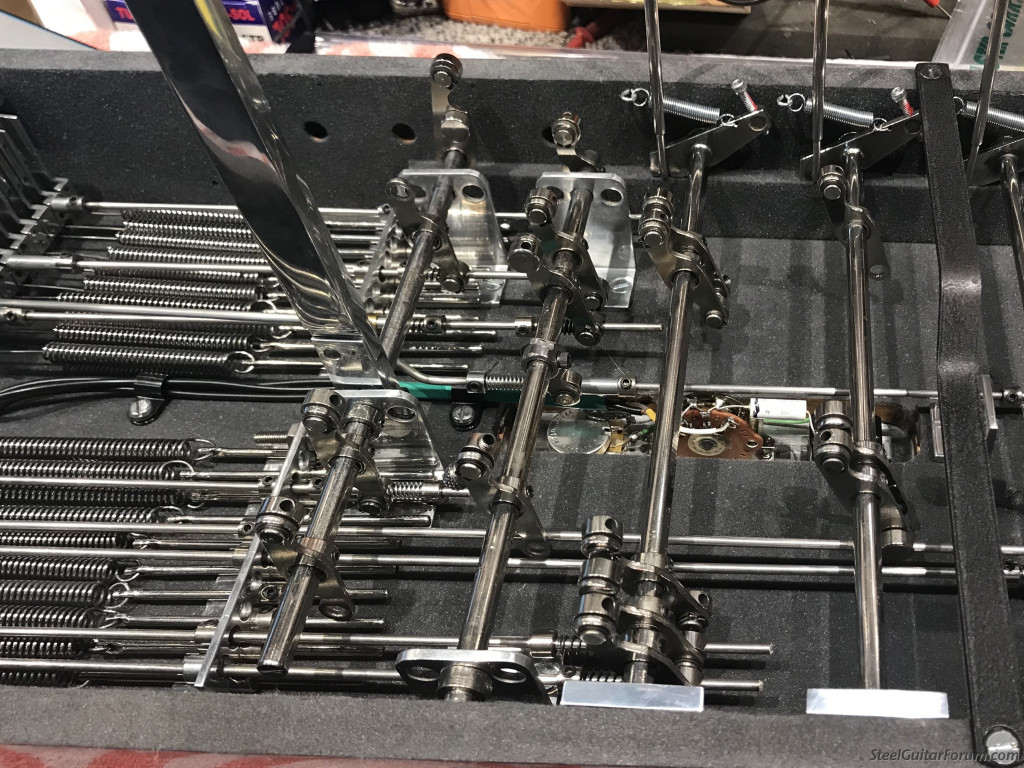

It has begun



_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Henry Matthews


From:
Texarkana, Ark USA
Post  Posted 8 Oct 2019 8:36 am
Reply with quote

Yes Tony, I also remove the pedal return springs because ones usually on push pulls are way to stiff for what they do which makes pedals mushy to me. On my last push pull project, I found some springs at Ace hardware that were same size but were a lot easier or less stiff I mean. They work great to return pedals and can’t even tell they on there plus they are all shined which looks really good.
_________________
Henry Matthews

D-10 1975 Emmons p/p Black Woodneck Bolt-on
D-10 1971 Emmons curtail rosewood
LTD amp, Nashville 400 amp, Hilton pedal, BJS bar, Kyser picks, Live steel Strings. No effects, doodads or stomp boxes.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post  Posted 8 Oct 2019 8:38 am
Reply with quote

Henry Matthews wrote:
Yes Tony, I also remove the pedal return springs because ones usually on push pulls are way to stiff for what they do which makes pedals mushy to me. On my last push pull project, I found some springs at Ace hardware that were same size but were a lot easier or less stiff I mean. They work great to return pedals and can’t even tell they on there plus they are all shined which looks really good.


McMaster Carr is another great resource to find springs in every size and tension you may need. Plus they have all the hardware in the world too.

Cheers
_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Henry Matthews


From:
Texarkana, Ark USA
Post  Posted 8 Oct 2019 9:18 am
Reply with quote

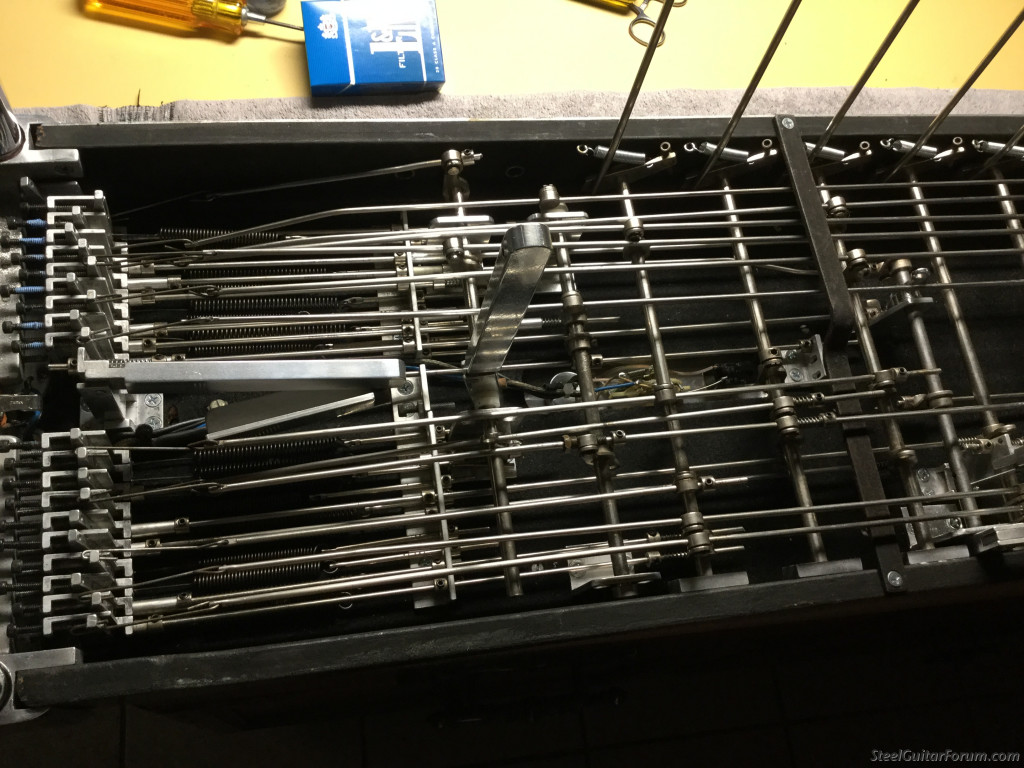

Thanks Mike, I’ll check them out. Here’s couple pics of one I just finished. It had 40 extra holes in cabinet and someone had put those brass ShoBud barrels instead of collars and compression springs, lol. Needless to say, they weren’t working. No way to tune guitar, lol. I patched holes and flocked it. Notice the new pedal return springs I found at Ace and I also put the 6th string whole step lower with the half step split that works off B pedal. I use this a lot and have it on both my guitars and works great on a push pull.


_________________
Henry Matthews

D-10 1975 Emmons p/p Black Woodneck Bolt-on
D-10 1971 Emmons curtail rosewood
LTD amp, Nashville 400 amp, Hilton pedal, BJS bar, Kyser picks, Live steel Strings. No effects, doodads or stomp boxes.
View user's profile Send private message Send e-mail
Tony Glassman


From:
The Great Northwest
Post  Posted 9 Oct 2019 4:43 pm
Reply with quote

Henry Matthews wrote:
Thanks Mike, I’ll check them out. Here’s couple pics of one I just finished. It had 40 extra holes in cabinet and someone had put those brass ShoBud barrels instead of collars and compression springs, lol. Needless to say, they weren’t working. No way to tune guitar, lol. I patched holes and flocked it. Notice the new pedal return springs I found at Ace and I also put the 6th string whole step lower with the half step split that works off B pedal. I use this a lot and have it on both my guitars and works great on a push pull.



Is the 6th string split, the one that is done by adding an extra bell crank pull at the 6th string on pedal A (Bs—> C#s) which prevents the the whole tone drop on string 6 from G# to F# when the KL & A pedal are used together

I’d forgotten about that trick. Wasn’t that a originally a Jimmy Crawford innovation?
View user's profile Send private message
Henry Matthews


From:
Texarkana, Ark USA
Post  Posted 9 Oct 2019 7:14 pm
Reply with quote

Yes, that’s it Tony, I don’t know who came up with the idea but works very well and doesn’t bother A pedal at all.
_________________
Henry Matthews

D-10 1975 Emmons p/p Black Woodneck Bolt-on
D-10 1971 Emmons curtail rosewood
LTD amp, Nashville 400 amp, Hilton pedal, BJS bar, Kyser picks, Live steel Strings. No effects, doodads or stomp boxes.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post  Posted 10 Oct 2019 9:39 am
Reply with quote

Henry Matthews wrote:
Yes, that’s it Tony, I don’t know who came up with the idea but works very well and doesn’t bother A pedal at all.


Yes I do that by request. I believe Billy Knowles showed my that a long time ago. Good mod to add.
_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Mike Scaggs


From:
Nashville, TN
Post  Posted 10 Oct 2019 9:40 am
Reply with quote

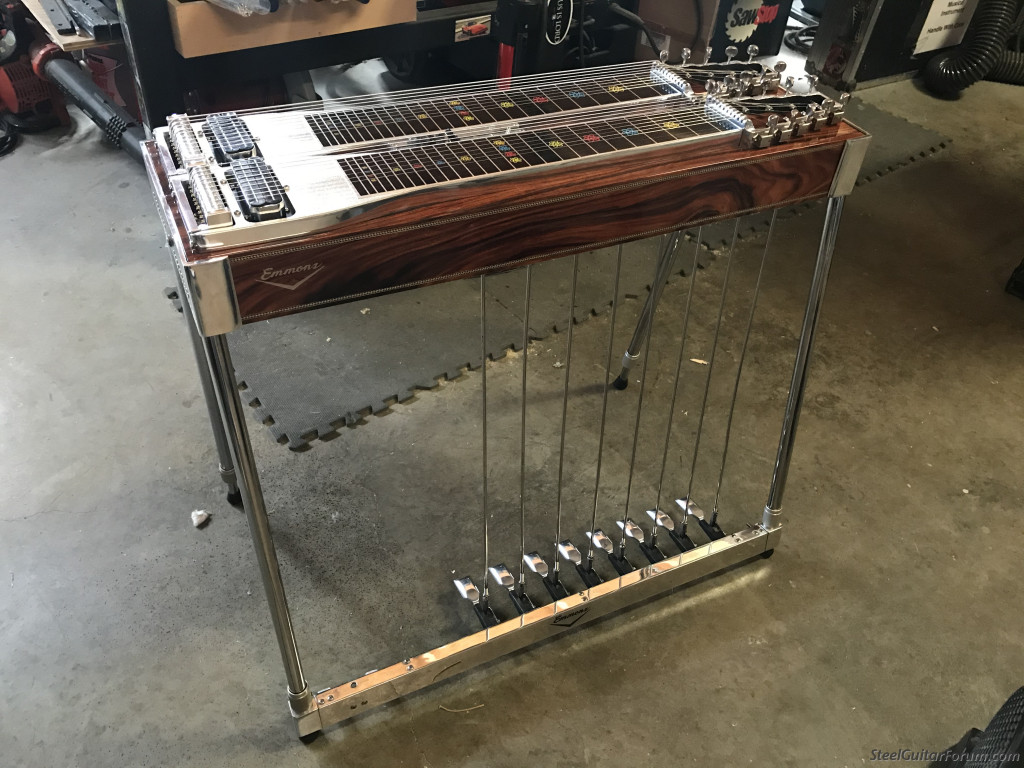

Ole Rosalee is getting close now




_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Russ Tkac


Post  Posted 10 Oct 2019 5:53 pm
Reply with quote

Wonderful Mike!
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post  Posted 13 Oct 2019 5:26 pm
Reply with quote

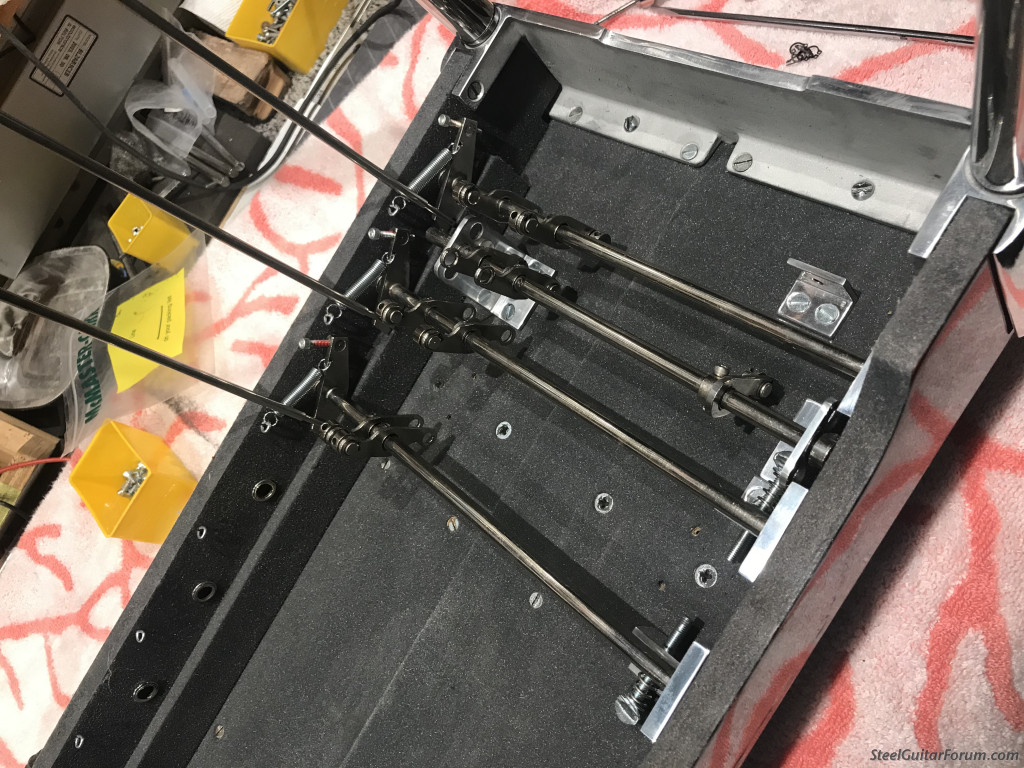

Lowering rods just about done



_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Johnny Cox


From:
Lives in Hallettsville Texas
Post  Posted 14 Oct 2019 3:40 pm
Reply with quote

Henry Matthews wrote:
Yes, that’s it Tony, I don’t know who came up with the idea but works very well and doesn’t bother A pedal at all.

Jimmy Crawford came up with that in the 70s. I showed it to Bolly Knoweles a couple years back.
_________________
Johnny "Dumplin" Cox
"YANKIN' STRINGS & STOMPIN' PEDALS" since 1967.
Sho-Bud and MSA pedal steels. Telonics and Sho-Bud amplifiers and volume pedals.
View user's profile Send private message Send e-mail Visit poster's website
john widgren


From:
wilton CT USA
Post  Posted 16 Oct 2019 5:37 am     Really something
Reply with quote

This is worth repeating: WOW!!

Great Mike!

JW
_________________
Steel Guitar Services:
Live performance and recording. Instruments, repairs and lessons. fresh bait.
(203) 762-8951
widcj@hotmail.com
View user's profile Send private message Send e-mail
Jerry Overstreet


From:
Louisville Ky
Post  Posted 16 Oct 2019 5:53 am
Reply with quote

Mercy! That's almost too pretty to play. Smile
View user's profile Send private message
Skip Edwards


From:
LA,CA
Post  Posted 16 Oct 2019 7:25 am
Reply with quote

Chrome 705's! Good call...
Awesome, Mike.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post  Posted 18 Oct 2019 12:58 pm
Reply with quote

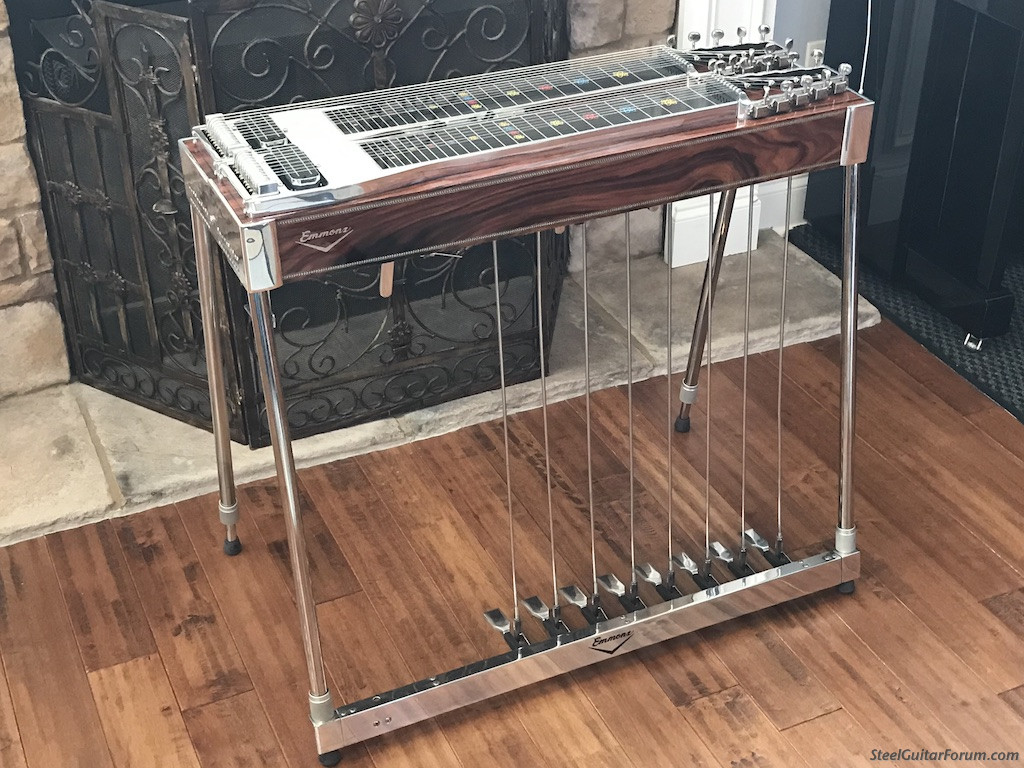

Rosalee is now completed she is looking good and sounding good. This was a fun project that lasted a very long time but now she is ready for her new home and owner. Thanks for all the comments and interest on this guitar. It's always a pleasure hearing from fellow steel guitar player and lovers.

Cheers









_________________
Everything affects everything

It is not the arrow - It's the Indian!

Infinity D-10 9x8, 71 Emmons (Lacquer) D-10 8x5, 77 Emmons D-10 8x5, MSA Legend XL D10 9x8 (coming soon), 64 Twin (JBLs), KT66 Deluxe Reverb, Tremendous Reverb, p2p JTM45... Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
