Author Topic:  Bill Lawrence "Q" Box
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 9 Oct 2019 9:20 am
Reply with quote

Does anyone remember the "Q" Box Bill Lawrence had at one time? What did Bill claim the box did? Thanks.
View user's profile Send private message Send e-mail Visit poster's website
Brian Hollands


From:
Franklin, North Carolina, USA
Post  Posted 9 Oct 2019 9:46 am
Reply with quote

https://www.wildepickups.com/products/filter
He'd called it a "Q filter". I read it then and read it now and still don't know what it does...
_________________
'81 Sho-bud LDG
View user's profile Send private message Send e-mail
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 9 Oct 2019 6:13 pm
Reply with quote

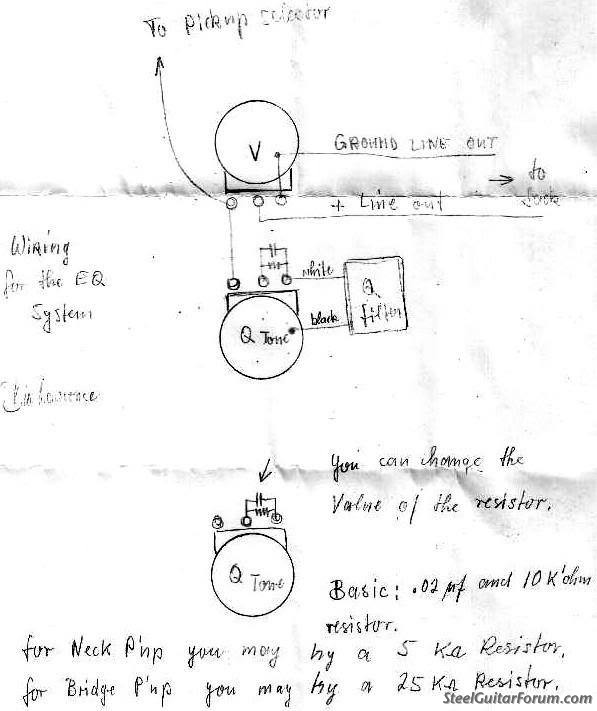

Bill was a interesting guy. Paul Franklin Senior introduced us in St.Louis. Brian, in the picture you see Bill's Q filter, and you also see a resistor and a capacitor. The picture tells me the Q filter is a replacement for the resistor capacitor tone control components. The Q filter has a inductor, capacitor and resistor. The inductor changes the Q of the filter. In very simple terms--- MEANING the inductor makes changes in frequency at the filter's resonate point. The inductor also has other effects on the action of the capacitor and resistor. I see Bill's Q filter as a improved tone control, improved over just a resistor and capacitor.
Very interesting, because I have been working on a special kind of "adjustable" Q filter. What my Q filter will do is solve the problem of a person not being able to get the sound they want. Instead of twisting knobs on a amplifier all night, dial in what you want with the one knob Q control. Like changing pickups by turning the special Q control. Set your tone controls on your amp where you like them. Then if you ever encounter having to change your sound to fit the situation, the Q filter will do that without touching the tone controls on your amp. Actually it is revolutionary. Bill's Q filter is only a one inch cube. The Q filter I am working on is a circuit board 4 inches by 4 inches.
View user's profile Send private message Send e-mail Visit poster's website
Stu Schulman


From:
Ulster Park New Yawk
Post  Posted 10 Oct 2019 12:04 am
Reply with quote

I think that Jon Light showed me one of those,I'd never seen one before.
_________________
Desert Rose S-10 4+5, 8+5 Mullen G2D-10 8+5 Carter D-10 8+5,Blanton SD -10 any amp that isn't broken.Steel Seat.Com seats...Licking paint chips off of Chinese toys continously since the mid 50's.Peavey Nashville 112,and LTD ,Sho-Bud Bill Groner .Telonics volume pedal,and 206 pickups.
View user's profile Send private message Send e-mail
Stu Schulman


From:
Ulster Park New Yawk
Post  Posted 10 Oct 2019 12:17 am
Reply with quote

Keith,When you get ready to sell the new box I would be interested.
_________________
Desert Rose S-10 4+5, 8+5 Mullen G2D-10 8+5 Carter D-10 8+5,Blanton SD -10 any amp that isn't broken.Steel Seat.Com seats...Licking paint chips off of Chinese toys continously since the mid 50's.Peavey Nashville 112,and LTD ,Sho-Bud Bill Groner .Telonics volume pedal,and 206 pickups.
View user's profile Send private message Send e-mail
Georg Sørtun


From:
Mandal, VA, Norway & Weeki Wachee, FL, USA
Post  Posted 10 Oct 2019 1:43 am
Reply with quote

Keith Hilton wrote:
The Q filter I am working on is a circuit board 4 inches by 4 inches.
Active or passive?
View user's profile Send private message Send e-mail Visit poster's website
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 10 Oct 2019 5:21 am
Reply with quote

Georg---Active!
View user's profile Send private message Send e-mail Visit poster's website
David Nugent


From:
Gum Spring, Va.
Post  Posted 10 Oct 2019 6:20 am
Reply with quote

I noticed that on most of the Quilter 'Pro Block' heads they feature a 'Tri-Q' knob in place of the three band EQ, is this intended for a similar purpose?
View user's profile Send private message
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 10 Oct 2019 12:46 pm
Reply with quote

David, "The Q Factor" is defined as:
The Q, quality factor, of a resonant circuit is a measure of the “goodness” or quality of a resonant circuit. A higher value for this figure of merit corresponds to a more narrow bandwith, which is desirable in many applications. More formally, Q is the ratio of reactive power to average power in the circuit reactance and resistance, respectively.
The Q factor is somewhat different than the EQ, although both alter the frequency response.
The circuit I am working on can change the entire timbre of the sine wave produced by a guitar. Think of it this way, it would be like changing the pickup on your guitar, only with the knob on a electronic circuit. Like changing the sound of a humbucking pickup to the sound a single coil. Like changing the number of coils on a pickup, only doing it with the knob on a electronic circuit. Almost as good as a cure for cancer.
View user's profile Send private message Send e-mail Visit poster's website
Tom Campbell


From:
Houston, Texas, USA
Post  Posted 10 Oct 2019 1:35 pm
Reply with quote

Is this similar to the Sarno Freeloader or Black box.
Both of these units interact with the pickups coils vs after the signal is produced.
View user's profile Send private message Send e-mail
Michael Brebes


From:
Northridge CA
Post  Posted 10 Oct 2019 5:08 pm
Reply with quote

My guess is that it was a notch filter, where the inductor and capacitor set up a frequency for the notch filter. With a potentiometer, it would make it possible to adjust the depth of the notch filter. The notch was probably somewhere in the mid frequencies.
_________________
Michael Brebes
Instrument/amp/ pickup repair
MSA D10 Classic/Rickenbacher B6/
Dickerson MOTS/Dobro D32 Hawaiian/
Goldtone Paul Beard Reso

Mesa Boogie Studio Pre/Hafler 3000
RP1/MPX100
View user's profile Send private message Send e-mail
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 10 Oct 2019 7:25 pm
Reply with quote

Tom, nothing like the Freeloader or Black Box, they are totally different.
Michael, not like a notch filter. Totally different than a low pass, high pass, band pass, or notch filter.
View user's profile Send private message Send e-mail Visit poster's website
Dave Mudgett


From:
Central Pennsylvania
Post  Posted 10 Oct 2019 8:08 pm
Reply with quote

Technically, to an electrical engineer, the Q-factor is generally defined as the ratio of the resonant frequency of an RLC (Resistance-Inductance-Capacitance) filter to the bandwith of the resonant peak of said filter, i.e., fr/Δf, where fr is the center frequency of the resonance peak and Δf is frequency difference between the one-half amplitude points. As the Q goes up, the resonant peak gets narrower, in a relative sense, so that the filter emphasizes or deemphasizes a relatively narrower band of frequencies, depending how it's used in the circuit.

Traditional guitar pickups are natural RLC filters (as are speakers), and have one or more varyingly strong resonant peaks that define important parts of the sound of the pickup. In a series RLC circuit, Q is proportional to the square root of inductance, and inversely proportional to resistance times the square root of capacitance - i.e., Q = sqrt(L/C)/R. So, other things being the same, hotter-wound pickups (higher resistance R) tend to have lower Q (and a broader resonant peak) than lower-wound pickups (lower resistance). The idea of inserting a separate RLC filter is to modify the resonant peak(s). Given a fixed inductance L, the overall resonant peak can be broadened or sharpened by modifying R and C. How it affects the sound depends on how it's inserted in the circuit - it can be inserted to emphasize the peaks' frequencies or deemphasize them.

I had one of Bill's old, old Q filters in a guitar years ago - worked as advertised. It used the tone pot as a variable resistor, with the tone capacitor, to significantly modify the overall response of the guitar. I used it mainly to sharpen up the response of a humbucker guitar.

I would talk to Bill at NAMM in Nashville whenever I would go, several times. Cool guy, I always enjoyed talking with him. His pickups are different in the sense that he treated the inductance as a significant design parameter, so you can't generalize about the sound of his pickups based on resistance measurements alone. As well as being a fine musician, he was a true electrical engineer, and I guess it takes one to know one, ha.

Quote:
Is this similar to the Sarno Freeloader or Black box.

I guess Brad should be the final word on this, but I believe they are totally different. The Freeloader presents a variable input impedance load to the pickup, I'm pretty sure there is no inductor in there. I believe the Black Box with variable input impedance control is pretty much the same type of thing, but based on tubes instead of solid-state.
View user's profile Send private message Send e-mail
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 11 Oct 2019 9:50 am
Reply with quote

Right on Dave, I could not of explained it better. The biggest difference in Bill Lawrence's Q filter and the one I am building is mine is active, and Bill's was passive.
View user's profile Send private message Send e-mail Visit poster's website
Jerry Roller


From:
Van Buren, Arkansas USA
Post  Posted 11 Oct 2019 11:36 am
Reply with quote

Hey Keith, if I name it can I have one? That's how I got my Hil-tone!
Jerry
_________________
http://www.littleoprey.org/
View user's profile Send private message Send e-mail Visit poster's website
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 11 Oct 2019 4:21 pm
Reply with quote

Yes, Jerry, if you name the new Q filter box I am building you get one.
View user's profile Send private message Send e-mail Visit poster's website
Lee Baucum


From:
McAllen, Texas (Extreme South) The Final Frontier
Post  Posted 11 Oct 2019 8:50 pm
Reply with quote

Q-Box
View user's profile Send private message Send e-mail
Michael Brebes


From:
Northridge CA
Post  Posted 12 Oct 2019 7:47 am
Reply with quote

According to the schematic and description, it's got to be a modified notch filter. It was used to thin out the sound of a humbucker without having to split coils.

_________________
Michael Brebes
Instrument/amp/ pickup repair
MSA D10 Classic/Rickenbacher B6/
Dickerson MOTS/Dobro D32 Hawaiian/
Goldtone Paul Beard Reso

Mesa Boogie Studio Pre/Hafler 3000
RP1/MPX100
View user's profile Send private message Send e-mail
Peter Harris


From:
South Australia, Australia
Post  Posted 13 Oct 2019 5:01 am
Reply with quote

Keith Hilton wrote:
Yes, Jerry, if you name the new Q filter box I am building you get one.


Probably more of a Mission Statement, but....

" Go to the head of the Q... "

Cool


...then there's " The Q Starts Here ! "

Cool
_________________
If my wife is reading this, I don't have much stuff....really!
View user's profile Send private message Send e-mail
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 15 Oct 2019 6:23 pm
Reply with quote

Michael, I think you are correct. I personally think Bill Lawrence was trying to make a humbucker sound like a single coil. Maybe that and more. The key is the inductor. Capacitors deal with voltage, inductors deal with current.
When you combine capacitors, and inductors, magic sometimes happens. It seems to me you don't see inductors used as much as you used to. I suppose because of cost and size. Bill Lawrence was highly respected by everyone in the guitar world. Hartley Peavey once told me how he respected Bill's work. Bill was not easy to understand. When we talked about pickups, Bill launched into a dissertation about magnetism and eddie currents. I could not get a word in edge-ways.
View user's profile Send private message Send e-mail Visit poster's website
Patrick Huey


From:
Nacogdoches, Texas, USA
Post  Posted 16 Oct 2019 6:04 am
Reply with quote

Jerry Roller wrote:
Hey Keith, if I name it can I have one? That's how I got my Hil-tone!
Jerry

Jerry,
How about the “Hilton Q “Roller”
Roll them tones with the Hilton Q Roller! Get yours today at Roller music!
_________________
Pre RP Mullen D10 8/7, Carter S-10 3/4, previous Cougar SD-10 3/4 & GFI S-10 3/2, Peavey Session 500, previous Peavey Nashville 400, Boss DD-5, Hilton Digital Sustain, '88 Les Paul Custom, Fender Stratocaster, Takamine acoustics, Marshall amps, Boss effects, Ibanez Tube Screamer, and it all started with an old cranky worn out Kay acoustic you could slide a Mack truck between the strings and fretboard on!!
View user's profile Send private message Send e-mail
Donny Hinson


From:
Glen Burnie, Md. U.S.A.
Post  Posted 16 Oct 2019 8:10 am
Reply with quote

Does this mean that a Q-filter might do, essentially, the same thing as a capable (20+ band) graphic EQ? What are the performance differences between a constant Q-filter and a proportional Q-filter?
View user's profile Send private message Send e-mail
Keith Hilton


From:
248 Laurel Road Ozark, Missouri 65721
Post  Posted 16 Oct 2019 6:07 pm
Reply with quote

There are many types of filters,a Q-filter, and graphic EQ are two different types of filters. The term Q-filter is different than a EQ filter. With that said, a EQ filter could be set to have a similar response as a Q filter. In this post David Nugent said; "I noticed that on most of the Quilter Pro Block heads they feature a Tri-Q knob in place of the three band EQ."
In this post Dave Mudgett gave a great technical description of a Q-filter. One thing missing from the technical description is---A Q-filter does not always have to have a inductor in the components. For example: Take a 2nd Order Sallen Key filter, with adjustable gain components. Altering the gain components will change the Q of the filter. In the case of the 2nd order Sallen Key Filter, there is no inductor, only a OP Amp, with resistors and capacitors. Granted, most of the old time filters involving the Q factor had inductors. The 2nd Order Sallen Key filter with adjustable gain is only one of many ways to change the Q of a filter.
Donny, typically a EQ filter is a filter with sliding adjustable frequencies. The Q factor of a filter is a totally different thing than an EQ filter. I say different, but can be made somewhat similar. The big difference is how the Q of the filter is adjusted. For example: With the 2nd order Sallen Key filter, the Q is adjusted with variable gain. With the EQ filter, you have to slide a bunch of frequency sliders. Other types of filters have different ways of altering the Q of that particular filter. I hope I have made it clear for you Donny.
View user's profile Send private message Send e-mail Visit poster's website
Dennis Detweiler


From:
Solon, Iowa, US
Post  Posted 16 Oct 2019 8:11 pm
Reply with quote

"Q Tone"
_________________
1976 Birdseye U-12 MSA with Telonics 427 pickup, 1975 Birdseye U-12 MSA with Telonics X-12 pickup, Revelation Preamp, TC Electronic M-350 Processor, Crown XLS 1002 Stereo Rack Head, 15" Eminence EPS-15C, ShoBud Pedal, 1949 Epiphone D-8. And, too much extra gear.
View user's profile Send private message Send e-mail
