Author Topic:  Split the Twin
Greg Johnson


From:
Greencastle, Pennsylvania, USA
Post  Posted 4 Jun 2019 9:04 am
Reply with quote

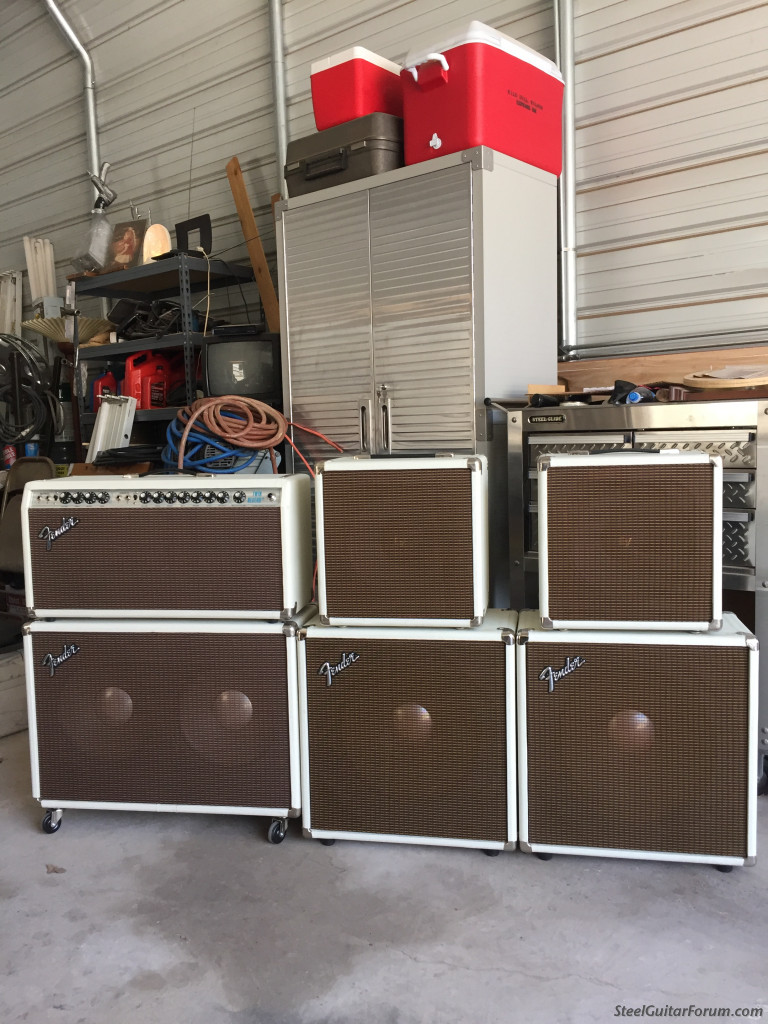

I have chased tone for a couple years now. Peavey, Evans, Fenders new and old and I came to the conclusion I just like the sound of my old Twin. But, I'm to old to lug close 70 lbs 200 plus nights a year. So, I found KC of Guitar Direct Cabinets and he put together a really nice super well made set so I could split the weight. I loaded it with the Travis Toy TT 15 and it sounds 'Fantastic' right out of the box. I can't wait till it's broke in. Take a look. Shout Out to KC and Travis Toy and Eminence. (Pic was taken before speaker install).

_________________
MSA CLassic SD-10
19 Show Pro LDG
79 Super Pro
Evans FET 500
Evans SE 200
Fender Twin 65 RI
American Takimine
View user's profile Send private message Send e-mail
Erv Niehaus


From:
Litchfield, MN, USA
Post  Posted 4 Jun 2019 9:25 am
Reply with quote

Is that an original black face twin?
Erv
View user's profile Send private message Send e-mail
Greg Johnson


From:
Greencastle, Pennsylvania, USA
Post  Posted 4 Jun 2019 9:28 am     twin
Reply with quote

No Erv it is an older RI that I had some work done to it a few years back
_________________
MSA CLassic SD-10
19 Show Pro LDG
79 Super Pro
Evans FET 500
Evans SE 200
Fender Twin 65 RI
American Takimine
View user's profile Send private message Send e-mail
Erv Niehaus


From:
Litchfield, MN, USA
Post  Posted 4 Jun 2019 10:10 am
Reply with quote

Greg,
That's what I suspected.
I have an early silver face that I bought in approx. 1967.
I ordered it from Fender with twin JBL speakers.
It sounds great but, you talk about heavy!! Whoa!
Erv
View user's profile Send private message Send e-mail
Richard Sinkler


From:
aka: Rusty Strings -- Oakdale, California
Post  Posted 4 Jun 2019 10:40 am
Reply with quote

Erv Niehaus wrote:
Greg,
That's what I suspected.
I have an early silver face that I bought in approx. 1967.
I ordered it from Fender with twin JBL speakers.
It sounds great but, you talk about heavy!! Whoa!
Erv


My first amp was a Twin with JBL's. My arms are a little longer than normal because of it. Used to carry it in one hand and a D10 ZB (big-time weight, as heavy as the twin I think) in the other, up a flight of stairs into my apartment. Of course, I was about 21 at the time.
_________________
CLICK HERE to visit my website with Mickey Adams videos.
View user's profile Send private message Send e-mail Visit poster's website
Erv Niehaus


From:
Litchfield, MN, USA
Post  Posted 4 Jun 2019 1:01 pm
Reply with quote

Richard,
You deserve a Tee Shirt with an S on the front! Very Happy
Erv
View user's profile Send private message Send e-mail
Bobby Nelson


From:
North Carolina, USA
Post  Posted 5 Jun 2019 3:14 am
Reply with quote



I had Rick Johnson make these. The other thing is that it sounds better with a superior baffle board - I suppose I should get a pic of them loaded with the Twin and JBLs.
View user's profile Send private message Send e-mail
Don Mogle


From:
Fort Worth, TX, USA
Post  Posted 5 Jun 2019 4:21 am     Split Cabinets
Reply with quote

That's beautiful guys!

Bobby: What was used for the baffle? Birch plywood? Just curious.

Thanks,

Don
View user's profile Send private message Send e-mail
Bobby Nelson


From:
North Carolina, USA
Post  Posted 5 Jun 2019 1:10 pm
Reply with quote

Yes Don - Birch ply. The original is some kind of heavy dead pasteboard.
View user's profile Send private message Send e-mail
Bill A. Moore


From:
Silver City, New Mexico, USA
Post  Posted 5 Jun 2019 1:44 pm
Reply with quote

Greg, could you tell me the height of the head cab?
I'm going to split one up, and want enough clearance for the tank, but no taller than really necessary.
View user's profile Send private message Send e-mail
Don Mogle


From:
Fort Worth, TX, USA
Post  Posted 5 Jun 2019 2:52 pm     Split Cabs
Reply with quote

Bobby,

Yes! Please do post more pictures with the Twin amp and JBLs installed--front and back.

Thanks for the response regarding the baffle.

Don
View user's profile Send private message Send e-mail
Greg Johnson


From:
Greencastle, Pennsylvania, USA
Post  Posted 5 Jun 2019 3:52 pm     Twin Cab split
Reply with quote

Quote:
Greg, could you tell me the height of the head cab?
I'm going to split one up, and want enough clearance for the tank, but no taller than really necessary.


Bill, it is 10.25 the reverb tank fits, But I would go to 11" if to do over.
_________________
MSA CLassic SD-10
19 Show Pro LDG
79 Super Pro
Evans FET 500
Evans SE 200
Fender Twin 65 RI
American Takimine
View user's profile Send private message Send e-mail
Bobby Nelson


From:
North Carolina, USA
Post  Posted 6 Jun 2019 12:50 am
Reply with quote

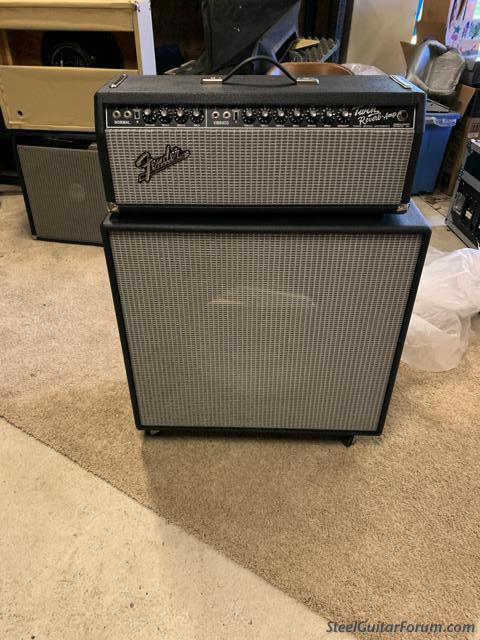

Here it is kind of jammed back into it's little space I have for it - my wife kind of mandates that all "man stuff" be crammed into the "man's room" haha! I'll pull it out sometime and get proper pics front and back. I have a Fender badge for the spkr cab, but the grill cloth floats about 1/2" away from the baffle, so I didn't put it on. There's nothing about the spkr cab that's Fender anyway - it's Johnson/JBL.
View user's profile Send private message Send e-mail
Bobby Nelson


From:
North Carolina, USA
Post  Posted 6 Jun 2019 12:59 am
Reply with quote

Another advantage of this set up, is that when playing in a live situation, you can have your speakers behind you, and your amp right next to you so you don't have to get up to change the settings. I had a 3", and a 10" speaker cord made for these 2 configurations. I'm not playing out yet, but plan to have a stand for each when I do.

I plan to get a Vibrosonic in the future, and will have the same thing done with it, as I am just too old weak and ugly to pick up a beast like these things loaded with JBLs.
View user's profile Send private message Send e-mail
Bill A. Moore


From:
Silver City, New Mexico, USA
Post  Posted 6 Jun 2019 4:50 am
Reply with quote

Thanks, Greg!
View user's profile Send private message Send e-mail
Mark McCornack


From:
California, USA
Post  Posted 7 Jun 2019 9:10 pm
Reply with quote

Hey Bill,
You might take a look at Mojotone on line. They have a Twin cab (their sku #4000165) that looks nice if you don’t want to build one. Check their site and that sku number and you can get the dimensions.
I was about to do a split on my Twin RI, and then decided to swap out the 2-10’s baffle for a single Eminence neo 15 “. That brought the weight down enough that I can bare lugging it, though I’m not shlepping it 200 nights a year like you.
Good luck! Smile
Mark
View user's profile Send private message Send e-mail
Bill A. Moore


From:
Silver City, New Mexico, USA
Post  Posted 9 Jun 2019 5:36 am
Reply with quote

Thanks, Mark!
I originally intended my "Twin" clone to be a head. I built it with switchable impedance, and even a line out, but traded a friend for a Mojo cab he didn't need. I now have a silverface Twin, with a junk cab, and plan to install it in the Mojo cab with the JBL's.
(I will probably build my cab, I enjoy doing them!)
View user's profile Send private message Send e-mail
Bobby Nelson


From:
North Carolina, USA
Post  Posted 12 Jun 2019 12:19 am
Reply with quote

PM sent
View user's profile Send private message Send e-mail
Bill L. Wilson


From:
Oklahoma, USA
Post  Posted 15 Jun 2019 8:54 am     Options Are Always Good.
Reply with quote

I built my Twin head cab 13” tall and no problems with the reverb tank. The head weighs in at 52lbs. Any combination of these cabs is significantly lighter than the speakers in the same cab with the head.
View user's profile Send private message Send e-mail
Peter Leavenworth


From:
Madbury, New Hampshire, USA
Post  Posted 16 Jun 2019 5:49 am     Split the Twin
Reply with quote

Just a reminder that Fender made lots of Dual Showman heads which run anywhere between $700 - $1300 that are basically the same amp as a Twin. I think they’re wonderful steel amps, with beautiful reverb - but they still weigh around 40 lbs.
On the other hand, if you already own a Twin combo, renovating it into two components might be easier than selling it since they weigh so much.
_________________
1996 Mullen PRP D-10, 1974 Emmons D-10, 1976 Emmons D-10, early 70s Emmons S-10, Carter S-10, Milkman Sideman head w/Telonics 15" speaker, Fender DeVille 410, Music Man HD130, Wechter/Scheerhorn and Beard Dobros, 1962 Supro lap steel, Gibson 1939 RB-11 banjo, Gibson 1978 RB-250 banjo
View user's profile Send private message Send e-mail
