Post new topic Tommy’s Volume & Tone Control alternative
Reply to topic
Author Topic:  Tommy’s Volume & Tone Control alternative
tom anderson


From:
leawood, ks., usa
Post  Posted 8 Feb 2019 4:00 pm
Reply with quote

This is a volume tone control that clips on the leg of your guitar to replace using a volume pedal. I make two-one with a 250K pot for single coil pickups and one with a 500K pot for dual coil pickups. Ive added a Golden Age Treble bleed circuit ceramic capacitor to prevent treble drop off at higher volumes and a paper-in-oil tone capacitor for a vintage feel.
I got the idea for this after getting a Fender pedal steel with the volume/tone controls on the neck. All of a sudden I didn’t miss my foot volume pedal, and I was able to play with two feet. There are a lot of bad habits or impediments to one’s playing that the foot volume pedal can add. I didn’t want to drill holes in the body of my guitar so I came up with this:


It comes with a clip to mount on the leg of your guitar (I need the diameter of your guitar’s leg) or a Velcro strip to mount it on the end plate or deck.
Satisfaction is guaranteed with a 7 day return policy (just pay shipping and I refund the cost of the pedal) and a 1 year guarantee on wiring and parts. $100.00 plus $7.00 shipping. PayPal is OK.
I don’t have any of these made up so there will be a small delay while I get the parts. Steel players are so wedded to their volume pedals that I don’t know how much interest there is. I also may change the body color to a pearlized white for better visibility.
View user's profile Send private message Send e-mail
Billy Murdoch


From:
Glasgow, Scotland, U.K.
Post  Posted 9 Feb 2019 1:54 am
Reply with quote

I cannot imagine a steel player discarding His volume pedal at all.A volume pedal is used continually when playing and can take many years to become expert at controlling the pedal properly.
There may be some interest in this device if used with a volume pedal as a way of remotely setting Your amp volume and tone.
Best regards
Billy
View user's profile Send private message Send e-mail
Jim Cooley


From:
The 'Ville, Texas, USA
Post  Posted 9 Feb 2019 7:38 am
Reply with quote

I wonder if it could be useful for those who are learning to use a volume pedal without constantly pumping it. It's a common problem. I used to punish mine sometimes.

Does the tone control have a "neutral" position where it has no effect on the tone? Is it true bypass?
View user's profile Send private message Send e-mail
tom anderson


From:
leawood, ks., usa
Post  Posted 9 Feb 2019 11:11 am
Reply with quote

Over pumping your volume pedal is one of the problems. Also picking the string and then swelling the volume. Also coming off on the volume pedal to hide your mistakes. The tone control isn’t a true bypass, but turned all the way down it seems to be off. I could just make a volume only pedal. $90.00
View user's profile Send private message Send e-mail
b0b


From:
Cloverdale, CA
Post  Posted 9 Feb 2019 12:05 pm
Reply with quote

Great idea! Pedal steel guitarists lost the volume and tone controls decades ago. I never quite understood that. Emmons and Sho~Bud had them. All lap and console steels still have them.

This is not a substitute for a volume pedal. I can see using it in addition to a VP to dial back the overall volume in certain situations. Perhaps that's a good discussion for the Electronics section of the forum (not here).
_________________
-𝕓𝕆𝕓- (SGF Admin) Robert P. Lee ♪ @b0bleeCopedentsRecordings
View user's profile Send private message Send e-mail Visit poster's website
Peter Freiberger


From:
California, USA
Post  Posted 9 Feb 2019 6:22 pm
Reply with quote

What is the difference or advantage of this over a Matchbox?
View user's profile Send private message Send e-mail
Fred Treece


From:
California, USA
Post  Posted 13 Feb 2019 9:08 am
Reply with quote

Matchbox is a DI. I think the same company makes preamps too. Do they make a straight volume/tone control box? I have seen attenuators for twice the price as well as less than half.
View user's profile Send private message Send e-mail
Jack Stoner


From:
Inverness, Fl
Post  Posted 2 Mar 2019 2:32 pm
Reply with quote

I like this. If I didn't already have both tone and volume controls I would consider this. I have a Goodrich Match-Bro that has a tone control in the effect off position. I also use a POD X3 for effects only. The POD X3 has a level control and I can set max level there.

BTW, Tom, its been several years since we were both at a KC steel jam.
_________________
Franklin D-10, Hilton VP, POD X3, MatchBro, Steelaire, Nashville 112, Cakewalk Sonar and Studio One Pro V4.5 DAWs, MOTU 4pre
R.O.P.E. Member
View user's profile Send private message Send e-mail
tom anderson


From:
leawood, ks., usa
Post  Posted 2 Mar 2019 5:09 pm
Reply with quote

Hi Jack! It’s nice to hear from you. Let’s get together next time you are in town.
Another member texted me a link for a John Pearce volume control that is less than I can buy parts for. If I would have seen this I probably would have tried it. I don’t know what the volume pot is rated at but if price is an issue I would look at it. It is volume only.
https://bb.steelguitarforum.com/viewtopic.php?t=239761&highlight=
All of my guitars but one are single coil but I have recently been playing the 500K with those guitars. The sound is very in your face but the volume control has slightly less travel or taper in increasing volume. I do like the tone.
Last week I played a gig with the volume/tone control and did not use a volume pedal. The only song that I missed the volume pedal on was Sleepwalk and seriously-how many gigs are you asked to play Sleepwalk? I had to talk the band into it as a set-ender. The other instrumental we did was Buckaroo. No need or time for a volume pedal there. My point is try playing uptempo stuff without a volume pedal at home. Give it a week or two and see how much you miss it.
Finally, some have suggested that this be used with a volume pedal as a quick boost or damping of overall volume. I did wish I’d had both on Sleepwalk and I intend to experiment using both. With the treble bleed cap I don’t detect a loss in presence. Try going straight from your pedal to the amp and then switch to going from the guitar direct to the amp. When I do this I have to dial the volume WAY down. I like being able to control that at the guitar. I also notice a change in the shape of the sound from my standard floor volume pedal. Just some thoughts.


Last edited by tom anderson on 3 Mar 2019 7:40 am; edited 2 times in total
View user's profile Send private message Send e-mail
Jerry Overstreet


From:
Louisville Ky
Post  Posted 2 Mar 2019 6:16 pm
Reply with quote

Great idea and great looking product Tom. Unlike the Pearse unit, which is just volume, you are offering a steel player friendly volume and tone unit with both 250K and 500K ohm values that clips to the steel leg...and built by a forum brother.

Besides steel, I can see several uses for this device. F.I. with a reso or acoustic guitar or other instrument that just has a condenser or piezo without any controls. Can use the clip to attach to a mic stand etc.

As one who builds a few devices myself, I can attest to the investment in quality enclosures, jacks and controls. Good materials are costly. Price is very fair considering the cost of other similar devices.

I wish you good luck and success with these.
View user's profile Send private message
tom anderson


From:
leawood, ks., usa
Post  Posted 7 May 2019 3:50 pm
Reply with quote

Since this is in a new index site please move it to the top.
View user's profile Send private message Send e-mail
tom anderson


From:
leawood, ks., usa
Post  Posted 16 May 2019 4:17 pm
Reply with quote

TTT
I noticed all of my parts prices went up by 10% on the pedals I made this week. I’m holding the price now but if tariffs become a factor I’ll probably have to increase the price.
View user's profile Send private message Send e-mail
Will Brown


From:
Oklahoma, USA
Post  Posted 18 May 2019 9:29 am     volume&tone
Reply with quote

Hello I just received one of these volume & tone boxes from Tom today. It is a great little box made really good and works perfect and sounds great. So if you need a volume & tone box at a great price don't hesitate to buy this they are great Thanks Tom for a great product
View user's profile Send private message Send e-mail Yahoo Messenger
Will Brown


From:
Oklahoma, USA
Post  Posted 19 May 2019 11:45 am     volume & tone
Reply with quote

TO THE TOP for a great product this is made great works fantastic and a really reasonable price if you need a volume & tone for your guitar you cant go wrong with this I have one and they are a great unit
View user's profile Send private message Send e-mail Yahoo Messenger
Tommy Auldridge


From:
Maryland, USA
Post  Posted 20 May 2019 5:19 am     Single coil/ dual coil ?
Reply with quote

Tom: I think I might want one of these. How can I tell the difference between single coil and dual coil? Thanks, Tommy.....
View user's profile Send private message Send e-mail
Tom Mortensen


From:
Nashville TN
Post  Posted 27 May 2019 7:25 am
Reply with quote

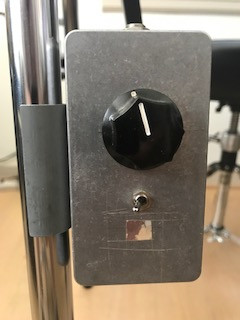

I built a similar accessory a few years ago.
The purpose was to be able to add a switchable volume knob to any pedal steel so that I could could control the input level to overdrive/distortion stomp boxes that I wanted to place before volume pedal.
This box has a 250k pot and an in/out switch.
Clips on the leg.
I'm not building or selling these, just wanted to say that there is value to having a volume knob on a steel.

View user's profile Send private message Send e-mail
