Post new topic New lap steel.
Reply to topic
Author Topic:  New lap steel.
Derrick Frank


From:
Berkshire, England
Post Posted 21 Jul 2018 2:42 am     Reply with quote

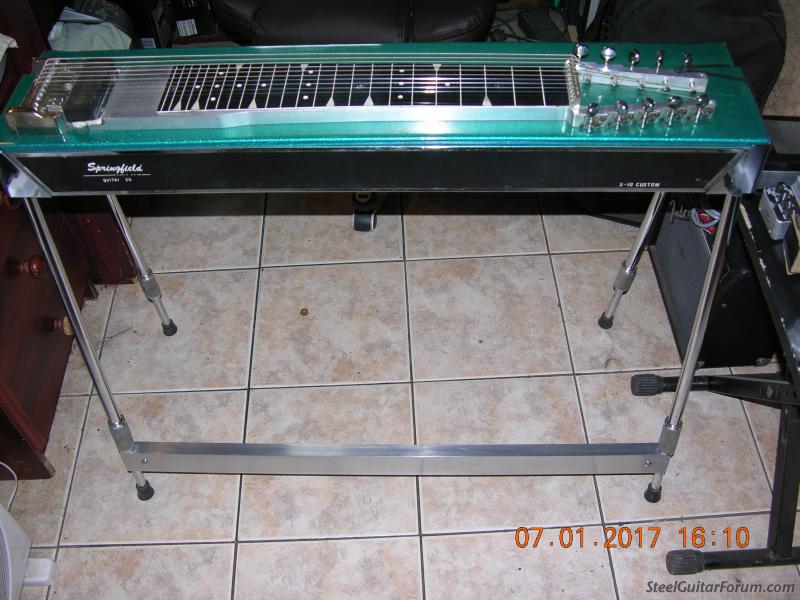

This is the steel I now use, don't play pedal anymore.
Was built in Scotland sometime in 70's was pedal but hard to keep in tune, sounded more like bagpipes so I gutted it and it's now a C6 10 string, plays well
View user's profile Send private message Send e-mail
Mick Hearn


From:
United Kingdom
Post Posted 21 Jul 2018 12:35 pm     Reply with quote

Looks good mate - are we going to hear it?
_________________
ShoBud 6139, National D8 Console, ZB student, George Boards Lap Steel, National New Yorker.
View user's profile Send private message Send e-mail
Derrick Frank


From:
Berkshire, England
Post Posted 21 Jul 2018 1:35 pm     Reply with quote

Soon Mike, just trying to sort out the right tunes to add to my Hawaiian Cd, it's getting the sound right from western swing to the soft sound of Hawaii.
Need to be able to change the sound quick when on stage with Bill.
View user's profile Send private message Send e-mail
Mick Hearn


From:
United Kingdom
Post Posted 23 Jul 2018 2:59 pm     Reply with quote

The National Console and some of the New Yorkers use a rotary switch with a different value resistor on two of the positions. The Gretsch Country Gent also has a similar Gibson type switch that uses the same method. Perhaps someone on the blog could tell you what value resistors are used.
_________________
ShoBud 6139, National D8 Console, ZB student, George Boards Lap Steel, National New Yorker.
View user's profile Send private message Send e-mail
Mark Addeo


From:
New Jersey, USA
Post Posted 2 Aug 2018 6:16 am     Reply with quote

Hi all, the Gretsch Country Club has the tone switch which uses .0039uf or .012uf. I find that both of these values are a bit too much. That is why folks refer to this as the "mud" switch. Still, some folks love them. I do love the Country Club guitar though!

If you have the room under the carriage a tone pot with a typical value and an on/off switch to remove the pot from the circuit may be useful. You can pre-set the tone and then just switch it in or out of the circuit.

For a single coil a 250ohm pot with a .047uf cap
For a humbucker a 500ohm pot with a .022uf cap

I have used an angle bracket from the hardware store and an existing undercarriage screw to mount this on some pedal steels. If you are handy with a soldering iron the wiring diagram is easy. Anyway, just a thought.
View user's profile Send private message Send e-mail
