Author Topic:  Speaker Cabinet
Sonny Jenkins

New Braunfels, Tx. 78130
Post  Posted 11 Apr 2017 10:05 am
Reply with quote

I think I am going to try and build my own speaker cabinet for a 15" SICA speaker. While I certainly have the ability to build a nice enclosure, I have no idea as to technical requirements i.e. dimensions, closed vs open, enclosure volume etc. Any suggestions would be VERY much appreciated.
View user's profile Send private message Send e-mail
Bill A. Moore

Silver City, New Mexico, USA
Post  Posted 11 Apr 2017 2:39 pm
Reply with quote

An open backed enclosure really can be any size you want. The small Nashville 400 sized amps sound great.
I built a 5E3 clone last year, and bought a cab off the bay from Rawcabs. It didn't have a knot in it, and was about $160!
I also built a 12" cab for a Bandit project that i used scrap plywood, put together with biscuits, it too sounds fine.

View user's profile Send private message Send e-mail
Michael Remming

Kimberly, Idaho, USA (deceased)
Post  Posted 14 Apr 2017 8:11 am
Reply with quote

Here is a open back cab I built 2 years ago. Please double check the dimension with your speaker, if you decide to build one. I designed it to use Roland Cube 80XL corner protectors, and solid pine. The speaker support plywood is 3/4" because I had some laying around the shop, 1/2" would work as well.

View user's profile Send private message Send e-mail Visit poster's website
Ron Hogan

Nashville, TN, usa
Post  Posted 14 Apr 2017 10:36 am
Reply with quote

Try this guy. Good prices for both 12" and 15".

View user's profile Send private message Send e-mail
Jack Stoner

Inverness, Fl
Post  Posted 14 Apr 2017 12:21 pm
Reply with quote

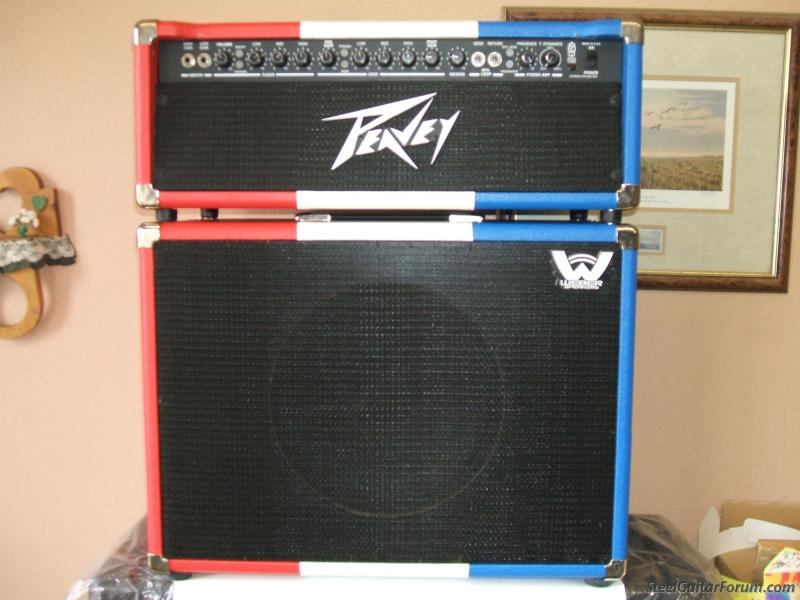

I built a cabinet for my Eminence EPS-15C. It is the same size as a Peavey Nashville 112 except 1" taller to accommodate the 15" speaker. The back is partially open. I used the same dimensions as Peavey used for the bottom back and the same size as the NV112 chassis for the top section. Been using this for several years.
Franklin D-10, Hilton VP, POD X3, MatchBro, Steelaire Rack, EPS-15C, Cakewalk (Sonar) by BandLab and Studio One 4.1 Pro DAWs, MOTU 896mk3 Hybrid
R.O.P.E. Member
View user's profile Send private message Send e-mail
