Post new topic My Lacquer Emmons Resto Phase 1
Goto page 1, 2, 3, 4  Next
Reply to topic
Author Topic:  My Lacquer Emmons Resto Phase 1
Mike Scaggs


From:
Nashville, TN
Post Posted 25 Mar 2017 4:15 am     Reply with quote

Here is a 73 Lacquer / wood neck Emmons in the process of getting a full resto by me. Somewhere along the way someone anodized all the aluminum gold. Well, it's going back to polished aluminum. I'm dropping the cabinet off at Southbound in a few days (same guys who do the finishes on ShowPros) . Now I'm going through all the small parts which are incredibly crusty and dirty. Here are a few pics and a link to all the pics is below.

A big Thank you to Lynn Stafford for the good recommendations and parts I will need

http://www.p2pamps.com/steelguitars












_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com


Last edited by Mike Scaggs on 24 May 2017 4:10 pm; edited 2 times in total
View user's profile Send private message Send e-mail Visit poster's website
Mike Scaggs


From:
Nashville, TN
Post Posted 25 Mar 2017 8:20 am     . Reply with quote

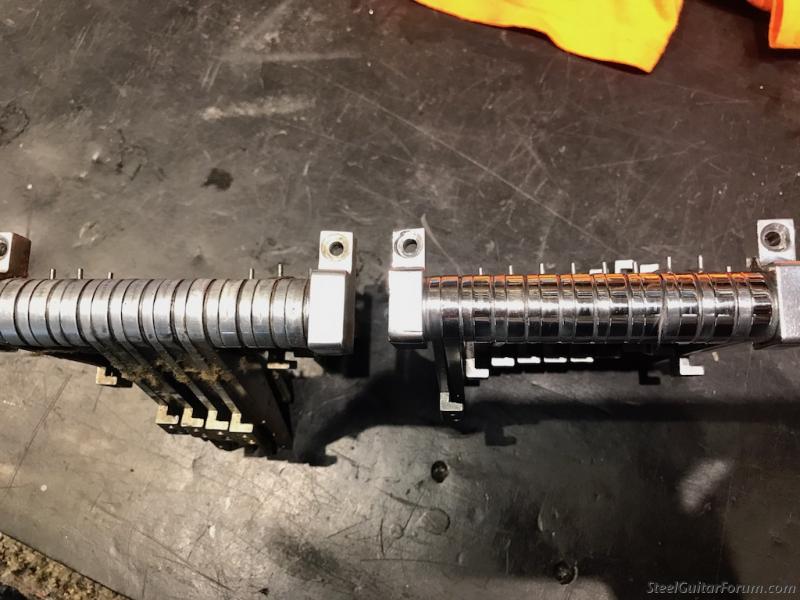

Before and after changer... Amazing what 40+ years will do to a changer. She will play like new soon.






_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
John Brock


From:
Xenia, Ohio
Post Posted 25 Mar 2017 8:24 am     Emmons resto Reply with quote

Shazam!...thats a beauty...good luck on it..
_________________
GFI S10 Nashville 400 Epiphone J200 Kentucky BM650 Mandolin Fender 112 Alvarez 5018 12
Rus-Ler Deluxe
View user's profile Send private message Send e-mail
Don Mogle


From:
Fort Worth, TX, USA
Post Posted 25 Mar 2017 10:58 am     Emmons PP Reply with quote

That looks great Mike! Keep the photos of the restoration coming. I love seeing this kind of stuff.

Don
View user's profile Send private message Send e-mail
Herb Steiner


From:
Spicewood TX 78669
Post Posted 25 Mar 2017 11:31 am     Reply with quote

I kinda like the gold, Mike. Wink
_________________
Herb's Steel Guitar Pages
Texas Steel Guitar Association
Allison String Instruments
My rig: Infinity and Telonics.

Son, we live in a world with walls, and those walls have to be guarded by men with steel guitars. Who's gonna do it? You? You, Lt. Weinberg?
View user's profile Send private message Send e-mail Visit poster's website
Abe Levy


From:
California, USA (Currently in Toronto)
Post Posted 25 Mar 2017 2:15 pm     Reply with quote

Very cool!!
_________________
Emmons, Bigsby, Fender, Clinesmith
View user's profile Send private message Send e-mail
Mike Perlowin


From:
Los Angeles CA
Post Posted 25 Mar 2017 4:05 pm     Reply with quote

Herb Steiner wrote:
I kinda like the gold, Mike. Wink


Me too. I think you should keep it. Especially if it goes well wth the wood stain you will be using.
_________________
My steels are Magnificent! Stupendous! Awesome!
-----------
Please visit my web site and Soundcloud page and listen to the music posted there.
http://www.mikeperlowin.com http://soundcloud.com/mike-perlowin
View user's profile Send private message Send e-mail Visit poster's website
Chris Lucker


From:
Los Angeles, California USA
Post Posted 25 Mar 2017 4:23 pm     Reply with quote

What is going to happen to the fit of the rollers in the roller nut slots if the anodized surfaces are removed?
_________________
Chris Lucker
Red Bellies, Bigsbys and a lot of other guitars.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post Posted 26 Mar 2017 3:48 am     .. Reply with quote

Hi Chris

Those rollers will fit just fine after the gold is removed as anodizing is almost like a stain and really has little if any thickness. That apparently was done after this guitar was made by lord knows who. In fact it buffs right off with not too much effort.
_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Mike Scaggs


From:
Nashville, TN
Post Posted 26 Mar 2017 3:49 am     Reply with quote

Herb Steiner wrote:
I kinda like the gold, Mike. Wink


Hate it LOL - besides, it all so rough in person I could never keep it on there. I think I'm going to do her up in a blue/black like this pic...




_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Chris Lucker


From:
Los Angeles, California USA
Post Posted 26 Mar 2017 10:36 am     Reply with quote

Anodizing is not like s stain. A stain you could remove with a solvent and maintain material thickness. You are going to need to remove material to remove the anodizing. The buffing wheel you mention will not access the slots in the keyheads.
Count on 0.002" thickness of your gold anodizing in the surface of the Emmons alloy. The sanding or polishing belt will be removing 0.004" from each slot when you add both sides of each slot. Four thousandths is a lot of added slop. That is a piece of 7x tippet material.
_________________
Chris Lucker
Red Bellies, Bigsbys and a lot of other guitars.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post Posted 26 Mar 2017 8:03 pm     Reply with quote

Chris Lucker wrote:
Anodizing is not like s stain. A stain you could remove with a solvent and maintain material thickness. You are going to need to remove material to remove the anodizing. The buffing wheel you mention will not access the slots in the keyheads.
Count on 0.002" thickness of your gold anodizing in the surface of the Emmons alloy. The sanding or polishing belt will be removing 0.004" from each slot when you add both sides of each slot. Four thousandths is a lot of added slop. That is a piece of 7x tippet material.


Thank you for you insight Chis. You are obviously more skilled at this than I am. I guess stain was abad choice of words to describe the anodizing.
_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Chris Lucker


From:
Los Angeles, California USA
Post Posted 26 Mar 2017 8:30 pm     Reply with quote

I have done it before, but have a lathe where I could machine the new rollers to fit.
_________________
Chris Lucker
Red Bellies, Bigsbys and a lot of other guitars.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post Posted 27 Mar 2017 2:29 am     . Reply with quote

Well I got a lot of the small parts cleaned and ready to go yesterday in my Ultrasonic hot tank. Legs were froze up so they are perfect now. I'm going to need a few more bell cranks and some new rods too. Body is headed for the finisher this morning... Now I wait.










_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Jeff Garden


From:
Center Sandwich, New Hampshire, USA
Post Posted 27 Mar 2017 4:47 am     Reply with quote

Looks great, Mike! Those zip-loc bags look like a must to keep everything organized and not find extra parts after it's assembled Smile Two thumbs up for that blue and black color combination.
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post Posted 27 Mar 2017 4:53 am     Reply with quote

Jeff Garden wrote:
Looks great, Mike! Those zip-loc bags look like a must to keep everything organized and not find extra parts after it's assembled Smile Two thumbs up for that blue and black color combination.


Thanks Jeff

Yeah I'm an amateur when it comes to this so the bags help me keep it all straight. My real thing is building/repairing tube amps which is of course dealing with lots of parts as well. Now it will be about 4 weeks before the body comes back (I hate waiting LOL)
_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Henry Matthews


From:
Texarkana, Ark USA
Post Posted 27 Mar 2017 9:16 am     Reply with quote

Wow Mike, you doing a great job, I liked the gold too.
That's going to be one nice guitar.
_________________
Henry Matthews
D-10 1982 Emmons p/p Black
D-10 1975 Emmons p/p Black Woodneck Bolt-on
LTD amp, Nashville 400 amp, Quilter Steelaire amp, Goodrich pedal, BJS bar, Kyser picks, Live steel Strings. No effects, doodads or stomp boxes.
View user's profile Send private message Send e-mail Visit poster's website
john widgren


From:
wilton CT USA
Post Posted 27 Mar 2017 9:18 am     Southbound Reply with quote

Steve Fazio at Southbound did some work for me and I was very happy with the result. I went with poly and was glad I did.

Good luck..looks like a fun project... and when yer done:

OOH BABY!

Best, JW
_________________
John Widgren Steel Guitar Services:
Live performance and recording. Instruments, repairs and lessons.
Authorized Telonics dealer
(203) 762-8951
widcj@hotmail.com
View user's profile Send private message Send e-mail
Mike Scaggs


From:
Nashville, TN
Post Posted 27 Mar 2017 9:28 am     Re: Southbound Reply with quote

john widgren wrote:
Steve Fazio at Southbound did some work for me and I was very happy with the result. I went with poly and was glad I did.

Good luck..looks like a fun project... and when yer done:

OOH BABY!

Best, JW


Yeah ole Steve has quite the operation over there at Southbound. Just came from there and that smell! Love wood-shop smells. 4 weeks and waiting
_________________
Everything affects everythng

Infinity D-10 9x8, 73 Emmons Lacquer/wood neck D10, Telonics TCA-500c & Pedal, NV400, 64 Twin (JBLs) Visit my website www.p2pamps.com
View user's profile Send private message Send e-mail Visit poster's website
Herb Steiner


From:
Spicewood TX 78669
Post Posted 27 Mar 2017 9:46 am     Reply with quote

You're doing all the right stuff, man. The bags and the labeling are a must for OCD'ers. I use the same system when disassembling and reassembling. Makes things so much easier.

That will be one beautiful guitar when finished, Mike. Of this I am sure.
_________________
Herb's Steel Guitar Pages
Texas Steel Guitar Association
Allison String Instruments
My rig: Infinity and Telonics.

Son, we live in a world with walls, and those walls have to be guarded by men with steel guitars. Who's gonna do it? You? You, Lt. Weinberg?
View user's profile Send private message Send e-mail Visit poster's website
Rick Johnson


From:
Wheelwright, Ky USA
Post Posted 27 Mar 2017 10:55 am     Reply with quote

That is a huge undertaking.
You got some skills....

Rick

www.rickjohnsoncabinets.com
View user's profile Send private message Send e-mail Visit poster's website
Roger Rettig


From:
An Englishman in Naples, FL
Post Posted 27 Mar 2017 12:02 pm     Reply with quote

That 'before' picture is scary - what on earth were they thinking?????
_________________
RR
Emmons LG3 D-10, JCH SD-10, Zum Encore


-------------------------
View user's profile Send private message Send e-mail
Tony Prior


From:
Charlotte NC..
Post Posted 27 Mar 2017 12:15 pm     Reply with quote

great stuff, thanks for sharing ! Smile
_________________
<b>Steel Guitar music here >>> http://www.tprior.com/five.htm</b>

Emmons Steels, Fender Telecasters
Pro Tools 8 and Pro Tools 12
View user's profile Send private message Send e-mail Visit poster's website
Bobby Boggs


From:
Upstate SC.
Post Posted 27 Mar 2017 5:49 pm     Reply with quote

Looking good. The gold looked like nasty nicotine stain. As Roger wrote. What were they thinking. Confused
View user's profile Send private message
Tony Glassman


From:
The Great Northwest
Post Posted 27 Mar 2017 6:00 pm     Reply with quote

Use the zip lock bags during rebuilds too.
View user's profile Send private message
