Author Topic:  New Stereo Hollow Body Electric
Scott Walker


From:
Santa Cruz, California
Post Posted 31 Jan 2016 9:21 pm     Reply with quote

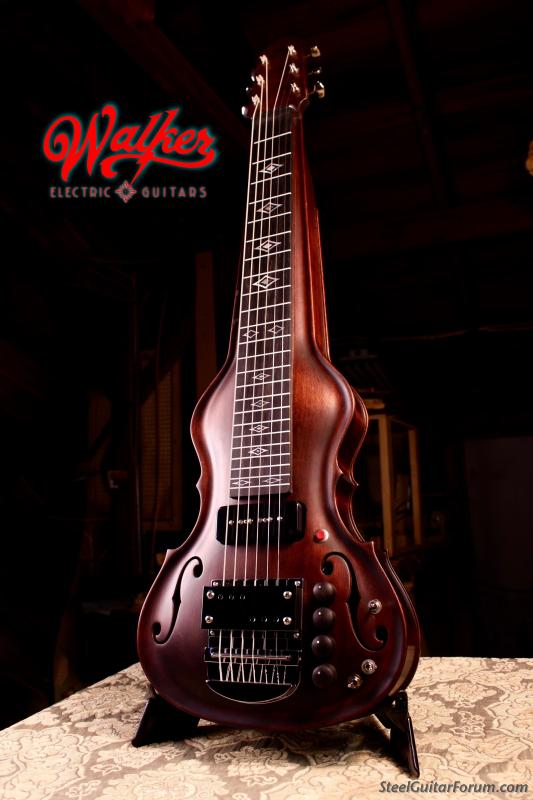

Hey guys, I just finished up the first of the new hollow body electric 6 stringers. Heres a picture and basic information. I hope to get a basic demo video up soon.

24 3/8" scale
Lollar P-90 and String through pickup.


This one is in stereo -
Volume and tone for each pickup, 3 way pickup selector. Stere/Mono switch, and amp selector switch. In stereo mode (using a stereo cable), the amp selector switch swaps neck and bridge pickups form left to right or right to left. In Mono mode,the amp selector switch, sends both pickups to one amp or the other. And of course the stutter switch.



Last edited by Scott Walker on 4 Feb 2016 8:49 am; edited 1 time in total
View user's profile Send private message Send e-mail Visit poster's website
Joe Elk


From:
Ohio, USA
Post Posted 1 Feb 2016 4:36 am     Reply with quote

Oh My!!!! Fantastically beautiful!
Joe Elk
View user's profile Send private message Send e-mail
John D. Carter


From:
Canton, Ohio, USA
Post Posted 1 Feb 2016 7:25 am     Reply with quote

Impressive. What will they go for?
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 7:31 am     Reply with quote

Thanks Guys! I'm not sure exactly the pricing and such yet. When i get all that together ill put it in the New Product section. Thanks again!
View user's profile Send private message Send e-mail Visit poster's website
Todd Clinesmith


From:
Lone Rock Free State Oregon
Post Posted 1 Feb 2016 7:31 am     Reply with quote

Just beautiful Scott.
_________________
face book page:

https://www.facebook.com/pages/Clinesmith-Instruments/1457245817911268?ref=bookmarks
View user's profile Send private message Send e-mail Visit poster's website
Stephen Abruzzo


From:
Philly, PA
Post Posted 1 Feb 2016 8:30 am     Reply with quote

WOW......impressive indeed. The entire body is hollowed out, right? Pics of that would be cool to see too.
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 8:52 am     Reply with quote

Thank you guys!!! Yeah here are a few gut shots of the alder version.











View user's profile Send private message Send e-mail Visit poster's website
Erv Niehaus


From:
Litchfield, MN, USA
Post Posted 1 Feb 2016 9:50 am     Reply with quote

Most impressive!
Can you educate us on the various knobs and switches?
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 9:55 am     Reply with quote

Thanks Erv, yeah heres a copy and paste from above. I hope it makes sense.

Volume and tone for each pickup, 3 way pickup selector. Stere/Mono switch, and amp selector switch. In stereo mode (using a stereo cable), the amp selector switch swaps neck and bridge pickups form left to right or right to left. In Mono mode,the amp selector switch, sends both pickups to one amp or the other. And of course the stutter switch.
View user's profile Send private message Send e-mail Visit poster's website
Stephen Abruzzo


From:
Philly, PA
Post Posted 1 Feb 2016 9:59 am     Reply with quote

Just curious, but how do the Lollar String-thru and P90 sound together? Do you have them in series or parallel?
View user's profile Send private message Send e-mail
Stephen Abruzzo


From:
Philly, PA
Post Posted 1 Feb 2016 10:00 am     Reply with quote

delete

Last edited by Stephen Abruzzo on 1 Feb 2016 11:24 am; edited 1 time in total
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 10:04 am     Reply with quote

So when in stereo mode, they are each just going out to its own channel, in Mono mode they are parallel. They sound good, the P-90 is a Vintage 50's neck, and has quit a bit lower output that the string through, and id like a close match so ill swap that out and see if i can get a closer output. Ill report back on that.
Thanks!!
View user's profile Send private message Send e-mail Visit poster's website
Mark Eaton


From:
Sonoma County in The Great State Of Northern California
Post Posted 1 Feb 2016 11:10 am     Reply with quote

Scott, all of your lap steels have been very impressive - but this one in particular sure takes it above and beyond the old, "it's just a slab of wood with strings and pickup" bit.
_________________
Mark
View user's profile Send private message Send e-mail
Steve Branscom


From:
Pacific NW
Post Posted 1 Feb 2016 12:45 pm     Reply with quote

"I took a block of wood and carved away everything that wasn't a lap steel". I think someone else said that about sculpture but that's what I thought when I saw the interior of the steel. Nicely done.
_________________
Steve
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 12:55 pm     Reply with quote

Right on! Thank you guys!

Here is a quick demo video showing the pickups being switched from left to right and a few possibilities.

https://www.youtube.com/watch?v=VKNC-4kUYJg
View user's profile Send private message Send e-mail Visit poster's website
Michael Devito


From:
Montclair, NJ, USA
Post Posted 1 Feb 2016 3:21 pm     Reply with quote

Very intriguing instrument, and pretty!
MD
View user's profile Send private message Send e-mail
Mike Neer


From:
NJ
Post Posted 1 Feb 2016 7:00 pm     Reply with quote

I've always been a fan of a blended clean signal with a distorted. That is so cool that your guitar features the ability to do that with separate outputs. That could be a game changer.
_________________
'Steelonious' on Bandcamp
mikeneer.com
View user's profile Send private message Send e-mail Visit poster's website
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 7:04 pm     Reply with quote

Right on! Thank you guys!

Yeah Mike it is certainly fun! I did a batch of guitars like this with the stereo wiring, and thought i should try this with a lap. Something about the "neck" pickup overdrive and the bridge pickup clean, and the ability to swap them around with a switch on the guitar. Super fun!
View user's profile Send private message Send e-mail Visit poster's website
Rick Barnhart


From:
Arizona, USA
Post Posted 1 Feb 2016 7:11 pm     Reply with quote

That's some seriously impressive work, Scott.
_________________
Clinesmith consoles D-8/6 & D-8, Pettingill Teardrop, Pettingill P8 Deluxe, BJS & Zirconia
View user's profile Send private message Send e-mail MSN Messenger
Tom Pettingill


From:
California, USA (deceased)
Post Posted 1 Feb 2016 9:08 pm     Reply with quote

Nicely done Scott! Its a neat take on the viola / violin shape. What program do you use to create the 3D model?
_________________
Some misc pics of my hand crafted steels
Follow me on Facebook here
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 1 Feb 2016 9:39 pm     Reply with quote

Thanks! Rhino.
View user's profile Send private message Send e-mail Visit poster's website
Doug Clark


From:
Maine, USA
Post Posted 2 Feb 2016 8:26 pm     Reply with quote

Sounds as good as it looks. Your playing also left me saying "I wish I could do that." Cool
View user's profile Send private message Send e-mail
Jim Pitman


From:
Waterbury Ctr. VT 05677 USA
Post Posted 3 Feb 2016 9:05 am     Reply with quote

Very impressive Scott. That's a great job of selecting wood with grain orientation to match the shape.
I assume the body top is comprised of two thick pieces with a seam down the middle, bookmatched?
The back definately looks bookmatched.
I've often dreamed about embedding a knee lever or two in a lap steel and that build approach looks like it could be done quite easiy (screw rather than glue on the back).
With the talk about Rhino etc, am I correct to conclude this was carved on a CNC machine?
The now defunct Rigel Mandolin company carved their instruments on a CNC machine with great results. This allowed them to mass produce some high quality arched top instruments, and thus offer them at a somewhat reasonable price (maybe everyone does this now). They went out of business when the partners couldn't agree on money issues, not necessarily due to profitability.
I realize this is an electric instrument but I've always wanted to make an acoustic lap steel using the violin shape/build approach.
View user's profile Send private message Send e-mail
Jamie Mitchell


From:
Nashville, TN
Post Posted 3 Feb 2016 9:22 pm     Reply with quote

Scott Walker wrote:
So when in stereo mode, they are each just going out to its own channel, in Mono mode they are parallel. They sound good, the P-90 is a Vintage 50's neck, and has quit a bit lower output that the string through, and id like a close match so ill swap that out and see if i can get a closer output. Ill report back on that.
Thanks!!


half the strings are out of phase when used together, yeah? or did you get around that somehow?

j
View user's profile Send private message Send e-mail
Scott Walker


From:
Santa Cruz, California
Post Posted 4 Feb 2016 8:21 am     Reply with quote

The Lollar String-Through pickup IS 1/2 out of phase when used with another pickup, in MONO mode. But in stereo mode, each one is routed through its own channel into separate amps and all in phase. Thats the only way I've found around it.
View user's profile Send private message Send e-mail Visit poster's website
