Author Topic:  Homemade Pac-a-Seat
Scott Duckworth


From:
Etowah Tennessee
Post Posted 11 May 2013 6:17 am     Reply with quote

Here's my idea to build a pac-a-seat. Comments welcome.


_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Jack Stoner


From:
Inverness, Fl, Formerly KC, MO
Post Posted 11 May 2013 7:05 am     Reply with quote

I've built about a dozen seats. I found 2" foam isn't enough, even the heavy green "superfoam". The last one I built (last year) I used heavy weight (green) 3" foam mounted on a 3/4" plywood lid.

The legs I used were from a walker that I bought at a good will store and cut down to size, as I have no way of bending aluminum pipe. I have used 3/4" conduit that was cut (mitered) and welded to make the U shaped legs.

I also have backs on my seats, I wouldn't have or build one without it anymore. Boat seat hinges work good for steel seat backs (I think what one of the steel seat companies use).
_________________
R.O.P.E. Member
View user's profile Send private message Send e-mail Visit poster's website
Dale Rottacker


From:
Washington, USA
Post Posted 11 May 2013 7:20 am     Reply with quote

Jack Stoner wrote:
I've built about a dozen seats. I found 2" foam isn't enough, even the heavy green "superfoam". The last one I built (last year) I used heavy weight (green) 3" foam mounted on a 3/4" plywood lid.

The legs I used were from a walker that I bought at a good will store and cut down to size, as I have no way of bending aluminum pipe. I have used 3/4" conduit that was cut (mitered) and welded to make the U shaped legs.

I also have backs on my seats, I wouldn't have or build one without it anymore. Boat seat hinges work good for steel seat backs (I think what one of the steel seat companies use).


Jack, I've learned a couple of things from you in the last couple of days...First I was looking at audio interface for recording, or attempting to record, and found, right on the first page a comment you made on another forum, where they compared Focusrite to Line6...I got the Focusrite 2i4, thanks...then I look at this thread and see what you said about foam...I have an OLD Cush Seat I've had for maybe 25 years, and my big Hiddy Hoe is wearing it out...There never has seemed to be enough, or dense enough padding on it, and rather then buy a new seat or try and build one, (BTW, Scott your plans look really nice, I'd love to know how you made the drawing) I thought about reupholstering it, and wondered if about using a really dense memory foam...Any thoughts on that?

Dale
_________________
Black n Gray, Mullen D-10 8x7, Blue Sho-Bud Pro 3 Custom 8x6, Black Sho-Bud Pro 3 Custom 8x4, Sho-Bud Maverick 3x1, Fender 400, Fender Twin, Peavey Session 400, Peavey Session 500
View user's profile Send private message Send e-mail
Dick Sexton


From:
Greenville, Ohio
Post Posted 11 May 2013 8:16 am     22" High 12" Front to Back Reply with quote

Scott, I would think that 12" front to back(your legs will be even closer then that because of the floor flanges), would lend itself to being pretty unstable. I have two seats, legs are 10 inches center to center, front to back. I would think you would want that as a minimum for leg spacing. I've seen guys roll off backwards, and it ain't a pretty sight. Just saying. I do like the idea of doing it yourself. Nice drawings!
View user's profile Send private message Send e-mail Visit poster's website
Scott Duckworth


From:
Etowah Tennessee
Post Posted 11 May 2013 9:05 am     Reply with quote

Couple more thoughts.... as for the foam, I was thinking about using heavy weight carpet pad, stacked to get the 2". And for the legs, I may go 3/4", with the pipe flanges right in the corners. And it wouldn't be a problem to go 14" front to back.
_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Jack Stoner


From:
Inverness, Fl, Formerly KC, MO
Post Posted 11 May 2013 9:26 am     Reply with quote

I haven't tried memory foam.

The last one I built, I used 3" Lux foam from Foam Factory www.foambymail.com

Quote:
Lux Foam - High Quality
Firm foam for regular or heavy use. Lux Foam-HQ is a high quality foam suggested for seats, chairs, cushions, benches and mattresses. It has a typical life of 16 years.
(2.8LB /ft3 density with a 55LB ILD)

_________________
R.O.P.E. Member
View user's profile Send private message Send e-mail Visit poster's website
Bill Ford


From:
Graniteville SC Aiken
Post Posted 11 May 2013 10:10 am     Reply with quote

Scott,

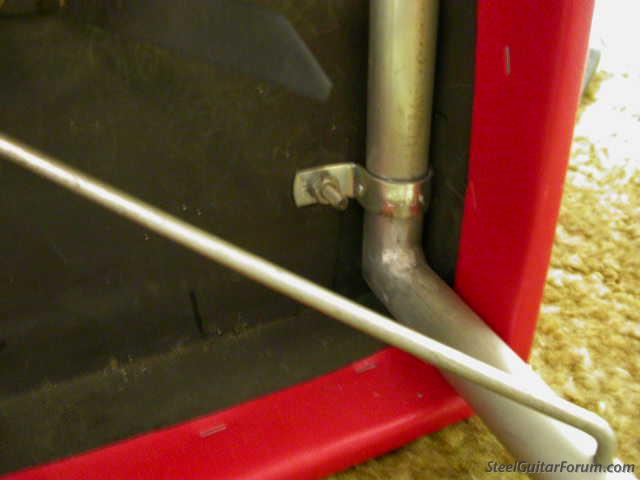

This is the way I did the legs..cut 45deg, and welded,also how I did the backrest, as Jack said, a lifesaver.

BF




_________________
Bill Ford S12 CLR, S12 MSA,The Universal Misc amps&toys Sharp Covers
Steeling for Jesus now!!!
View user's profile Send private message Send e-mail
Pete Nicholls


From:
Centerville, Georgia, USA
Post Posted 11 May 2013 10:32 am     Reply with quote

For the foam, you should investigate seat cushions for pilots. That's what I use for my home made seat and it works as good as the best, and better than the rest! I don't remember all the details from when I investigated the foam for pilot seat cushions, but do a google search and I'm sure you'll find all the info that I did about a year ago.

Cheers,
_________________
Pedal Master SD-10
Justice SD-10
2ea Roland Cube 80-XL in parallel
2 Stratocaster Six String Guitars (one for sale)
Yamaha Bass Guitar
Korg PA-500 Arranger (for sale)
Ham Call: N4BHB
View user's profile Send private message Send e-mail Visit poster's website
Scott Duckworth


From:
Etowah Tennessee
Post Posted 11 May 2013 11:08 am     Reply with quote

Thanks for the tips guys. Pete, thanks for the tip on the pilot cushion. I didn't find any posts about your seat, so I'll just ask here, does the cushion just sit on your box or what ever?

Also, what is the "normal" front to back dimension of a steels seat?
_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Pete Nicholls


From:
Centerville, Georgia, USA
Post Posted 11 May 2013 11:25 am     Reply with quote

Scott Duckworth wrote:
Thanks for the tips guys. does the cushion just sit on your box or what ever?


I just used the foam for the pilot's seat. I used the 4" foam and it is holding up real well, and very comfortable. If you don't find it, let me know and I'll see if I can re-incarnate it!

pete
_________________
Pedal Master SD-10
Justice SD-10
2ea Roland Cube 80-XL in parallel
2 Stratocaster Six String Guitars (one for sale)
Yamaha Bass Guitar
Korg PA-500 Arranger (for sale)
Ham Call: N4BHB


Last edited by Pete Nicholls on 11 May 2013 11:30 am; edited 1 time in total
View user's profile Send private message Send e-mail Visit poster's website
Pete Nicholls


From:
Centerville, Georgia, USA
Post Posted 11 May 2013 11:30 am     Found the info on the pilot's foam Reply with quote

http://www.aviationsupplyonline.com/custom.em?pid=548924

It comes in different densities, see the table below. Mine is 4 inches thick, but don't know the configuration. Prices are kinda high!

http://www.aviationsupplyonline.com/category_browse.em?category_id=244006

Type Texture Application
CF-NT Extra Soft Seats for infants, cover for stiffer material, bedding applications
CF-40 Very Soft Seats for children, cover for stiffer material
CF-42 Soft Seats for 115 lb. person 3"-4" seat pad
CF-45 Firm Seats for 170 lb. person 3"-4" seat pad
CF-47 Very Firm Seats for 200+ lb. person, or seat in hot-humid environment for 170 lb. person.
* This table should be used only for reference and does not represent all applications possible. For more detailed material information, refer to E-A-Rís Technical Data Sheet TDS-13 or contact the Applications Engineering Department.

You may be interested in reading this pdf document:

http://www.earsc.com/pdfs/engineering/Seating.pdf

I should add that the home=made seat I have was given to me, but was told that the foam was designed for a pilot's seat. As it was already assembled, I don't know what the laminate construction is, whether it is 3 + 1, or 2 + 2, but it is 4"
_________________
Pedal Master SD-10
Justice SD-10
2ea Roland Cube 80-XL in parallel
2 Stratocaster Six String Guitars (one for sale)
Yamaha Bass Guitar
Korg PA-500 Arranger (for sale)
Ham Call: N4BHB
View user's profile Send private message Send e-mail Visit poster's website
Scott Duckworth


From:
Etowah Tennessee
Post Posted 11 May 2013 11:53 am     Reply with quote

Thanks Pete. I was looking at actual cushions, not the foam.... Whoa!
_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Sonny Jenkins


From:
New Braunfels, Tx. 78130
Post Posted 11 May 2013 3:17 pm     Reply with quote

W.C.Edgar made my seat,,,,don't know if he still makes them or not. He told me he used Motorcycle seat foam,,,had it 10+ years,,,still looks and feels new!!!
View user's profile Send private message Send e-mail
Bobby D. Jones


From:
West Virginia, USA
Post Posted 11 May 2013 6:59 pm     Home made Pack a Seat Reply with quote

A good place to look for good foam is the Health Services and rental facilities. They handle pads and foam for wheel chairs. This has to be good foam when the person may have to spend 16 hours a day on it for months at a time. May be another source to look at. I have a seat from a wheel chair here waiting for one of my steel seats to come home to replace the pad with.
View user's profile Send private message Send e-mail
Scott Duckworth


From:
Etowah Tennessee
Post Posted 12 May 2013 3:13 am     Reply with quote

I agree on the wheelchair seat pad. I used to work in a nursing home. Of course the only problem is, anything tied to healthcare if 4 times actual cost...
_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Bob Hickish


From:
Port Ludlow, Washington, USA
Post Posted 12 May 2013 5:53 am     Reply with quote

this might make a good seat to add to Scottís design

http://shop.sportsmansguide.com/net/cb/wise-low-back-fold-down-boat-seat.aspx?a=196631
View user's profile Send private message
Jack Stoner


From:
Inverness, Fl, Formerly KC, MO
Post Posted 12 May 2013 5:56 am     Reply with quote

The link to the aircraft seat foam looks like the same as what I linked, except probably higher in price because of the specialty application (just like the medical stuff).

I'm 208lbs and the 3" foam holds up for me.

I don't know what Steeler's Choice or SteelSeat uses for their seat material.
_________________
R.O.P.E. Member
View user's profile Send private message Send e-mail Visit poster's website
Johan Jansen


From:
Europe
Post Posted 12 May 2013 9:20 am     Reply with quote

Why not making it 19" ? Gives the possibillity to howl 19" stuff around.... Smile Otherwise, very good concept!
View user's profile Send private message Send e-mail Visit poster's website
Scott Duckworth


From:
Etowah Tennessee
Post Posted 16 May 2013 11:38 am     Reply with quote

I think I have found a seat... a little hard, but functional... Laughing



_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Mike Wheeler


From:
Delaware, Ohio, USA
Post Posted 17 May 2013 6:11 am     Reply with quote

Laughing Laughing Laughing

Even has a "sidecar"! Laughing Laughing
_________________
Best regards,
Mike
View user's profile Send private message Send e-mail
Mule Ferguson


From:
N wilkesboro NC,
Post Posted 17 May 2013 7:59 am     Reply with quote

That would make a nice Dobro.

HeHaw
_________________
Emmons La Grande D10, Zum Encore, Multicord,Marlen S10 1972, Nashville 112, Evans HVP #2, Peavey Profex ll, Martin, Merle Travis D28M Bigsby Neck.
D28 Henderson, Dobro and Tut Bro. Fender Tele, Stelling Stagehorn Banjo
View user's profile Send private message Send e-mail
Gene Jones


From:
Oklahoma City, OK USA
Post Posted 17 May 2013 8:24 am     Reply with quote

Any of the above is better than the original.....an empty beer case on a folding chair. Laughing
_________________
"FROM THEN TIL' NOW"
View user's profile Send private message Send e-mail Visit poster's website
Scott Duckworth


From:
Etowah Tennessee
Post Posted 6 Jun 2013 11:26 am     Reply with quote

Well, got-er-done. Not as nice as "store bought" but functional...



Box is made from 7/16" Avantech. Legs are 3/4" black steel pipe, into floor flanges on the bottom. Cushion is a PFD cushion for a boat from Walmart for $9. Around $100 total.
_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website
Tyler Mechem


From:
South Carolina, USA
Post Posted 7 Jun 2013 12:27 pm     More pictures? Reply with quote

Scott,
Do you have any pictures of the inside and bottom? I'm considering building one and would love to see more of what you did.
View user's profile Send private message Send e-mail
Scott Duckworth


From:
Etowah Tennessee
Post Posted 7 Jun 2013 1:24 pm     Reply with quote

I don't have the inside partitioned yet, but in lew of carpet or some other material, I used the rubber coating spray advertised in TV. It dries completely dry in a day, seals what ever is sprayed, and seems to be pretty scratch resistant. I also sprayed to bottom of the lid, and bottom of the box with it.

I plan to have two - three partitions, according to equipment, and may pad the bottom with some foam. I also have two handles for the sides, but didn't have the right screws to mount them yet.

I may have to adjust the leg height as I just sold my Marlen, and am in process of buying another steel (hopefully tomorrow!)
_________________
GFI Student 3x3, Li'l Izzy, Goodrich L120 clone, Peavey Nashville 112
C6 Rogue lap steel

Amateur Radio Operator NA4IT (Extra)
http://www.qsl.net/na4it
View user's profile Send private message Send e-mail Visit poster's website

All times are GMT - 8 Hours
Jump to:

Our Online Catalog
Strings, CDs, instruction,
steel guitars & accessories

www.SteelGuitarShopper.com

Steel Guitar Music
Instrumental steel guitar CDs for your permanent collection
www.SteelGuitarMusic.com

Jewelry by Mom
beautiful one-of-a-kind
pieces handmade by
Mrs. Lee in California

JewelryByMom.com

Please review our Forum Rules and Policies

The Steel Guitar Forum
148 South Cloverdale Blvd.
Cloverdale, CA 95425 USA

Support This Forum


Batman 4 Sale
Batman & Robin collectibles
Toys, comics & cool stuff

www.batman4sale.biz
HTTP
