Post new topic 54 Fender Profssional Triple Neck 8 String
Reply to topic
Author Topic:  54 Fender Profssional Triple Neck 8 String
Robert Jackson


From:
Pennsylvania, USA
Post Posted 4 Sep 2017 12:48 am     Reply with quote

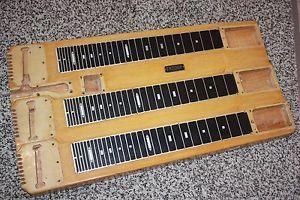

I got ahold of a body and am going to try and restore this to playing Condition.

What tuner pans fit this model? I've been told the stringmaster ones don't fit. Do the new repros fit this?

Any help would be appreciated. I've located one pickup this far, the control plates and bridges.

I need nuts for all three necks, where can I locate these. That guy on eBay doesn't have them
View user's profile Send private message Send e-mail
Jeff Mead


From:
London, England
Post Posted 4 Sep 2017 3:18 am     Re: 54 Fender Profssional Triple Neck 8 String Reply with quote

Robert Jackson wrote:
I got ahold of a body and am going to try and restore this to playing Condition.

What tuner pans fit this model? I've been told the stringmaster ones don't fit. Do the new repros fit this?

Any help would be appreciated. I've located one pickup this far, the control plates and bridges.

I need nuts for all three necks, where can I locate these. That guy on eBay doesn't have them


The good news is that the nuts are actually an integral part of the tuner pan so you won't need those.

That's about it for the good news though. The tuner pans are as rare as hens' teeth and the repros definitely don't fit (they don't even fit all Stringmasters which they are designed for but that's another matter).

The pickups are just as hard to find - in fact parts for these are far more difficult to come by than for Stringmasters (which are hard enough to find).

Unfortunately, about the only thing I can suggest would be to find a way to make a pan and mount regular tuners and a way to fit Stringmaster pickups into the bridge plates Sad When I get home, I'll find some images of a tuner pan someone made for a Stringmaster that might give you ideas.

Other than that, you could be in for a long wait.

Whatever route you go, you'll probably end up spending more than it would have cost to buy an original instrument and, if you do source all the original parts you need, you will actually reduce their value by assembling them into a playable instrument (as I discovered when I built a Stringmaster Quad from parts).

Hopefully, you already have fretboards but if not, at least they are available as repros.


Last edited by Jeff Mead on 4 Sep 2017 3:28 am; edited 4 times in total
View user's profile Send private message Send e-mail
Russell Davis


From:
Fort Worth Texas, USA
Post Posted 4 Sep 2017 3:20 am     Reply with quote

Robert,
On those models the nut and tuner pan are integrated together, no seperate nut. I'll dig through my parts and see what I have for your project. Feel free to email or pm me for info/help.

Russell
View user's profile Send private message Send e-mail
Rick Abbott


From:
Indiana, USA
Post Posted 4 Sep 2017 5:18 am     Reply with quote

I am ignorant of the differences in tuner pans.

Is it possible to buy the re-pro pans and carefully rout the space to fit them? As long as the scale length is accurate, and it isn't done poorly, why couldn't you? Or is the space too big?
_________________
RICK ABBOTT
Sho~Bud D-10 Professional #7962
Gibson Console Grande, Lazy River Wiessenborn
Session 400, Bassman Amp W/Altec 418,
1953 Stromberg-Carlson AU-35
View user's profile Send private message Send e-mail
Bill Sinclair


From:
Hagerstown, Maryland, USA
Post Posted 4 Sep 2017 5:46 am     Reply with quote

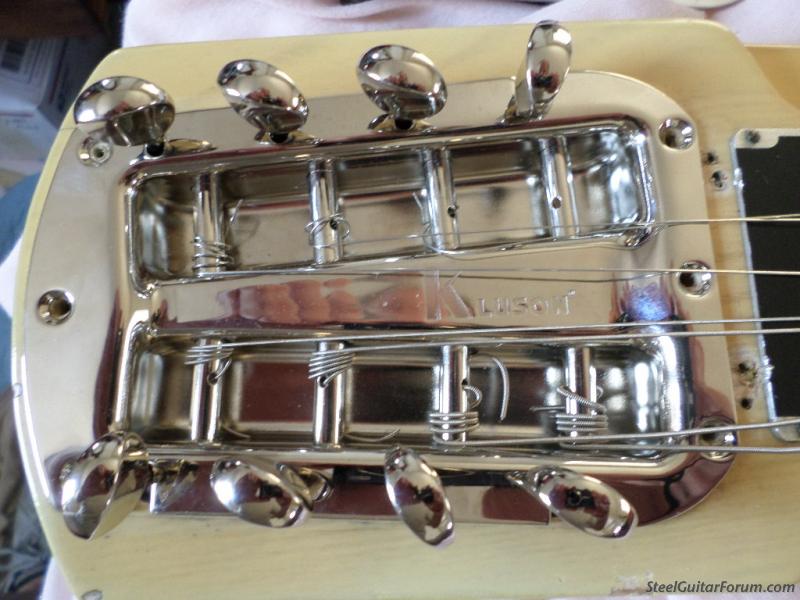

I was able to route the pocket on a long scale Stringmaster neck to fit one of the new Kluson pans with a new set of tuners. Freehand with a dremel, just stayed inside the pan outline I had drawn. The long scale Stringmasters had a lollipop tuner pan similar to the Professional but without the integrated nut. I imagine you could use these pans with a Stringmaster nut and be on your way.




View user's profile Send private message Send e-mail
Jeff Mead


From:
London, England
Post Posted 4 Sep 2017 7:28 am     Reply with quote

Looks like the pan might need to be modified slightly too as there isn't so much wood at the end of the Custom and the pan might hang over the edge?


View user's profile Send private message Send e-mail
Bill Sinclair


From:
Hagerstown, Maryland, USA
Post Posted 4 Sep 2017 8:24 am     Reply with quote

Huh. I think you're right, Jeff. I guess the long scale Stringmaster and Custom lollipop pans are significantly different (besides the nut). Robert, send me your address and I'll send you a Stringmaster pan (no tuners) that has several extra holes drilled into it. You can use it as a pattern to see whether it would be feasible to modify a Stringmaster pan for your guitar and report back to us (with pictures).
View user's profile Send private message Send e-mail
Brad Davis


From:
Texas, USA
Post Posted 4 Sep 2017 9:12 am     Reply with quote

Not sure it does you much good but that ebay guy does have one 6-string pan of this style listed.

http://www.ebay.com/itm/50s-Fender-lap-steel-6-string-Stringmaster-Deluxe-tuning-pegs-machines-tuners-/132208949332

It looks a little rough, wants a lot for it and I'm sure you want 8 strings. Might be useful as a pattern though.
View user's profile Send private message Send e-mail
Jeff Mead


From:
London, England
Post Posted 4 Sep 2017 9:13 am     Reply with quote

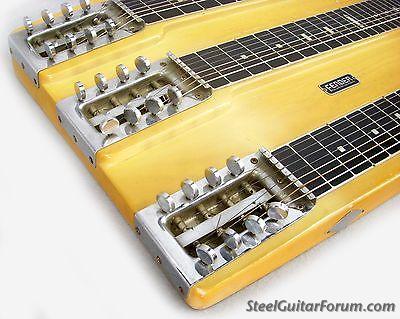

Yeah - the Custom tuner pans are designed to hook over the end of the guitar.

Maybe with a bit of ingenuity the Stringmaster ones might be persuaded to fit.

Your best bet might be to wait and see what Russell or any other kind forum members can come up with in terms of original parts.

Of course, tuner pans from the double or single 8 versions of the trapezoid guitars would work.


View user's profile Send private message Send e-mail
Robert Jackson


From:
Pennsylvania, USA
Post Posted 6 Sep 2017 9:39 pm     Thank You Reply with quote

Thank you for all of the info.... I'll be working on the body starting tomorrow. Got enough to do there while the rest of parts shake out.
View user's profile Send private message Send e-mail
Chris Scruggs


From:
Nashville, Tennessee, USA
Post Posted 8 Sep 2017 10:15 pm     Reply with quote

I would definitely get the correct tuning pans with integrated nuts for this guitar. The stringmasters have much lower action and it will negatively effect the intonation of the fretboards. Plus, you really don't want to put new holes in vintage guitars.
